User Manual for Whirlwind OC BASS Optical Compressor Foot Pedal Click to enlarge the picture
Contents of the user manual for the Whirlwind OC BASS Optical Compressor Foot
- Product category: Effects Pedals Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Effects Pedals
|
User manual for the Whirlwind OC BASS Optical Compressor Foot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

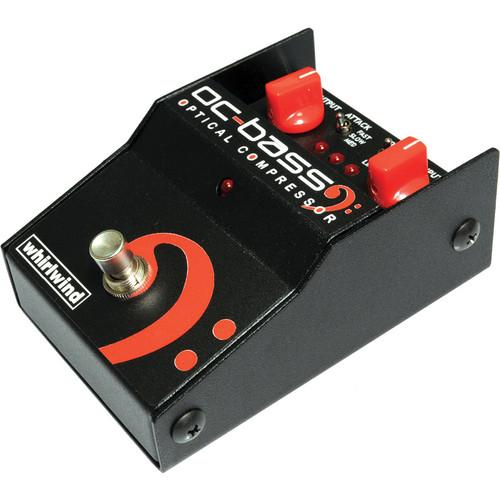

Product description The OC Bass from Whirlwind is a compact, pedal-style optical compressor and limiter specifically designed for use with your electric bass. The pedal can be switched between compressor and limiter modes. While both modes are designed to help your bass sound blend more evenly into the mix during live and studio performances, the limiter mode features a more aggressive gain reduction. The attack switch changes between three pre-defined attack rates, "fast", "medium" and "slow." This adjustable parameter can come in handy to make the attacks in your playing sound more pronounced. The pedal's input control adjusts the gain of the signal going into the compressor or limiter and, therefore, the amount of compression. The output knob adjusts the overall volume of the pedal. - Optical compressor that uses a light and a light detection element to sense changes in signal gain
- Compressor and limiter modes help your bass performances blend into the mix by evening out the louder and softer levels in your playing, smoothing out the dynamic range
- Three pre-defined attack rates - "fast", "medium" and "slow," make the attacks in your playing more pronounced to various degrees. This can be useful to accentuate string attacks when playing quietly or when playing with a drummer to help your performance sound more "locked" with the kick drum
- Input control adjusts amount of gain going into the compressor or limiter and the amount of gain reduction. Output knob adjusts the overall volume of the pedal. Adjust these two controls to find the appropriate amount of volume and signal reduction to make the dynamics in your playing sound smoother and more even
- Gain reduction LEDs display the amount the signal is being attenuated due to compression or limiting in dBs
In the Box Whirlwind OC BASS Optical Compressor Foot Pedal PS18EFX Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind OC BASS Optical Compressor Foot Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind OC BASS Specs | Switch Type | Foot-switch | | Inputs/Outputs | 1x 1/4" TS input
1x 1/4" TS output | | LED | Yes, 4 | | Frequency Response | 20 Hz - 20 KHz | | Power Requirements | 18 V @ 100 mA,
Whirlwind PS18EFX power supply included | | Maximum Input Level | +14 dBV | | Maximum Output Level | 8.9 dBV @ 1% THD | | Dimensions (W x D x H) | 3.5 x 5 x 2" (8.9 x 12.7 x 5.08 cm) | | Weight | 1.4 lb (.64 kg) | | | | Package Weight | 1.818 lb | | Box Dimensions (LxWxH) | 7.25 x 5.0 x 3.0" |
