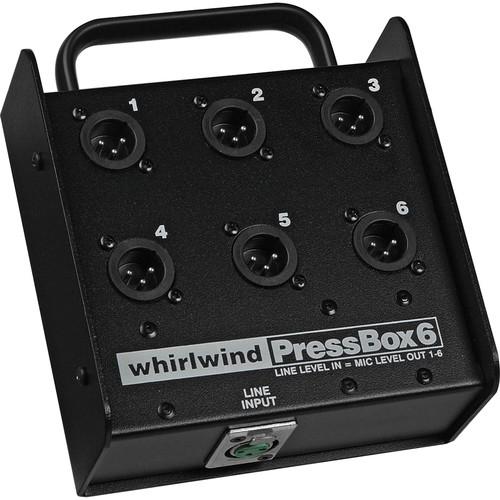

User Manual for Whirlwind PB06 Passive Press Box with 1 Line in to 6 Mic out Click to enlarge the picture
Contents of the user manual for the Whirlwind PB06 Passive Press Box with
- Product category: Press Boxes Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Press Boxes
|
User manual for the Whirlwind PB06 Passive Press Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind PB06 is a passive press box microphone output expander, housed in a rugged steel case, for Whirlwind's PRESSPOWER 2 and PRESSMITE active press box line outputs, or any other live press conference or forum application where a line level feed is available. It is intended for broadcast and commercial conferencing applications.The PB06 distributes one line level input to multiple mic level outputs. Each output is transformer-isolated, providing superior interchannel isolation and ground lifting, helping to eliminate noise problems. Whirlwind's own TRSP-2 transformers are used throughout. - 1 to 6 line in/microphone out passive press box expander for broadcast and business conference applications
- Rugged, all-steel housing with convenient carrying handle
- Transformer isolation and grounding for each output eliminate interchannel and RF noise
UPC: 692465003889 In the Box Whirlwind PB06 Passive Press Box with 1 Line in to 6 Mic out Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind PB06 Passive Press Box with 1 Line in to 6 Mic out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind PB06 Specs | Input Impedance | 2 kOhms | | Output Impedance | 150 Ohms | | Operating Level | 0 dB input = -43 dB output | | Isolation | 65 dB (channel-to-channel) | | Dimensions | 6.75 x 5.5 x 2.0" (17.15 x 13.97 x 5.08 cm) | | Weight | 3.9 lb (1.77 kg) | | | | Package Weight | 3.805 lb | | Box Dimensions (LxWxH) | 10.35 x 6.5 x 4.65" |
