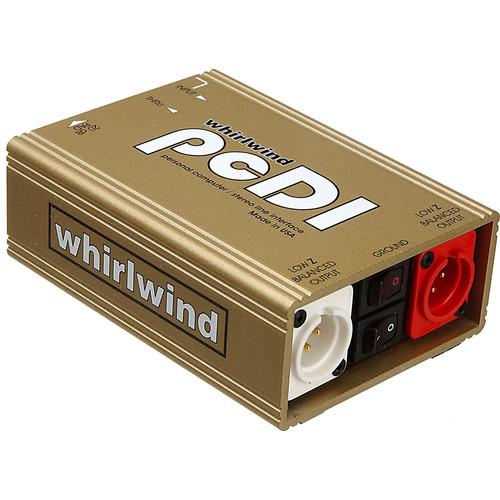

Product description The pcDI from Whirlwind is a dual channel direct box with RCA phono, 1/8" TRS stereo mini, and 1/4" TS connectors, designed to interface unbalanced stereo line sources with professional, balanced low impedance equipment. Output is via corresponding color coded XLRs. The pcDI features a ground lift switch per channel to help eliminate hum, a 20 dB pad switch for connecting "hot" signals and is perfect for interfacing the outputs of CD players, computer sound cards, tape decks, etc. A stereo/mono switch allows for stereo operation or for combining both inputs into a mono signal that is sent to both outputs. - Color coded RCA phono In/Thru jacks
- Two 1/4" TS unbalanced line inputs
- Color coded XLR output jacks
- Per channel ground lift switches to help eliminate hum and buzz
- 20 dB pad for connecting "hot" input signals
- Stereo/mono switch for stereo operation or for combining both inputs into a mono signal sent to both outputs
UPC: 692465011983 In the Box Whirlwind pcDI - Stereo Line Interface Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind pcDI - Stereo Line Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind PCDI Specs | Input Connections | 1 x 1/8" TRS stereo mini
2 x RCA phono
2 x 1/4" TS | | Output Connectors | 2 x XLR
2 x 1/4" RCA phono Thru | | Output Level | 20 dB below input level pad out
40 dB below input level pad in | | Impedance Ratio | 133:1, input to output per channel | | Frequency Response | 20 Hz to 20 kHz, +/-1.0 dB | | Power | Passive | | Specialties | Uses Whirlwind's TRHL-M transformer with metal shield | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.1 x 6.9 x 1.95" |
