User Manual for Whirlwind PL-PM1RJK2 Power Meter for Existing Distribution System with Remote Monitoring Click to enlarge the picture
Contents of the user manual for the Whirlwind PL-PM1RJK2 Power Meter for Existing
- Product category: Power Distributors & Conditioners Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Power Distributors & Conditioners
|
User manual for the Whirlwind PL-PM1RJK2 Power Meter for Existing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

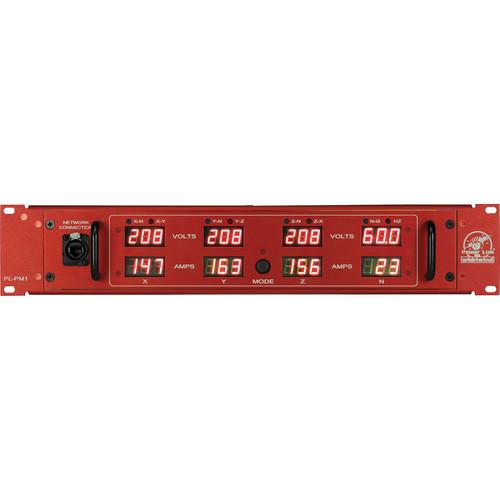

Product description The PL-PM1RJK2 Power Meter from Whirlwind is a power meter kit for an already constructed and wired powered distribution system The unit is intended to monitor 3 phase Y power with three 120 Volt AC legs or single phase with two 120 Volt AC legs. It is intended to monitor the line side voltage and load current of both portable AC distribution and permanent power distribution systems. It measures the frequency of the AC line voltage from 47 Hz to 63 Hz with an accuracy of 0.1Hz. The kit is equipped with remote monitoring capability built in. The PL-PM1RJK2 has a Display Parameters menu that allows for display color changes and the setting of alerts to indicate out of range voltage readings. The meter reading refresh rate can also be changed on this screen. The system has a watchdog timer such that if measurements stop being displayed, the system will automatically reset itself and resume measurement. The PL-PM1RJK2 model provides an Ethernet connectivity for network monitoring of power distribution parameters in real time. It provides monitoring from any location or multiple locations simultaneously by accessing the Ethernet LAN that the meter is connected to. In the Box Whirlwind PL-PM1RJK2 Power Meter for Existing Distribution System with Remote Monitoring Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind PL-PM1RJK2 Power Meter for Existing Distribution System with Remote Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind PL-PM1RJK2 Specs | Connectors | 1 x RJ45, network connection
1 x 5-pin Wago, voltage sensing input
1 x 8-pin Wago, current sensing input | | Voltage Range | 108 - 229 VAC | | Power Draw | 10 W maximum | | Frequency Range | 40 to 100 Hz | | Frequency Measurement | 47 to 63 Hz (0.1 Hz accuracy) | | Maximum Altitude | 1.2 mi (2000 m) | | Temperature Range | 5 to 40°C (41 to 104°F) | | Relative Humidity | 80% for temperatures up to 31°C (87°F) decreasing linearly to 50% relative humidity to 40°C (104°F) | | Mains Voltage | Fluctuations up to ±10% of the nominal voltage | | Dimensions | 19.0 x 3.5 x 8.0" (48.0 x 8.8 x 20.0 cm) |
