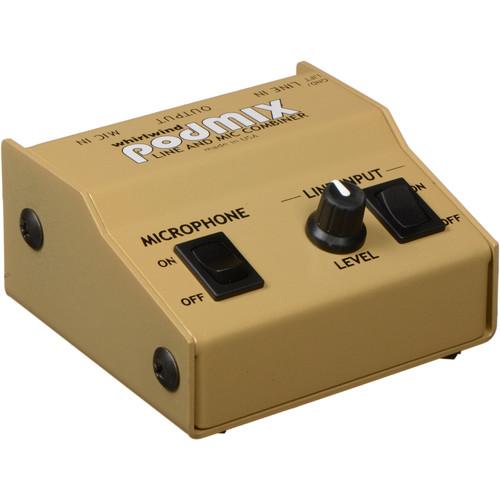

User Manual for Whirlwind podMIX Passive Mixer Click to enlarge the picture
Contents of the user manual for the Whirlwind podMIX Passive Mixer
- Product category: Analog Utility Mixers Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Analog Utility Mixers
|
User manual for the Whirlwind podMIX Passive Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind podMIX Passive Mixer is designed to combine a microphone and a stereo line-level audio source to a single input channel. It's suitable for mingling the signals of a microphone and a portable media player, for example.
Two mute switches allow you to switch off the mic and line-level signal respectively, while a level knob lets you blend the volume of the line-level signal with your incoming microphone. Microphones can plug into the XLR input jack. Line level sources have their choice: the 3.5mm stereo input, or two RCA inputs. All of it funnels to an XLR output.
Phantom power can pass through the device, which is passive in construction, and requires no power to run. A ground lift switch is on hand to minimize the hum and noise associated with ground loops. - Key Features at a Glance
-
- A variable attenuator on the line input allows level matching and mixing between the music source and the microphone
- Mute switches on both the mic and line inputs provide convenient on/off control over each signal
- Works with both dynamic and condenser microphones and passes phantom power from the output to the mic input
- Features a ground lift switch on the line input to help eliminate hum and buzz
- Can also be used as a DI box
UPC: 692465018524 In the Box Whirlwind podMIX Passive Mixer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind podMIX Passive Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind podMIX Specs | Controls | Microphone switch
Line input switch
Line level knob | | Connections | 1 x 3.5mm line input
2 x RCA inputs
1 x XLR input
1 x XLR output | | Phantom Power | Passes through from output | | Power Requirements | None, passive | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 2.0" |
