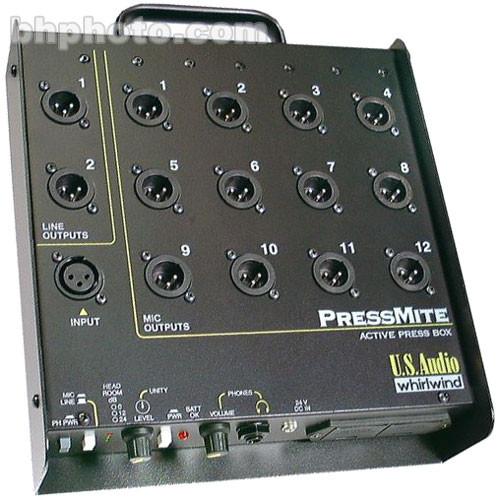

User Manual for Whirlwind PRESSMITE Active Press Box with 1 Mic Line in to 12 Mic 2 Line Out Click to enlarge the picture
Contents of the user manual for the Whirlwind PRESSMITE Active Press Box with
- Product category: Press Boxes Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Press Boxes
|
User manual for the Whirlwind PRESSMITE Active Press Box with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The Whirlwind PRESSMITE is a professional, compact active press feed box with the capacity of distributing 12 clean mic level signals and two line level signals, and featuring high isolation between outputs. It provides 60 dB of gain adjustment on input, which accepts mic or line level signals.The PRESSMITE features a built-in headphone amp, and is powered by a pair of standard 9V batteries that typically provide more than eight hours of continuous operation. A Battery OK LED is provided for monitoring. In mic input mode, 18V phantom power is available, and the three-segment LED headroom display enables quick level adjustment.The PRESSMITE is a rugged, useful tool designed to withstand the rigors and hectic environment of press conferences and other public broadcast events. - Active 1-in/12-out press box with phantom power and high isolation between outputs
- Rugged steel metal enclosure
- Headphone amp with separate volume control
- Dual 9V battery or DC power supply operation for enhanced portability
- Expandable through line-out connection for a total of 48 mic outputs
- Three-segment headroom monitoring LED display
UPC: 692465004183 In the Box Whirlwind PRESSMITE Active Press Box with 1 Mic/Line in to 12 Mic/2 Line Out Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind PRESSMITE Active Press Box with 1 Mic Line in to 12 Mic 2 Line Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind PRESSMITE Specs | Frequency Response | 100 Hz to 6 kHz, +/- 0.3 dB
15 Hz to 20 kHz, +/- 3.0 dB | | Input Impedance | Mic: 1.5 kOhms
Line: 40 kOhms | | Maximum Input Level | Mic: -14 dBu
Line: +30 dBu | | Output Impedance | Mic: 150 Ohms
Line: 600 Ohms | | Maximum Output Level | Mic: -17 dBu
Line: +12 dBu | | THD + N | 0.063% at 1 kHz (unity gain) | | Isolation | Mic:
> 107 dB (non-vertically adjacent XLR outputs)
> 60 dB (vertically adjacent XLR outputs)
Line:
> 77 dB between both outputs | | Power Requirements | 2 x 9 V batteries
24 VDC adapter | | Dimensions | 9.25 x 11.38 x 2.63" (23.5 x 28.9 x 6.68 cm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 14.331 x 14.252 x 8.661" |
