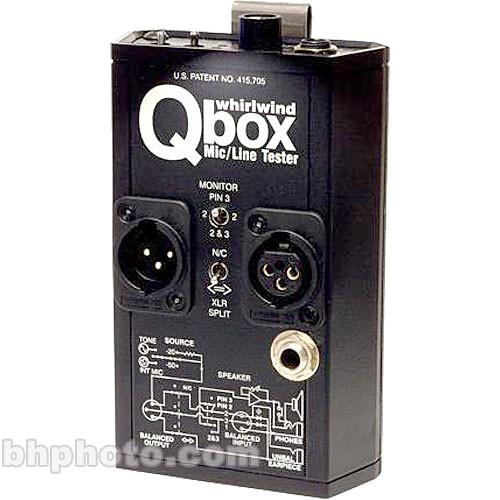

Product description The Whirlwind Qbox is an in-line, 9V battery-operated beltpack audio testing utility device, designed for live sound, studio maintenance, and installation applications. The Whirlwind Qbox includes a microphone, a speaker, a test tone generator, outputs for standard headphones, a TT bantam jack, a 1/4" jack for a line-in or a 2k Ohm(telephone) earpiece out, along with voltage presence LEDs for confirming phantom or intercom power. The Whirlwind Qbox is suitable for multiple purposes including hands-free intercom use when connected to another Qbox. It provides a mic- or line-level tone for activating a signal path, or identifying a specific cable in a pile of cable ends, and can also be used to monitor a standard 3-wire intercom feed of talkback from the main audio console. - The SOURCE section of the Qbox lets you send a tone or the signal from the built-in condenser mic at mic or line levels
- The SPEAKER volume control lets you confirm incoming signals at mic or line level
- Built-in amplifier provides up to 60dB of gain
- Attenuator switch selects output level to XLR or 1/4 in. outputs
- Tone/Internal Switch selects source to be provided to XLR and 1/4 in. outputs
- Volume control adjusts level sent to speaker or headphone output
- Stereo Phone Jack allows the use of stereo or mono headphones while disconnecting the internal speaker
UPC: 692465004220 In the Box Whirlwind QBOX - Audio Line Tester/Cable Tester/Test Tone Generator 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind QBOX - Audio Line Tester Cable Tester Test Tone Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind QBOX Specs | Input Connections | 1x XLR F
1x TT Bantam | | Output Connections | 1x XLR - male
1x 1/4" unbalanced
1x 1/4" Stereo Phone Jack | | Input Impedance | 40 kOhms | | Output Impedance | 950 or 20 kOhms | | Output Level | 60dB of gain | | THD & Noise | Not specified by manufacturer | | Power and Battery | 9V 100mA Battery Eliminator | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.645 lb | | Box Dimensions (LxWxH) | 6.2 x 3.6 x 2.15" |
