User Manual for Whirlwind SPC83PJT - 8-Channel Line Splitter with 1 Direct and 2 Isolated Outputs and Phantom Power Connection Click to enlarge the picture
Contents of the user manual for the Whirlwind SPC83PJT - 8-Channel Line Splitter
- Product category: Splitters & Combiners Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Splitters & Combiners
|
User manual for the Whirlwind SPC83PJT - 8-Channel Line Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

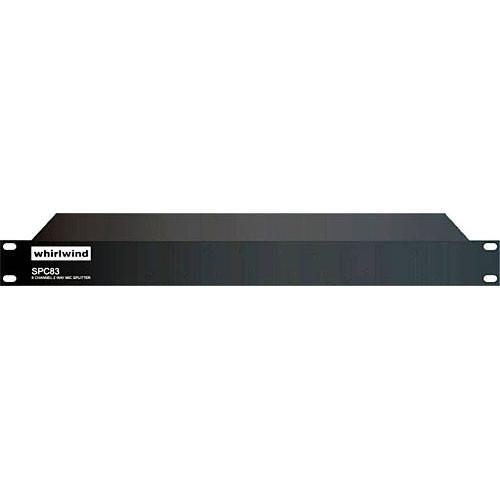

Product description The SPC83PJT from Whirlwind is a passive, rack mountable line splitter designed for installed applications. The sleek, 1RU unit allows you to input eight line-level channels and provides one direct and two transformer-isolated outputs for each channel. The unit uses high-quality Jensen transformers for clear, precise audio.
All I/O connections are made via removable Phoenix-style connectors for making balanced connections. The splitter's outputs will not pass phantom power, so rear terminal connections are provided for the optional DCSP1 external phantom power supply. A series of ground-lift DIP-switches is provided on the back panel for eliminating hum caused by ground loops. Note: If your application requires phantom power, the DCSP1 must be purchased separately to supply phantom power to the unit. - Rack mountable line-level splitter
- Each of the eight inputs has one direct and two isolated outputs
- Isolated outputs use high-quality Jensen transformers
- Removable phoenix connectors for all I/Os
- Rear terminal connections allow you to connect the DCSP1 for phantom power
- Rear-panel ground-lift DIP-switches help reduce hum caused by ground loops
In the Box Whirlwind SPC83PJT - 8-Channel Line Splitter with 1 Direct and 2 Isolated Outputs and Phantom Power Connection 3-Year Limited Warranty Table of Contents
|
