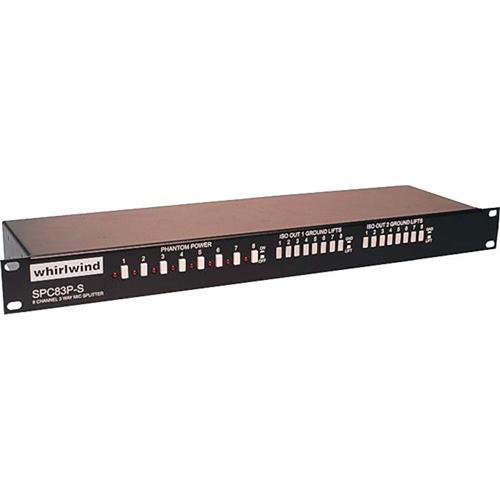

User Manual for Whirlwind SPC83PSJT - 8-Channel Mic Splitter with Jensen Transformers Click to enlarge the picture
Contents of the user manual for the Whirlwind SPC83PSJT - 8-Channel Mic Splitter
- Product category: Splitters & Combiners Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Splitters & Combiners
|
User manual for the Whirlwind SPC83PSJT - 8-Channel Mic Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description The SPC83PSJT from Whirlwind is a passive, rack mountable mic splitter designed for installed applications. The sleek, 1RU unit allows you to input eight mic channels and provides one direct and two Jensen transformer-isolated outputs for each channel. The unit uses high-quality Whirlwind transformers for great audio quality.
All I/O connections are made via removable Phoenix-style connectors for making balanced connections. The isolated outputs will not pass phantom power, so the direct output must be connected to the source of phantom power if there is no power provided at the splitter. A series of ground-lift DIP-switches is provided on the back panel for eliminating hum caused by ground loops. Phantom power selectors and ground lift switches are provided on the front panel for easy accessibility. - Rack mountable mic-level splitter
- Each of the eight inputs has one direct and two isolated outputs
- Isolated outputs use high-quality Jensen transformers
- Removable phoenix connectors for all I/Os
- Front panel phantom power and ground-lift DIP-switches help reduce hum caused by ground loops
In the Box Whirlwind SPC83PSJT - 8-Channel Mic Splitter with Jensen Transformers 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind SPC83PSJT - 8-Channel Mic Splitter with Jensen Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind SPC83 Specs | Input/Output Interface | 1-direct and 2-isolated outputs for 8 mic inputs | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 5.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
