User Manual for Whirlwind SPC84 Rackmount 8-Channel Audio Splitter Click to enlarge the picture
Contents of the user manual for the Whirlwind SPC84 Rackmount 8-Channel Audio Splitter
- Product category: Splitters & Combiners Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Splitters & Combiners
|
User manual for the Whirlwind SPC84 Rackmount 8-Channel Audio Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

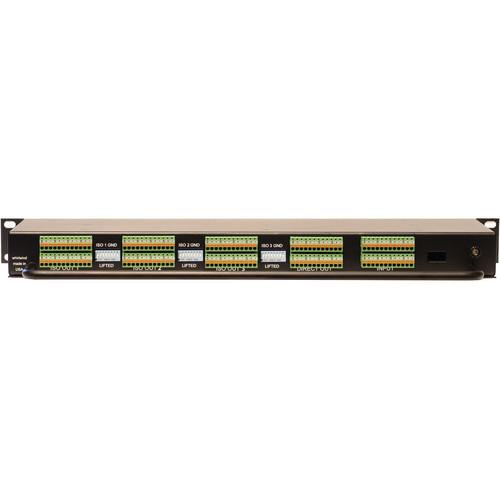

Product description The SPC84 Rackmount 8-Channel Audio Splitter from Whirlwind allows you to split 8 audio signals into multiple outputs. The splitter has a slim 1RU rackmount chassis that fits into a standard 19" rack, ideal for installed applications. Each channel features an input, a direct output, and 3 transformer-isolated outputs. The isolated outputs use premium Lundahl transformers for excellent sonic integrity and purity. The isolated outputs also feature ground-lift switches to reduce hum caused by ground loops. All of the inputs and outputs have pluggable screw type connectors for wide compatibility. - Lets you split 8 audio signals into multiple outputs
- The slim 1RU rackmount chassis fits into any standard 19" equipment rack, ideal for installed applications
- Each channel features an input, a direct output, and 3 transformer-isolated outputs
- The isolated outputs use premium Lundahl transformers for excellent sonic integrity and purity
- Each isolated output has a ground-lift switch to reduce hum caused by ground loops
- All of the inputs and outputs have pluggable screw type connectors for wide compatibility with a variety of devices
In the Box Whirlwind SPC84 Rackmount 8-Channel Audio Splitter 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind SPC84 Rackmount 8-Channel Audio Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind SPC84 Specs | Insertion Loss | < 3dBV (All Outputs at 2k Loads) | | Frequency Response | 20Hz - 20kHz (< 0.1dBV, All Outputs at 2k Loads) | | THD + N | 0.0006% @ 20kHz
0.0006% @ 16kHz
0.0008% @ 10kHz
0.0008% @ 2kHz
0.0011% @ 1kHz
0.0026% @ 200Hz
0.0076% @ 100Hz
0.0258% @ 50Hz
0.122% @ 20Hz Measured at 0dBV, All Outputs at 2k Loads | | Phase Shift | 1.5° @ 20kHz
1.2° @ 16kHz
0.6° @ 10kHz
-0.1° @ 2kHz
-0.2° @ 1kHz
-0.5° @ 200Hz
-0.7° @ 100Hz
-1.1° @ 50Hz
-2.0° @ 20Hz Measured at -30dBV | | CMRR | 120dB @ 60Hz
85dB @ 3kHz | | Input Level | +26dBV @ 1kHz
+16dBV @ 20Hz | | Channel Isolation | 128dB @ 1kHz
115dB @ 20kHz | | Noise | -115dBV Maximum Micro Phonic Noise | | Size | 1RU | | Weight | Not Specified by Manufacturer | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 5.0" |
