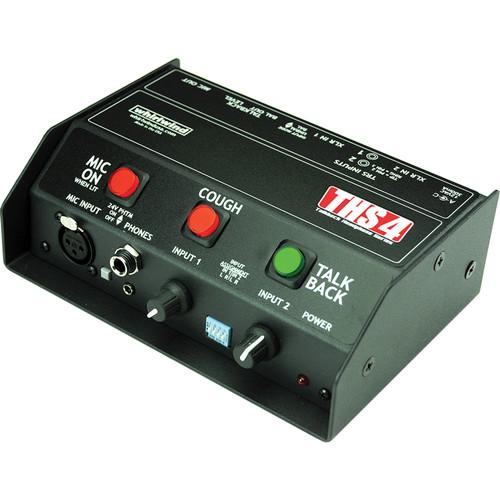

User Manual for Whirlwind THS 4 Talkback Headphone Box and Sports Announcer Console with Individual Input Volume Controls Click to enlarge the picture
Contents of the user manual for the Whirlwind THS 4 Talkback Headphone Box
- Product category: Pads & Mute Switches Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Pads & Mute Switches
|
User manual for the Whirlwind THS 4 Talkback Headphone Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|
Product description Designed for use by sportscasters, the THS 4 Talkback Headphone Box and Sports Announcer Console from Whirlwind features separate main and talkback XLR microphone outputs, with a latching switch that controls the main mic output, and momentary switch for the talkback output, which mutes the main mic output. Additionally, a momentary cough switch can be used to silence the mic for use in its namesake application. The unit can provide 36V phantom power for condenser microphones.
The THS 4's headphone section features 2 inputs, each with an XLR and 1/4" connector, with each input being able to be assigned to left, right, or both ears, and with individual input volume controls and dip switches to route the input signals to each ear. Input signals can be either balanced mono or unbalanced stereo. A rear-panel switch selects the proper mode. - Two line level inputs with individual volume controls and input routing switches
- Two headphone signal inputs can be assigned to either or both ears
- Balanced or unbalanced inputs on XLR or 1/4" TRS jacks
- Passive Mic Out for on-air reliability
- Mic output switching is completely silent
- Active line level Talkback Out with level adjust
- Mic On, Cough and Talkback switches for control
- 1/4" TRS or 3.5mm headphone jacks
- PS12AC1A power adapter included
UPC: 692465024228 In the Box Whirlwind THS 4 Talkback Headphone Box and Sports Announcer Console with Individual Input Volume Controls PS12AC1A Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind THS 4 Talkback Headphone Box and Sports Announcer Console with Individual Input Volume Controls in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind THS 4 Specs | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 11.7 x 7.0 x 3.2" |
