User Manual for Whirlwind THS R Talkback Headphone Box Click to enlarge the picture
Contents of the user manual for the Whirlwind THS R Talkback Headphone Box
- Product category: Pads & Mute Switches Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Pads & Mute Switches
|
User manual for the Whirlwind THS R Talkback Headphone Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

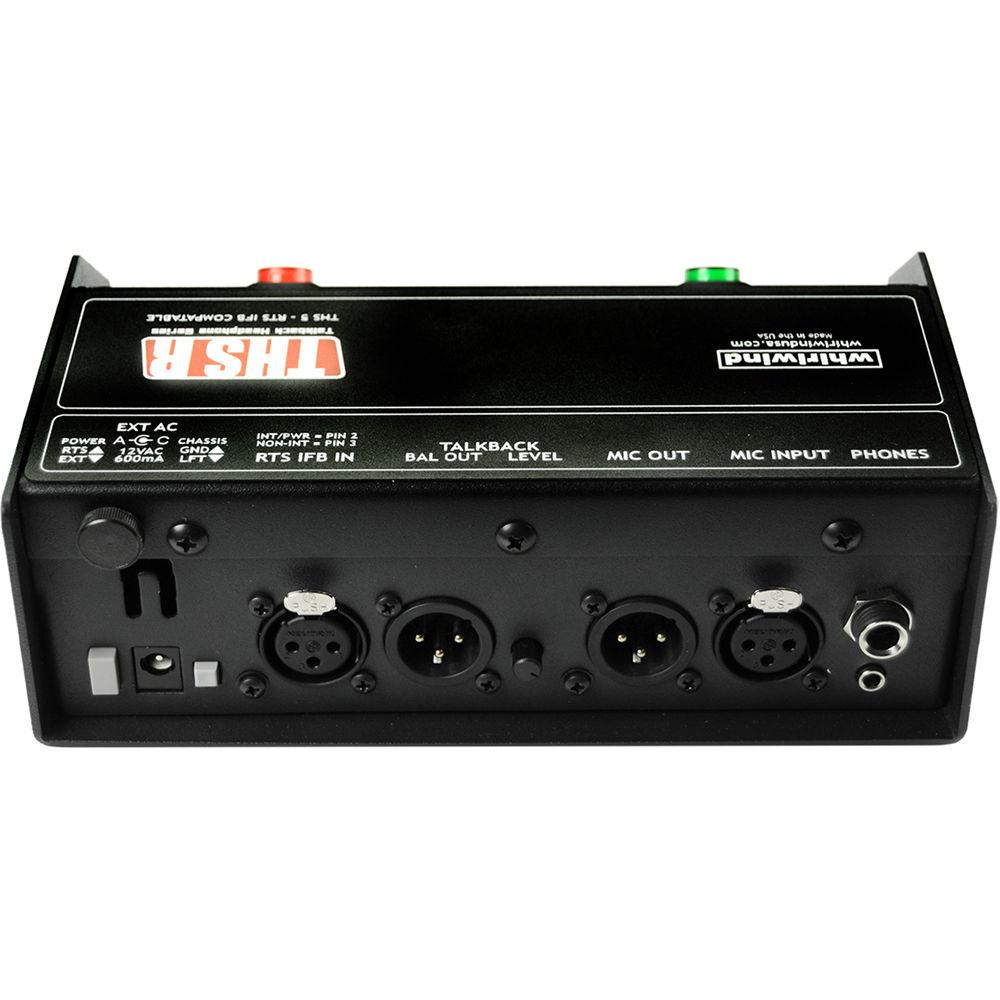

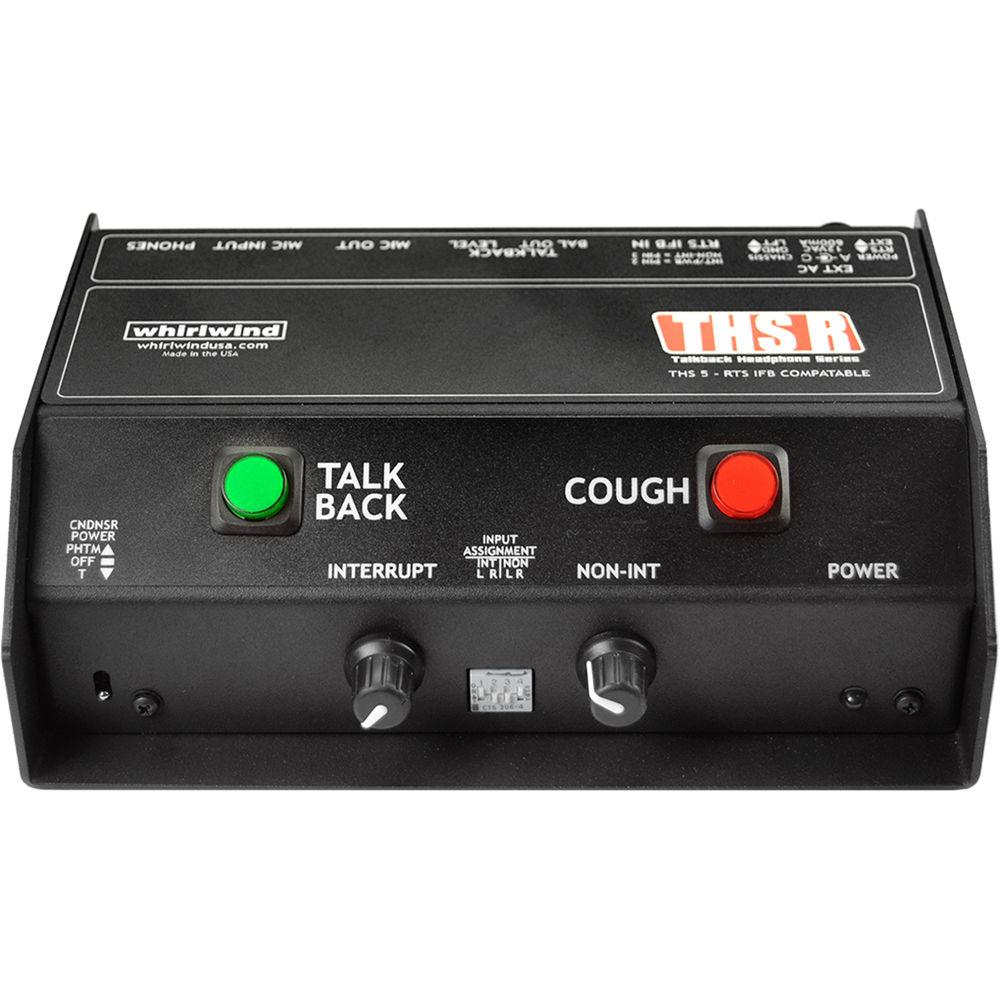

Product description Provided by third party: The RTS compatible THS R has both main and talkback microphone outputs. The microphone signal is always live at the main output unless the Talkback or Cough switch is depressed. If power to the THS R is lost, the mic signal will still pass with dynamic mics and with condenser mics if phantom power is provided from the host console. Two types of onboard condenser microphone power are available, enabling seamless switching when talkback is activated. A three way switch selects either phantom or "T" power and is recessed to avoid accidental turn off. A momentary Cough switch silences both the mic out and the talkback out when depressed. The announcer's microphone is sent through a preamp and line driver that deliver line level signal to the talkback output when the momentary Talkback switch is activated. The Talkback switch also mutes the mic out. There is a level control for fine adjustment of the audio sent down the talkback line. The THS R receives both power and input audio through a female 3 pin XLR from a "Wet" RTS compatible IFB system. Positive 24-30VDC power and interrupt audio are on Pin 2 and non-interrupt audio is on Pin 3. Pin 1 is power ground and audio shield. The headphone section of the THS R has two inputs. Each input has a volume control and dip switches to send the signal to the left and/or right headphone earpieces. When an input is assigned to both ears, level adjustments affect both left and right ears equally. Both 3.5mm and
|
Upload User Manual
Have you got an user manual for the Whirlwind THS R Talkback Headphone Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind THSR Specs | Type | Talkback headphone box | | Terminals | (1) x IFB input - XLR (2) x balanced audio output - XLR (1) x microphone - XLR (1) x headphones - phone stereo 6.3 mm (1) x headphones - mini-phone stereo 3.5 mm | | Package Weight | 4.175 lb | Box Dimensions (LxWxH) | 10.8 x 5.4 x 3.3" |
