User Manual for Whirlwind Xchecker Cable Checker Set Click to enlarge the picture
Contents of the user manual for the Whirlwind Xchecker Cable Checker Set
- Product category: Cable Testers & Tone Generators Whirlwind
- Brand: Whirlwind
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Whirlwind Cable Testers & Tone Generators
|
User manual for the Whirlwind Xchecker Cable Checker Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Whirlwind product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Whirlwind user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Whirlwind product will considerably shorten its lifespan!
|

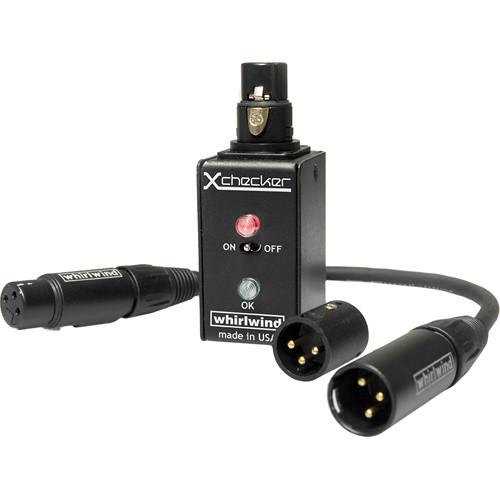

Product description The Xchecker Cable Checker Set from Whirlwind is for checking and testing common balanced audio lines. It can be used to test for inter-wire shorts, open conductors, non-standard wiring, and intermittent conditions. A single light confirms cables are correctly wired and operating properly. A power LED monitors the 9V battery life. It features a two-piece design and is built with an XLR female terminator on one piece, and a male XLR terminator on the second piece, for direct connection to an XLR cable. This allows for testing of installed cabling up to 500' long. The Xchecker uses proven technology to analyze every condition of 3-wire pin-to-pin cables. Note: XLR cable is sold separately - Analyzes every condition of 3-wire pin-to-pin cables
- Two-piece design allows testing of installed cabling
- Power LED monitors battery life of the 9VDC battery (sold separately)
- Single light confirms cables are correctly wired and operating properly
UPC: 692465021951 In the Box Whirlwind Xchecker Cable Checker Set XLR Male Terminator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Whirlwind Xchecker Cable Checker Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWhirlwind XCHECKER Specs | Testing Capability | 500.0' (152.4 m) cabling, maximum | | Connectors | Cable Checker:
1 x 3-pin XLR female
Terminator:
1 x 3-pin XLR male | | Indicators | 1 x LED red, power on/off
1 x LED green, OK status | | Dimensions (L x W x D) | 4.0 x 1.5 x 1.3" (10.2 x 3.8 x 3.2 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.4 x 4.0 x 1.8" |
