User Manual for Wi Digital ALPM5 AudioLink Pro PM Smart Stereo Digital Audio Monitoring System Pack Click to enlarge the picture
Contents of the user manual for the Wi Digital ALPM5 AudioLink Pro PM
- Product category: In-Ear Monitoring Systems Wi Digital
- Brand: Wi Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wi Digital In-Ear Monitoring Systems
 |
User manual for the Wi Digital ALPM5 AudioLink Pro PM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wi Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wi Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wi Digital product will considerably shorten its lifespan!
|

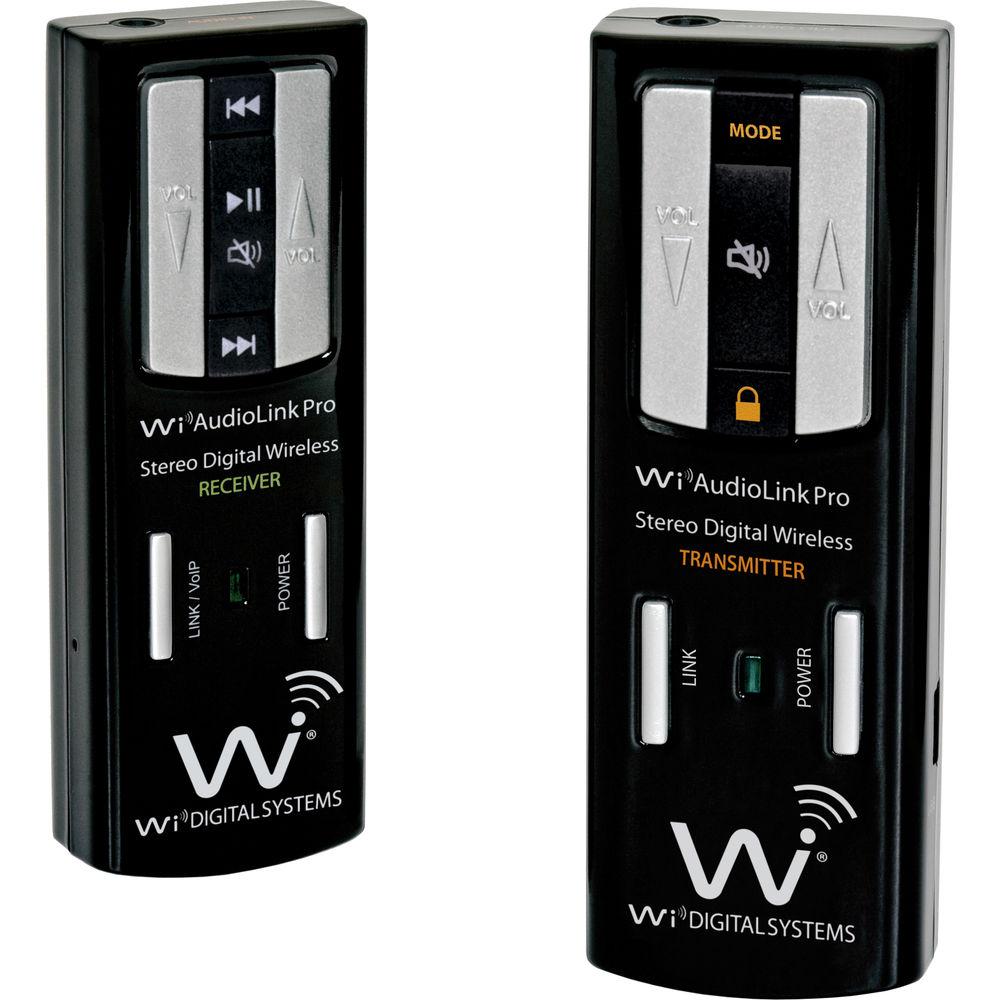

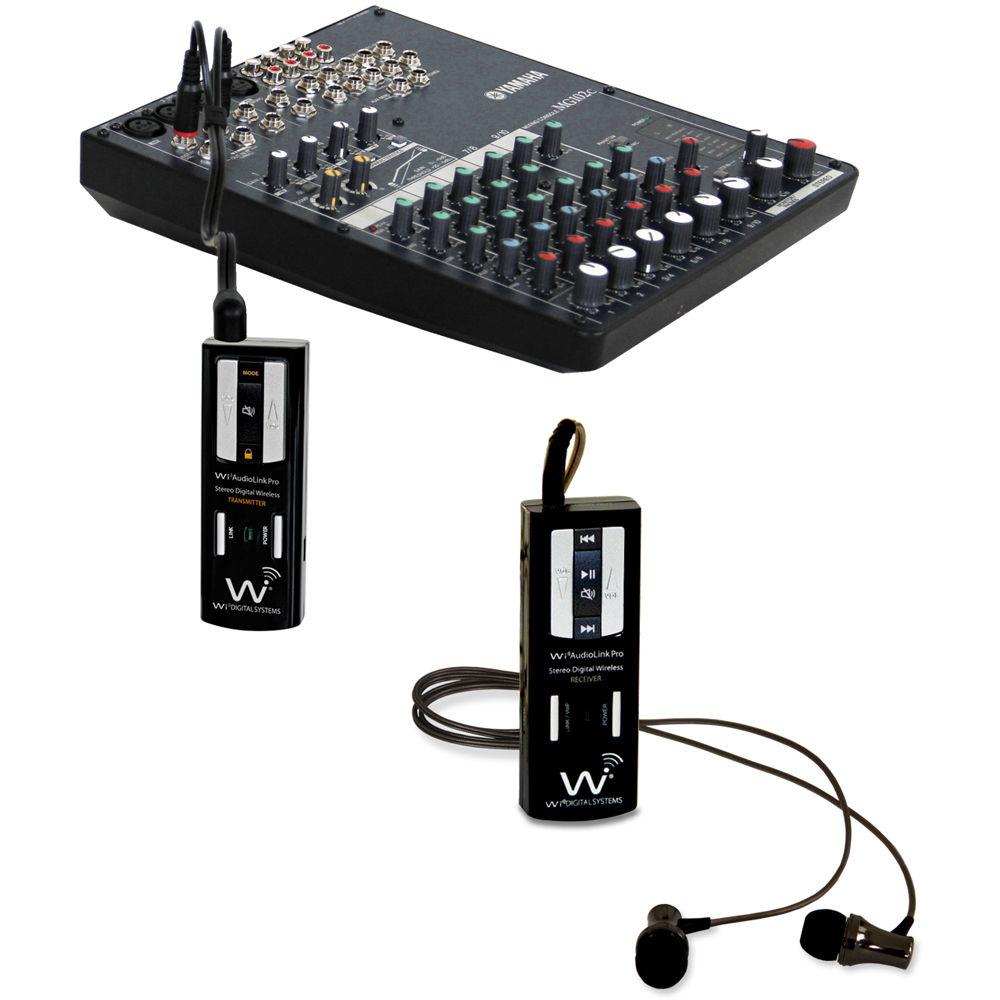

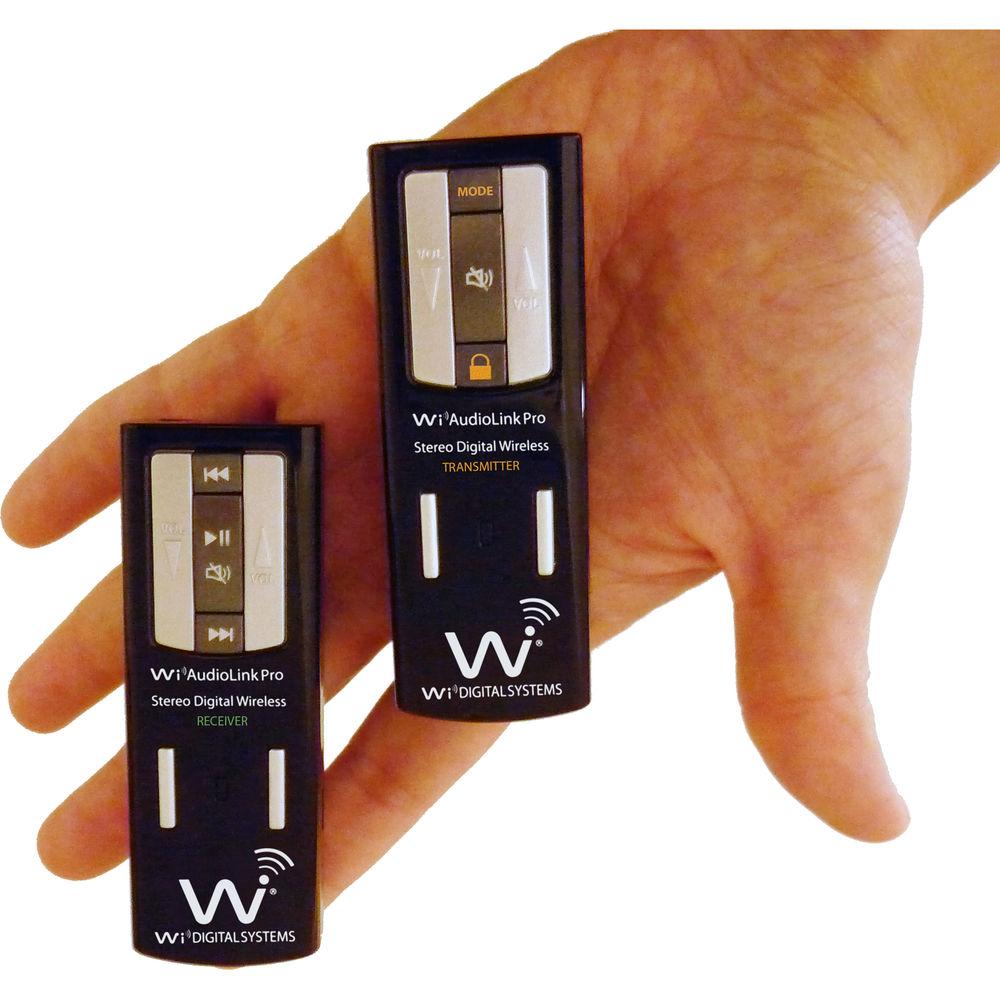

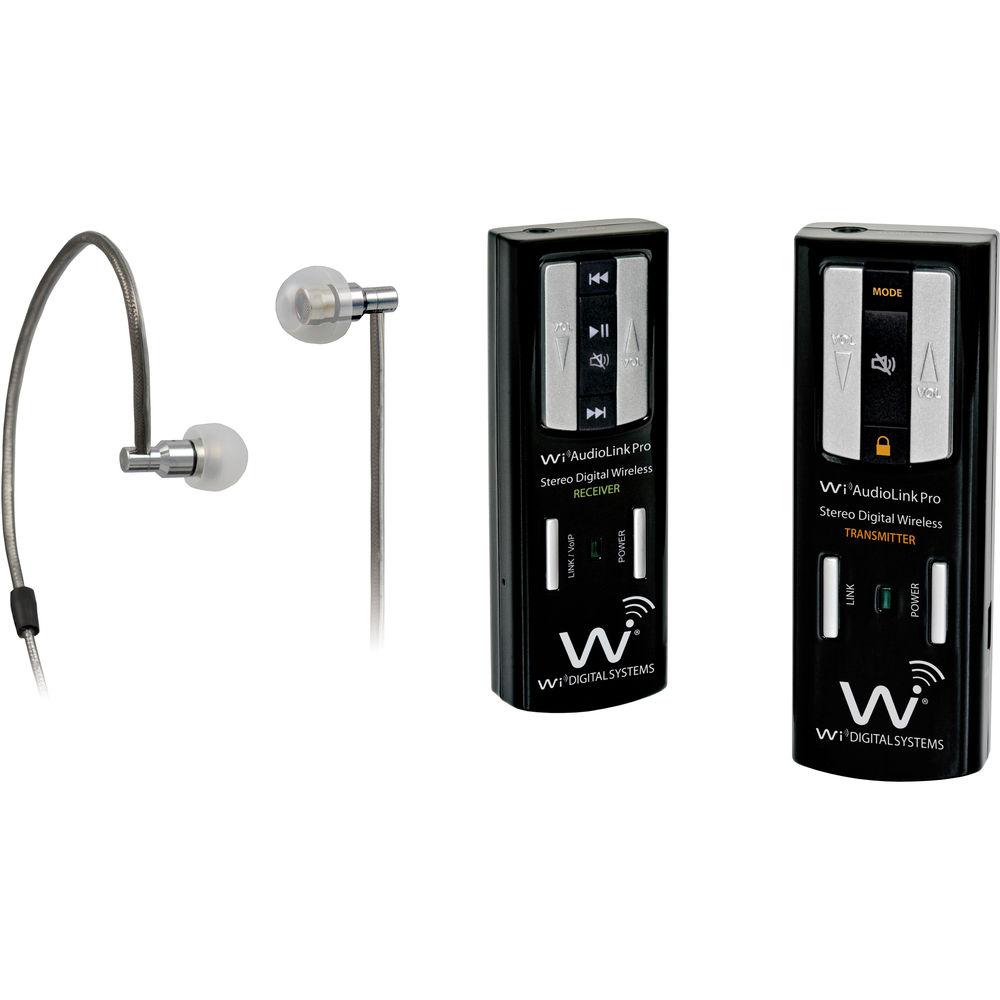

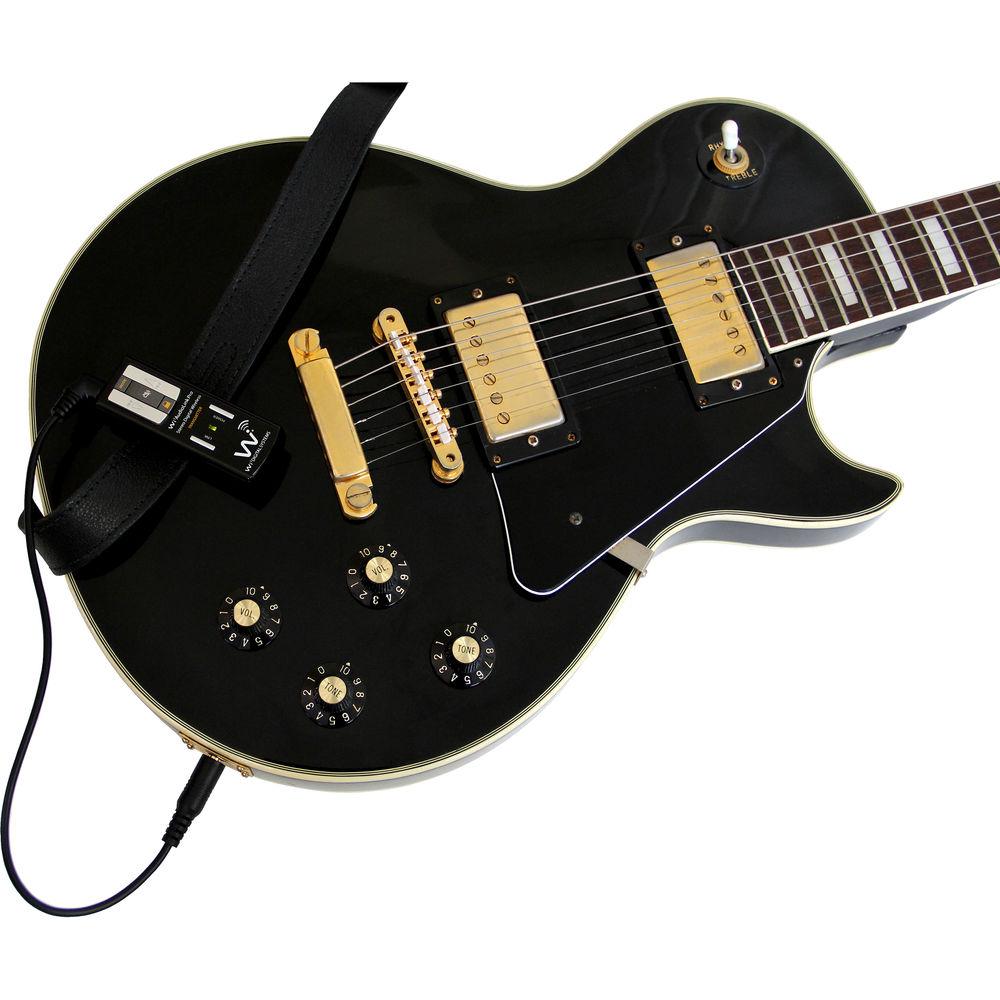

Product description The ALPM5 AudioLink Pro from Wi Digital Systems is a 2.4 GHz true diversity smart-pocket portable stereo digital wireless audio monitoring system. It can be used in live performance for applications such as live stage, theater, houses of worship, musical instruments, and more. The ALPM5 system features an AudioLink Pro Transmitter, an AudioLink Pro Receiver and a pair of Wi Micro-in-Ear Personal Reference Monitors. The in-ear-monitors are built to provide sound directly into the ear canal using a very small 5.5mm balanced Neodymium HD micro driver. The solid brass housing is placed directly in the ear canal; its driver reverberates within your ear canal and delivers a natural sounding bass with clearer highs. These micro-in-ear-monitors are designed with a bendable metal reinforced ear loop, a tangle and kink resistant cable, and will fit almost every ear canal size and shape. In addition, some other features of the AudioLink Pro system is that the transmitter and receiver are practically invisible to the audience. They are lightweight and will fit in the palm of your hand. The ALPM5 AudioLink Pro is a suitable choice for your monitoring needs. - Instrument, Tablet, Smart-Device or Computer

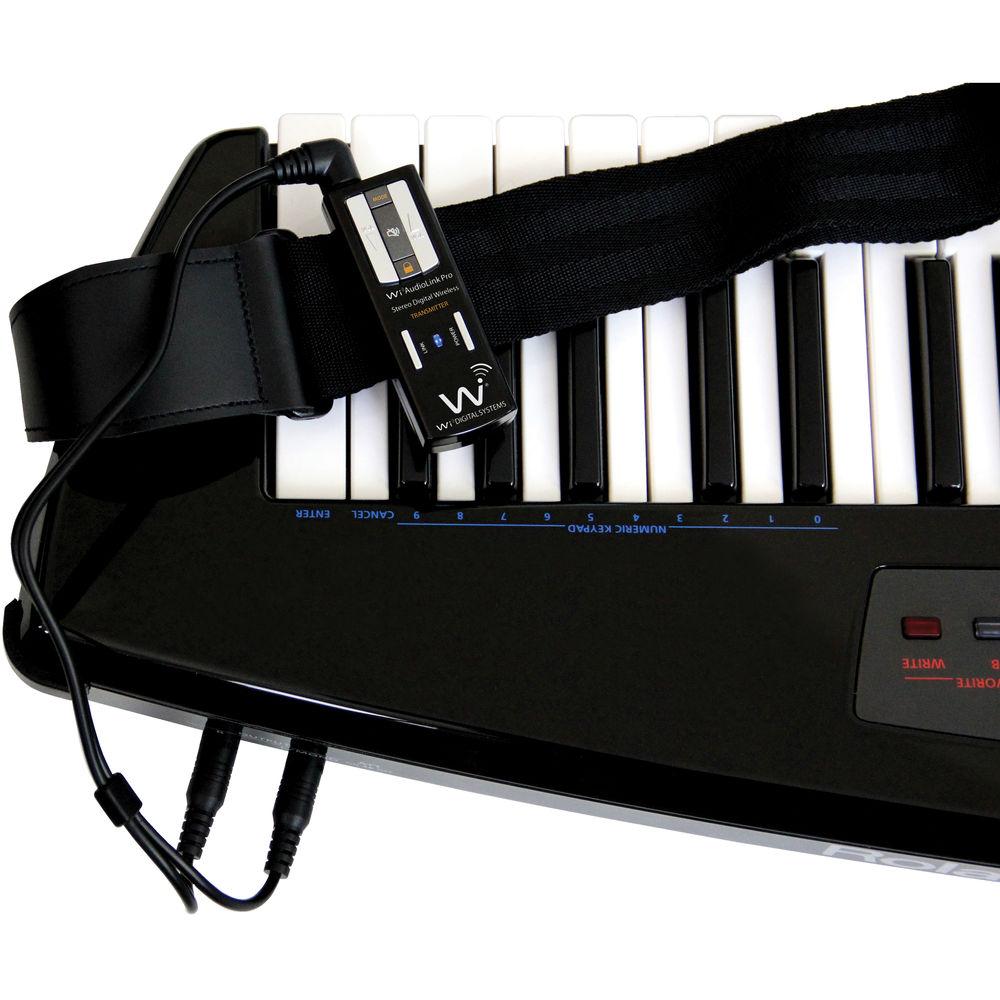

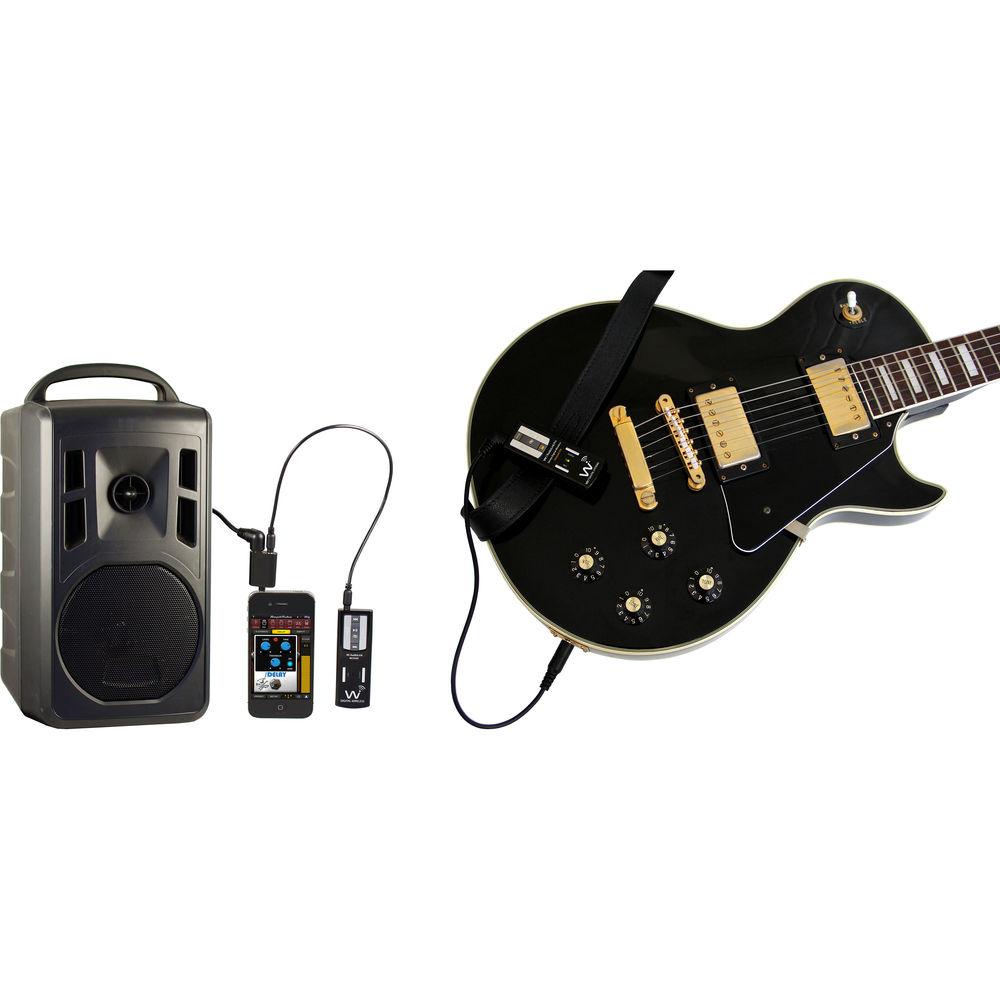

- The wireless audio monitoring system can also be used for guitarists, bassists, keyboardists, drummers and audio monitoring professionals. The system combines several features required for musical instruments, audio monitoring, silent practice, live performance, audio line level feeds and 2-Way wireless USB 2.0 audio applications
- Web Conferencing, Lecture Recording, and Presentations

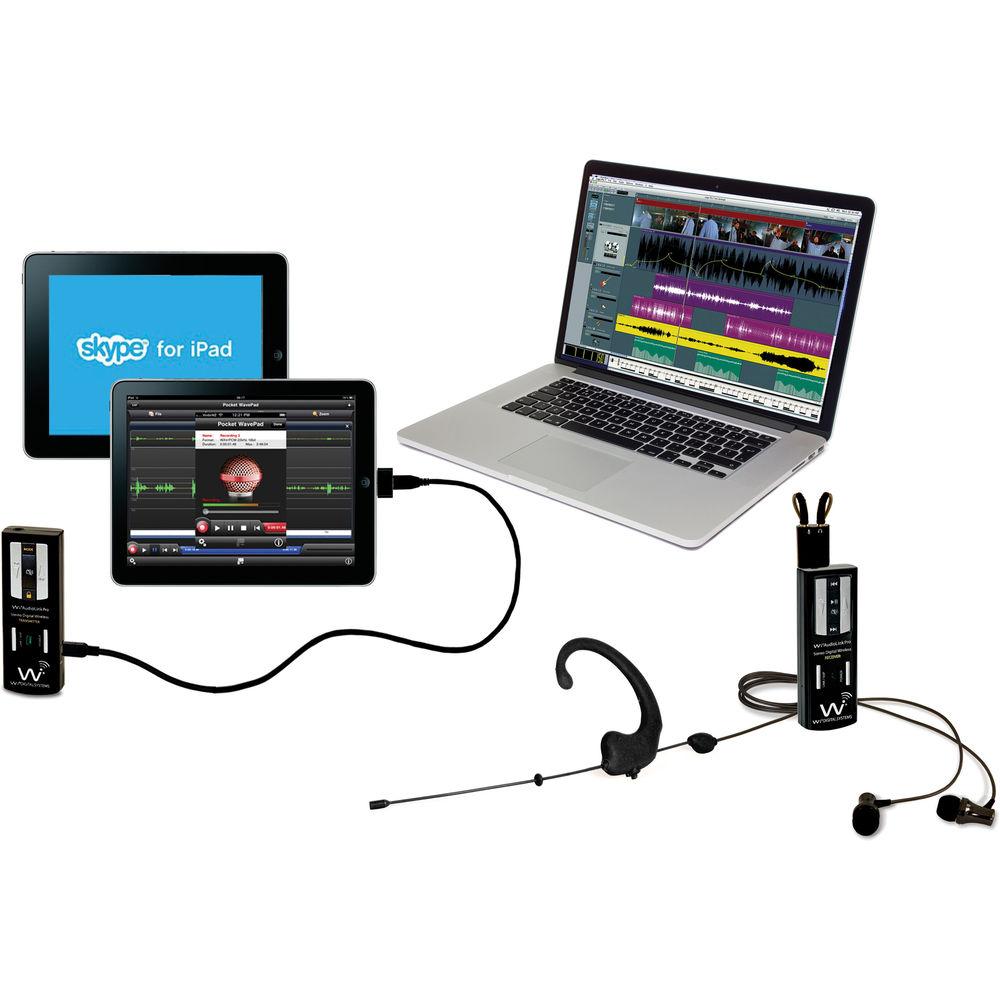

- The Wi AudioLink Pro allows you to conduct web conferences and voice chats over the internet with support for most common calling applications including Webex, GoToMeeting, Skype and more. It can be used as a tool for educational and corporate environment applications such as recording lectures, seminars, presentations, podcasting, online instructions and more
- Cross Platform Compatibility
- Compatible with Mac, Windows, iPad, Windows Surface, and Tablet PCs, on-stage, in-studio, or at home, and no drivers are needed

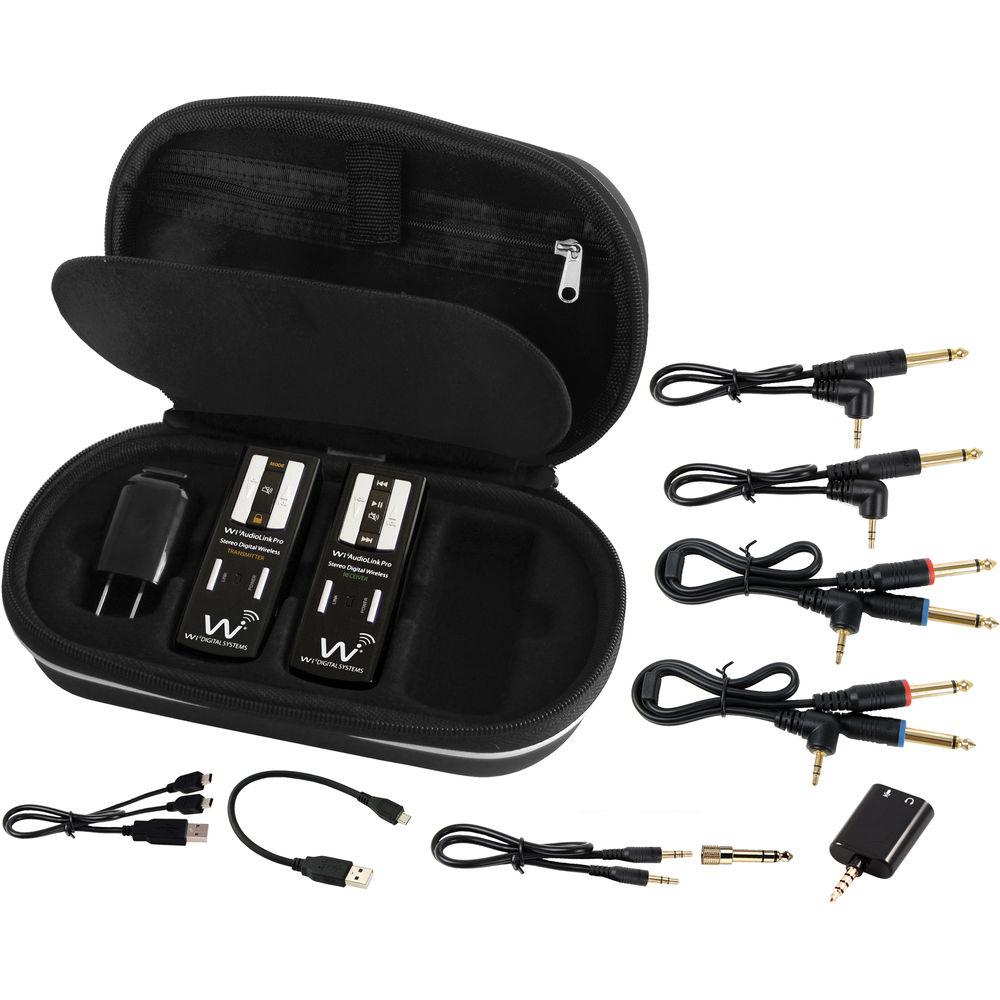

UPC: 899358002398 In the Box Wi Digital ALPM5 AudioLink Pro PM Smart Stereo Digital Audio Monitoring System Pack AudioLink Pro Transmitter AudioLink Pro Receiver 2 x 1/8" to 1/4" Y-Split L/R TRS Stereo Cable 2 x 1/8" to 1/4" TRS Mono Cable 1/8" to 1/8" TRS Stereo Cable & 1/4" Adapter 1/8" Mic/Guitar Input Port and Stereo Output Port to 1/8" TRS Adapter USB Data Cable USB Power Cable Universal USB Power Adapter Hardshell Carrying Case Micro-In-Ear Monitors 6 x Silicone Ear Cushions S, M, L 6 x Soft Foam Ear Cushions S, M, L 1/4" Stereo Adapter Cable Clip Protective Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wi Digital ALPM5 AudioLink Pro PM Smart Stereo Digital Audio Monitoring System Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWi Digital WI-ALPM5 Specs | Transmission Format | 2.4 GHz digital wireless | | Bit Rate | 16-bit, 48 kHz stereo CD audio quality (uncompressed audio) | | Frequency Response | 15 Hz to 20 kHz | | Frequency Selection | Auto | | Connector | 1/8" (3.5 mm) TRS stereo | | Input Impedance | 1 MOhms | | Maximum Input Level | 3 V RMS | | Output Impedance | <10 ohms | | Maximum Output Level | 2 mV RMS | | SNR | >90 dB | | Distortion | 0.12% THD | | Antenna | Two internal antennas | | Wireless Range | Up to 100' (may be dependent on line of sight, range will vary due to local conditions) | | Input Support | Passive guitar, active guitar and stereo/mono line-in | | USB Interface | Full speed two-way USB 2.0 wireless | | Remote Control | Audio: Volume up/down, play, pause, mute, next/prev track, mic on/off | | Rechargeable Battery Life | 4 - 6 hours (10 - 13 hours with optional AA battery power booster) | | Power Input | 5 VDC, 500 mA (USB Bus Power) | | # Of Simultaneous Systems | 9 | | WiFi Safe | Yes | | Computer Compatibility | Mac, Windows: Yes (plug-and-play)
iOS, Windows surface, Tablet PC: Yes (plug-and-play) | | OS Support | Mac OSX, iOS, Win XP/VISTA/ Win7/Win 8 | | Mounting | Metal belt clip with 1/4-20 tripod mounting screw | | Dimensions (W x H x L) | 1.2 x 0.6 x 3.34" (30 x 15 x 85 mm) | | Weight | 1.0 oz (0.028 kg) | | | | Earphone | In-canal micro-in-ear | | Body Material | Unobtrusive almost invisible solid brass construction | | Input Sensitivity | 91 dB at 1000 Hz | | Efficiency | 95 dB @ 1 kHz, 1 mW | | Frequency Response | 15 Hz to 20 kHz | | Impedance | 16 ohms ±15% | | Speaker Configuration | 5.5 mm proprietary precision balanced Neodymium | | Noise Isolation | -26 dB | | Input Connector | 1/8" (3.5 mm) 45° gold plated | | Cable | Construction: Wi Digital's straight-through left and right channels, low-distortion, tangle & kink resistant cable with bendable metal reinforced ear loops | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.0 x 9.4 x 3.8" |
