User Manual for Wi Digital AudioLink Pro Pocket Portable Wireless Instrument and Audio Monitoring System with 2-Way Wireless USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Wi Digital AudioLink Pro Pocket Portable
- Product category: Wireless Systems Wi Digital
- Brand: Wi Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wi Digital Wireless Systems
 |
User manual for the Wi Digital AudioLink Pro Pocket Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wi Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wi Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wi Digital product will considerably shorten its lifespan!
|

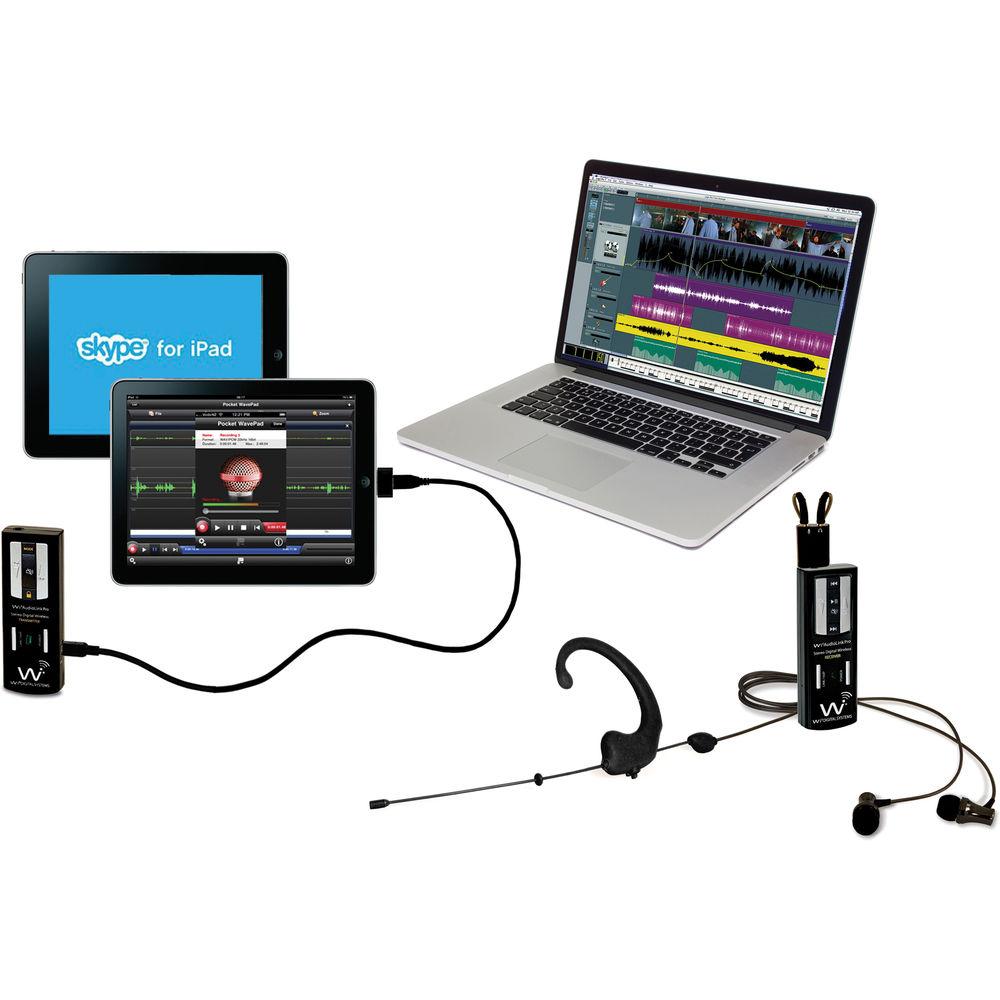

Product description The AudioLink Pro Pocket Portable Wireless Instrument and Audio Monitoring System with 2-Way Wireless USB Audio Interface by Wi is designed for wireless recording and performance. The system consists of a pocket-sized transmitter and receiver. You can attach an instrument, such as an electric guitar, to the transmitter unit and attach the other to an iPad, Windows Tablet, Mac computer, or PC via USB 2.0 for recording. Alternatively, you can attach in-ear monitors to one unit and receive a signal from the other unit attached to a tablet or computer.
The system has an effective transmission range of 100 feet over 2.4 GHz Wi-Fi, and a frequency range from 15 to 20,000 Hz. It utilizes two internal diversity antennas to improve reception and reduce drop outs. The system's internal rechargeable battery provides 4-6 hours of operation on a single charge. An optional AA battery adapter can extend the operating time up to 13 hours.
You can set the system to mono line in, stereo line in, or as a two-way USB 2.0 wireless audio interface. As an audio interface, the system can be used both for sending signals from your instrument to the computer, and for receiving mixes to listen to through your in-ear monitors. For convenience, the system includes controls for volume, mute, and track transport. It can also be used with a computer for voice over internet protocol (VOIP) applications such as Skype, AIM, Live, and Yahoo! For protection, the system comes included with a hardshell carrying case. UPC: 899358002350 In the Box Wi Digital AudioLink Pro Pocket Portable Wireless Instrument and Audio Monitoring System with 2-Way Wireless USB Audio Interface 1/8" to 1/8" TRS Stereo Cable 2 x 1/8" to 1/4" TRS Stereo Cable 2 x 1/8" to 1/4" Y-Split L/R TRS Stereo Cable 1/8" MIC/Guitar Input Port and Stereo Output Port to 1/8" TRS Adapter Universal USB Power Adapter USB 2.0 Cable Power Cable Hardshell Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wi Digital AudioLink Pro Pocket Portable Wireless Instrument and Audio Monitoring System with 2-Way Wireless USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWi Digital WI-ALP55 Specs | Transmission Format | 2.4 GHz digital wireless | | Bit Rate | 16-bit, 48 kHz stereo CD audio quality | | Frequency Response | 15 to 20,000 Hz | | Frequency Selection | Auto (diversity system) | | Output Impedance | <10 Ω | | Maximum Output Level | 720 mV RMS | | SNR | >90 dB | | Distortion | 0.12% THD | | Wireless Range | Up to 100 feet (may be dependent on line of sight, range will vary due to local conditions) | | Antenna | Two internal antennas | | Power Input | 5 VDC, 500 mA (USB Bus Power) | | OS Support | Mac OSX, iOS, Win XP/VISTA/Windows 7/Windows 8 | | Compatibility | Mac, PC, iPad, Windows Surface | | | | Remote Control | Volume up/down & mute | | Rechargeable Battery Type | 4-6 hours | | Connectors | 1/8" TRS stereo | | USB Interface | Full speed two-way USB 2.0 wireless audio interface | | Dimensions | 1.20 x 0.60 x 3.34" (3.05 x 1.52 x 8.48 cm) | | Weight | 1.08 oz (30.6 g) | | | | Remote Control | Volume up/down, play, pause, mute, next/prev, track, mic on/off | | Rechargeable Battery Type | 4-6 hours | | Audio Connector | 1/8" TRS stereo (support audio-in and audio-out) | | Dimensions | 1.20 x 0.60 x 3.34" (3.05 x 1.52 x 8.48 cm) | | Weight | 1.08 oz (30.6 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 2.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
