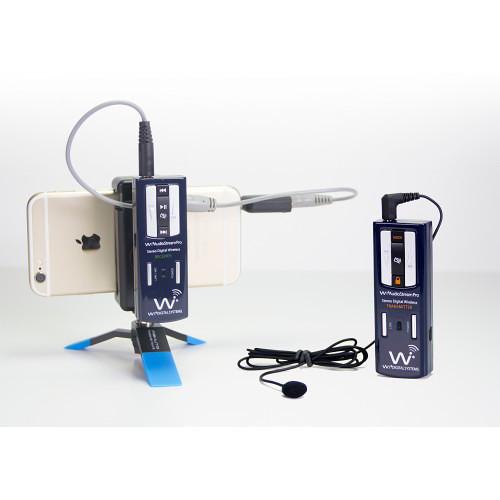

User Manual for Wi Digital Wi AudioStream Pro AV Portable Digital Wireless Lavalier System Click to enlarge the picture
Contents of the user manual for the Wi Digital Wi AudioStream Pro AV
- Product category: Mobile Microphones Wi Digital
- Brand: Wi Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wi Digital Mobile Microphones
 |
User manual for the Wi Digital Wi AudioStream Pro AV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wi Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wi Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wi Digital product will considerably shorten its lifespan!
|

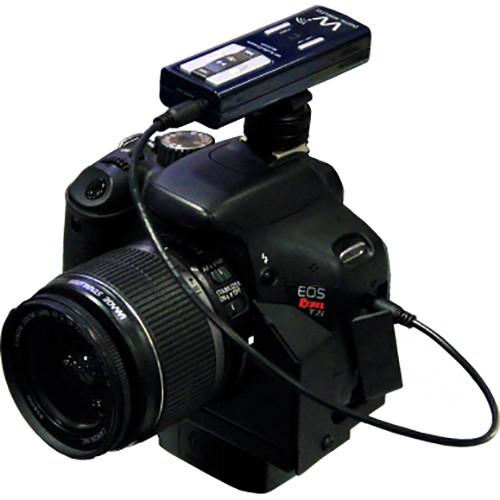

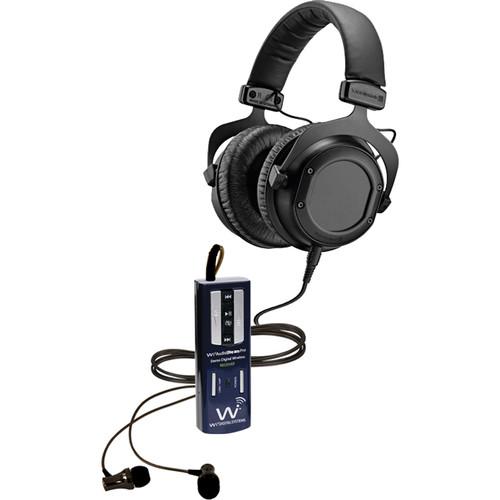

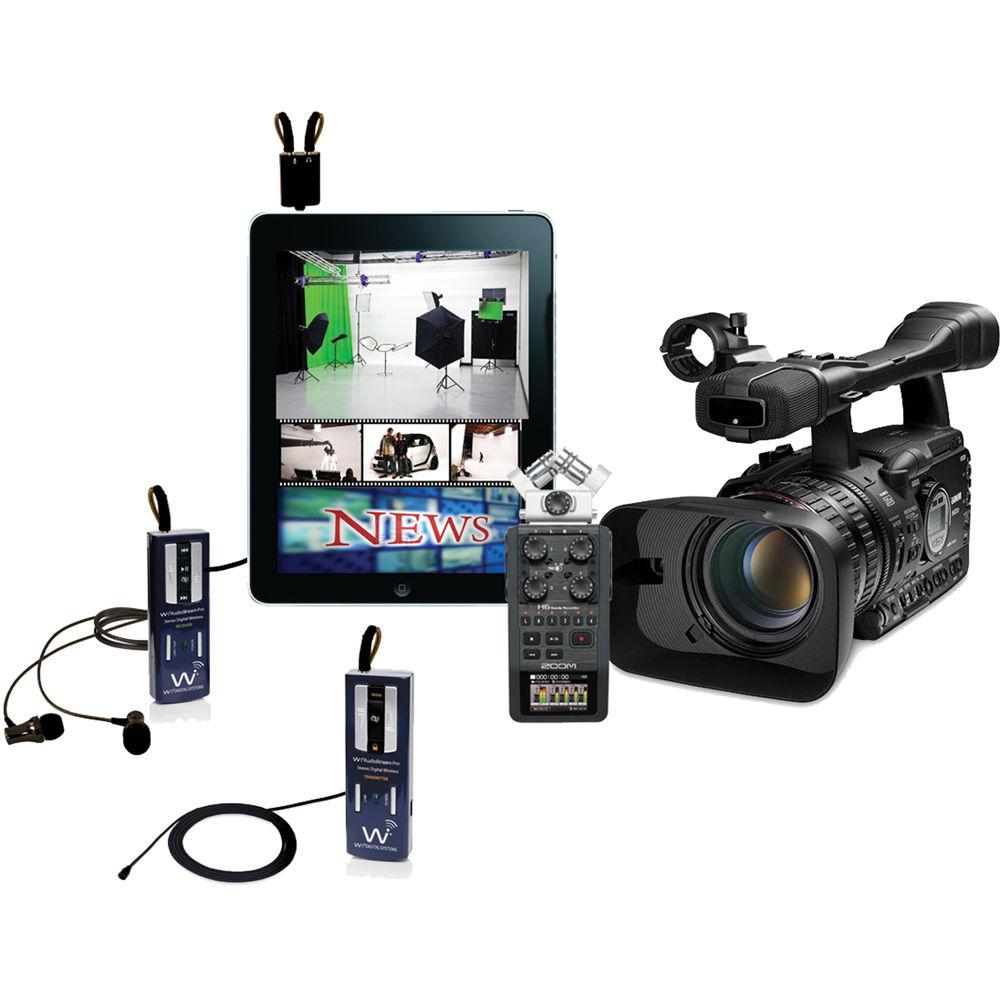

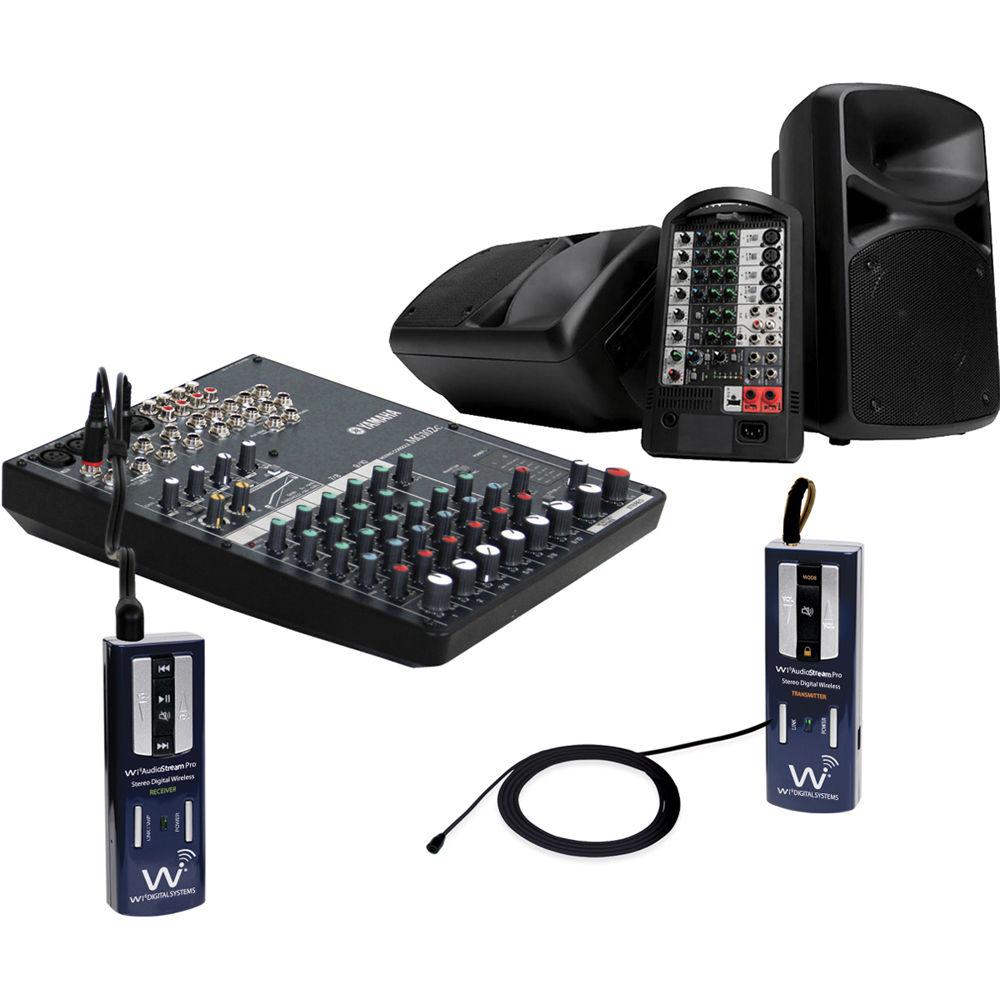

Product description The Wi AudioStream Pro AV Portable Digital Wireless Lavalier System from Wi Digital is suitable for wireless audio applications including remote and location recording, monitoring, podcasting, and VoIP. It can be used with video cameras, DSLRs, and handheld recorders, and it is iPad, Windows Surface, Tablet PC, Mac, Windows, and USB compatible. Equipped with an omnidirectional microphone, this system quickly transforms from a lavalier mic to an audio monitoring system with a simple swap of accessories. It provides up to 100' of secure, uncompressed 16-bit, 48 kHz CD quality and wide 15 Hz to 20 kHz frequency response wireless audio connectivity without RF interference, signal loss, or crackle. Furthermore, the system includes compact and ultra-light 1.0 oz transmitter and receiver units that can be attached to a belt, a shirt's, or pant's pockets. The ¼"-20 screw mount on each transceiver unit enables you to mount it to camcorders, DSLR cameras, and other A/V gear using the included hot shoe adapter. Finally, the system has an internal rechargeable battery that lasts for 4 to 6 hours of operation and comes with a USB AA battery adapter for up to 13 hours of extended use. The combination of audio performance, simplified setup, portability, and all-inclusive accessories lets you set up quickly and easily. - Pocket-portable true diversity system
- Selectable Mono-MIC / Stereo-MIC / Stereo Line-input

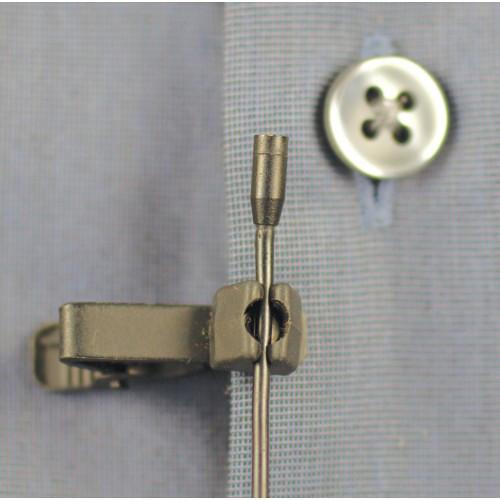

- Equipped with an omnidirectional lavalier microphone
- Support for web conferencing, lecture recording, presentations, podcasting & VoIP chat
- Full support for core audio-compatible applications in Mac OS X and iOS; and Windows XP, VISTA, 7, and 8
- Two-way wireless USB 2.0 audio interface
- Connects to iPads, tablets, computers & smart devices
- Includes hard-shell carrying case

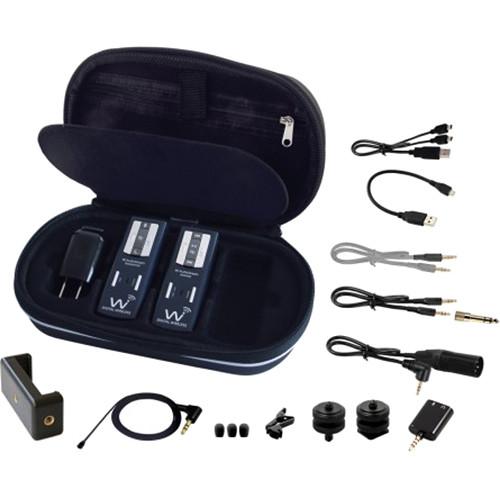

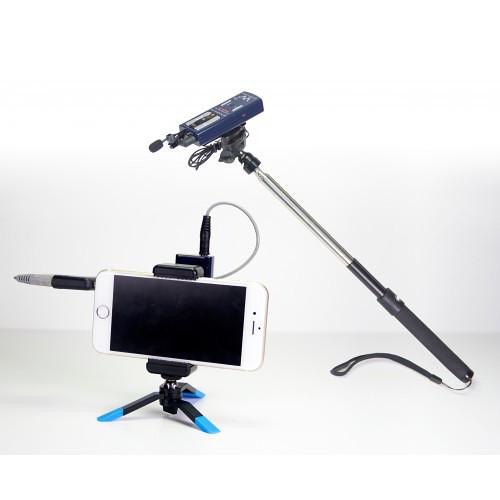

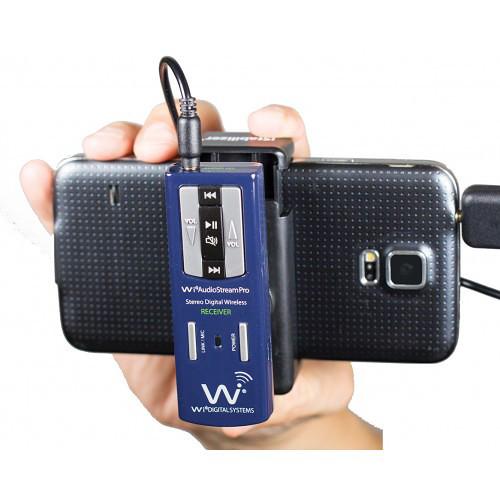

UPC: 899358002381 In the Box Wi Digital Wi AudioStream Pro AV Portable Digital Wireless Lavalier System AudioStream Pro Transmitter AudioStream Pro Receiver Wi Sure-Sound Lavalier Microphone 1/8" to 1/8" TRS Smart Device Cable 1/8" to 1/8" TRS Stereo Cable & 1/4" Adapter 1/8" to XLR Mono Cable Lavalier Cable Clip 1/8" Mic Input Port & Stereo Output Port to 1/8" TRS Adapter 1/4"-20 Hotshoe Tripod Camera Adapter Receiver Mounting Adapter for Smartphones 2 x Mic Windscreens USB Data Cable Y-Split USB Power Cable Universal USB Power Adapter Hard-Shell Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wi Digital Wi AudioStream Pro AV Portable Digital Wireless Lavalier System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWi Digital WI-ASPAV Specs | | | Transmission Format | 2.4 GHz digital wireless | | Bit Rate | 16-bit, 48 kHz stereo quality (uncompressed audio) | | Frequency Response | 15 Hz - 20 kHz | | Frequency Selection | Auto | | Connectors | 1/8" TRS stereo jack | | Input Impedance | 3.3 kOhms | | Maximum Input Level | 1 V RMS | | Output Impedance | <10 Ohms | | Maximum Output Level | 700 mV RMS | | SNR | Stereo Line-In: >90 dB
Stereo / Mono Mic-In: >90 dB | | Distortion | 0.12% THD | | Antenna | 2 x internal antennas | | Wireless Range | >100' (30.5 m) (May be dependent on line sight, range may very due to local conditions) | | Input Support | Stereo/Mono mini condenser type microphones and Stereo Line-in | | USB Interface | Full speed 2-way USB 2.0 wireless | | Remote Control | Audio: Volume up/down, play, pause, mute, next/previous track, microphone on/off | | Rechargeable Battery Life | 4 to 6 hours, 10 to 13 hours with optional AA battery power booster | | Power Input | 5 VDC, 500 mA (USB bus power) | | Operation | 9 units simultaneously, maximum | | WiFi Safe | Yes | | Support | Mac, PC, iPad, Windows Surface, and Tablet PC (plug-and-play) | | OS Support | Mac OS X and iOS; Windows XP, VISTA, 7, and 8 | | Mounting | Metal belt clip | | | | Frequency Response | 20 Hz - 20 kHz | | Cable | 0.06" (1.4 mm) | | Microphone Capsule | 0.14" (3.5 mm) | | Element | Back electret condenser | | Polar Pattern | Omnidirectional | | Operating Voltage | 0.8 - 5.0 VDC | | Sensitivity | -35 dB +/- 3 dB / Pascal | | Maximum SPL | 140 dB | | Output Impedance | 1.5 kOhms ± 30% | | Weight | Ear Set: 0.1 oz (2.8 g) | | | | Dimensions (L x W x H) | Transmitter: 1.20 x 3.34 x 0.60" (3.1 x 8.5 x 1.6 cm)
Receiver: 1.20 x 3.34 x 0.60" (3.1 x 8.5 x 1.6 cm) | | Weight | Transmitter: 1.0 oz (28 g)
Receiver: 1.0 oz (28 g) | | | | Package Weight | 1.455 lb | | Box Dimensions (LxWxH) | 10.05 x 5.3 x 2.8" |
