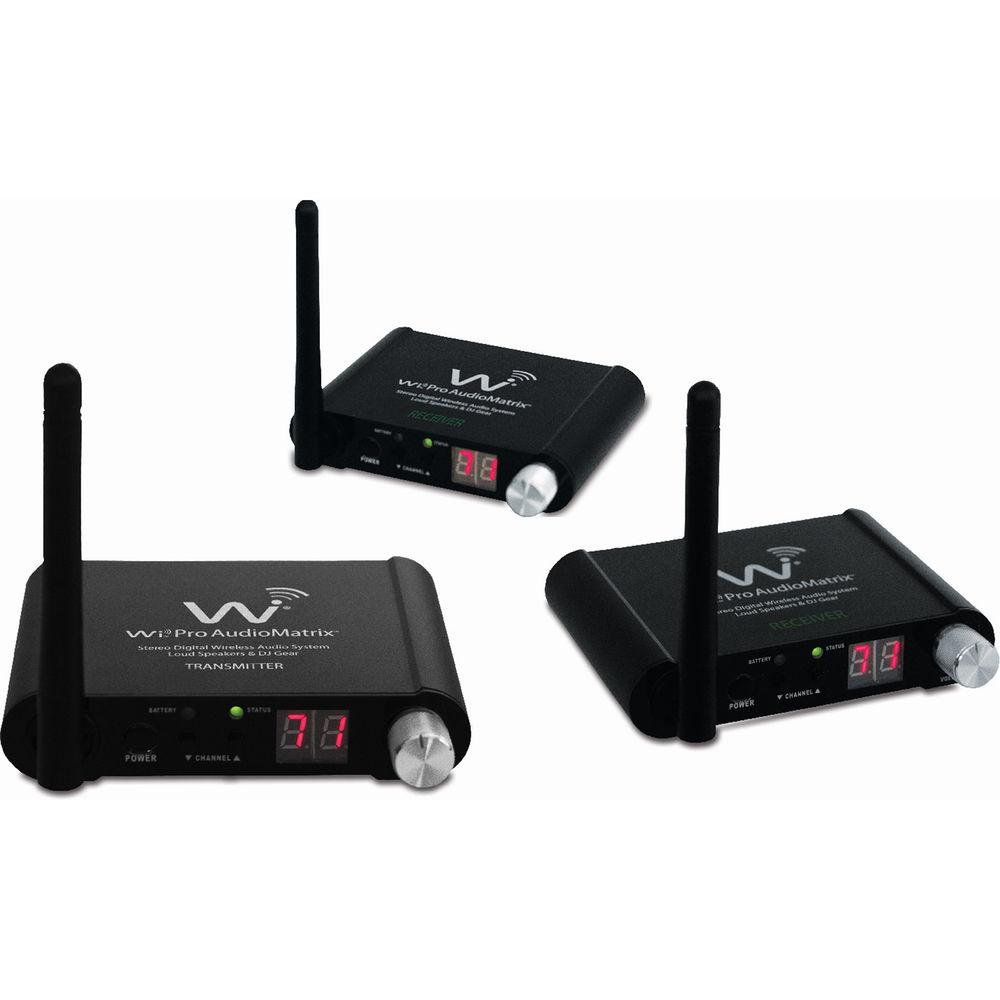

User Manual for Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System

Click to enlarge the picture
Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Contents of the user manual for the Wi Digital Wi Pro AudioMatrix X8
  • Product category: Speaker Accessories Wi Digital
  • Brand: Wi Digital
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Wi Digital Speaker Accessories

Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System
User manual for the Wi Digital Wi Pro AudioMatrix X8 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Wi Digital product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Wi Digital user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Wi Digital product will considerably shorten its lifespan!



Product description

The Wi Digital Wi Pro AudioMatrix X8 is a portable 2.4 GHz stereo digital multicast wireless audio system designed to provide high-quality, long-range signal transmission and out-of-the-box functionality for presenters, musicians, and sound engineers in office buildings, conference spaces, outdoor events, and multi-floor venues. It transmits uncompressed 16-bit/48 kHz signal with low 2 to 4 ms latency up to 750 feet. Automatic pairing and linking ensure that the configuration is free of frustration and hassle.The system includes one transmitter and two receivers; a single transmitter can multicast to as many as 50 receivers. The supplied 800mW, 8 dBi powered omnidirectional antenna can be mounted on the transmitter or receiver. Each transmitter and receiver features an internal 8-hour rechargeable battery and can be powered and charged via USB connection or an AC adapter.The Wi Pro AudioMatrix X8 ships with passive antennas, tripod stands, mounting brackets, audio cables, USB cables and power adapters, and a carrying case.
    System Overview
  • The Wi Pro AudioMatrix X8 enables users to create a long-range digital wireless audio distribution matrix, which transmits uncompressed 16-bit, 48 kHz signal with a wide frequency response over the 2.4 GHz frequency band. One transmitter can feed up to 50 stereo digital wireless receivers without the need to route cables to speakers or run cables from one location to another. One transmitter and two receivers are supplied.
    Signal Booster

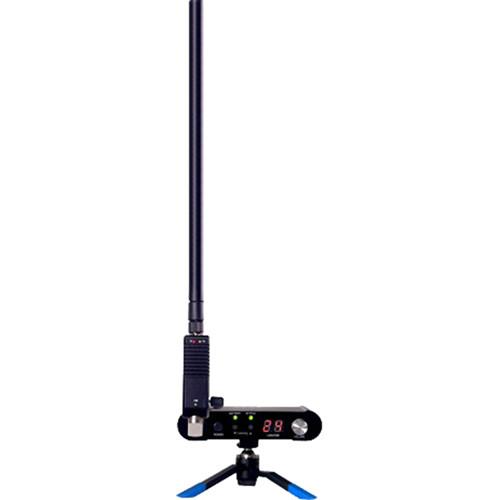

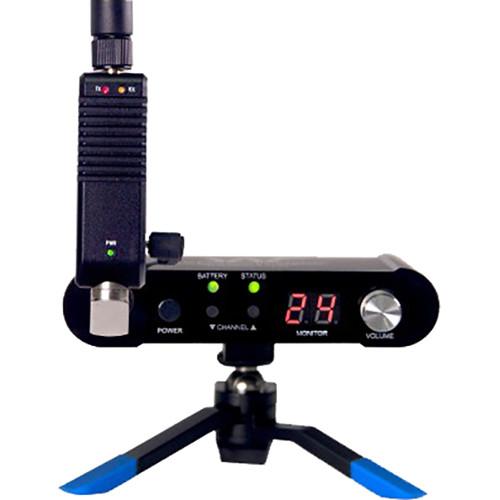

  • The included Wi-SB800 Signal Booster is an 800mW, 8 dBi powered omnidirectional antenna designed to boost and significantly extend the signal range, strength, and performance of the system over longer distances. It can be mounted to the transmitter or receiver to send and receive signals in all directions to overcome potential wireless interference and setup challenges.
    Expansion Capability
  • Mitigate the wireless coverage range and setup challenges such as going around structural barriers by implementing a relay configuration to shape, mold, extend, or even double the wireless distance coverage. This can be done daisy-chaining multiple units.
    Easy Setup
  • Offering plug-and-play functionality, the system features Wi Digital's Seek-and-Link algorithms, which enable receivers to search for audio stream acquisition and automatically link to the transmitter. By negating the need for manual pairing, setup time is significantly decreased.
    Multiple Power Options
  • An internal rechargeable battery allows up to 8 hours of operating time. Add a USB AA battery adapter or lithium-ion battery bank for extended use. The units can be changed and powered via USB power or an AC power adapter.
    Accessories Included
  • In addition to the one transmitter, two receivers, and 8 dBi powered antenna, the system includes passive antennas, tripod stands, mounting brackets, audio cables, USB cables and power adapters, and a carrying case. It is designed for out-of-the box functionality and is ready for immediate use.

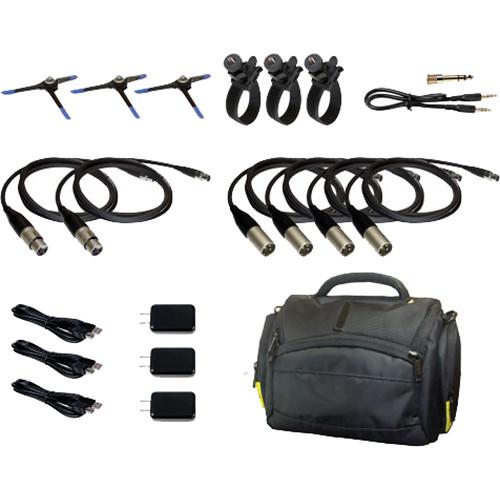

UPC: 899358002435 In the Box Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System
  • Wi Signal Booster 2.4 GHz, 800mW, 8 dBi Powered Antenna
  • 2 x 5 dBi Passive Antennas
  • 3 x 1/4"-20 Tripod Stands
  • 3 x Universal Mounting Brackets for Speakers and Stands
  • 1/8" (3.5mm) TRS Stereo Cable
  • 1/4" TRS Adapter
  • 2 x Mini XLR to XLR Female Cables
  • 4 x Mini XLR to XLR Male Cables
  • 3 x Universal USB Power Adapter
  • 3 x USB Cables
  • Powered Antenna Power Adapter
  • Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Wi Digital Wi Pro AudioMatrix X8 Portable 2.4 GHz Stereo Digital Multicast Wireless Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Wi Digital WI-AMP50X8 Specs

    Transmission Format 2.4 GHz digital wireless
    Resolution 16-bit/48 kHz (stereo, uncompressed)
    Frequency Response 15 Hz to 20 kHz
    Frequency Selection Auto, Manual
    Latency 2 to 4 ms
    Antenna 2.4 GHz, 800 mW, 8 dBi powered antenna

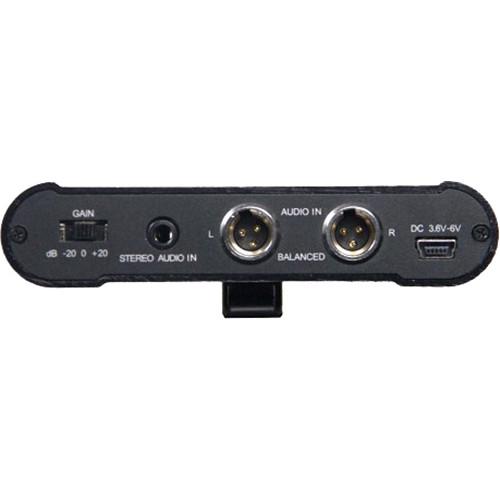

    Inputs 1 x 1/8" (3.5 mm) stereo mini-jack
    2 x balanced mini XLR 3-pin jacks

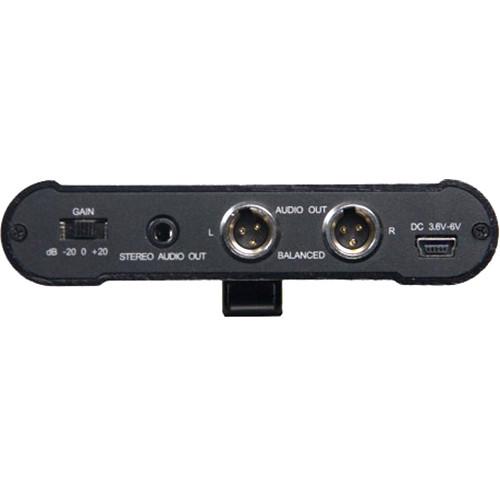

    Outputs 1 x 1/8" (3.5 mm) TRS stereo mini-jack
    2 x balanced mini XLR 3-pin jacks
    Input Impedance 1 MOhm
    Maximum Input Level 2.8 V RMS
    Output Impedance <10 Ohms
    Maximum Output Level 2 mV RMS
    Signal to Noise Ratio >96 dB
    THD 0.12%
    Gain Level -20 dB, 0 dB, and +20 dB
    Wireless Range >750' / 228.6 m
    Multicast One transmitter to 50 receivers simultaneously
    Audio Controls Volume up/down
    Battery Life Approximately 6 to 8 hours (13 to 18 hours with optional AA battery power booster)
    Power Input 5 VDC, 500 mA (USB bus power)
    Mounting Metal belt clip with 1/4"-20 tripod mounting screw
    Enclosure Material Aluminum
    Dimensions (W x H x D) 3.8 x 0.8 x 2.7" / 96.5 x 20.3 x 68.6 mm
    Weight 0.1 lb / 0.1 kg
    Package Weight 5.2 lb
    Box Dimensions (LxWxH) 11.9 x 8.7 x 8.1"
