User Manual for Wilco Imaging WIL-HD1080p 2.1 Mp HD-SDI Progressive Scan Indoor Outdoor Color Camera

Click to enlarge the picture
Wilco Imaging WIL-HD1080p 2.1 Mp HD-SDI Progressive Scan Indoor Outdoor Color Camera Contents of the user manual for the Wilco Imaging WIL-HD1080p 2.1 Mp HD-SDI
  • Product category: Industrial & Multi-Purpose Cameras Wilco Imaging
  • Brand: Wilco Imaging
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Wilco Imaging Industrial & Multi-Purpose Cameras

User manual for the Wilco Imaging WIL-HD1080p 2.1 Mp HD-SDI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Wilco Imaging product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Wilco Imaging user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Wilco Imaging product will considerably shorten its lifespan!

Product description

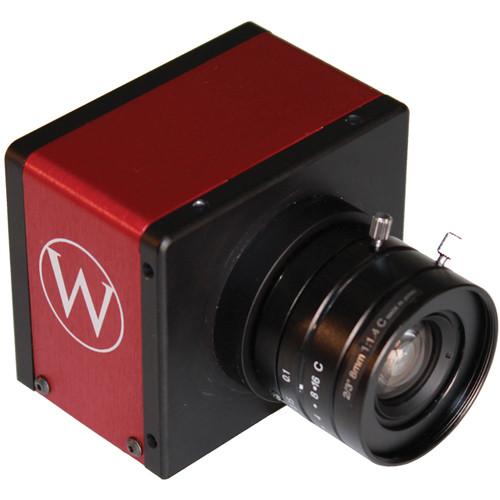

The WIL-HD1080p 2.1 Mp HD-SDI Progressive Scan Indoor/Outdoor Color Camera from Wilco Imaging is a lightweight unit featuring a ruggedized housing and offers more versatility for use with multiple imaging applications like medical imaging, machine vision, and military imaging.The output board is incorporated with an industrial 6-pin connector to power up the camera and provide for auto iris functionality. The camera also features mounting points on each side to provide modularity and customization to your application. It also features a rich OSD (On Screen Display), which makes it easy to change functions on the fly to allow your machines to operate at their optimum capacity.
  • HD/SDI 1080p resolution with 25/30 fps
  • 1/3" CMOS Progressive Scan sensor
  • Active Haze Reduction
  • OSD (On Screen Display)
  • Defect compensation
  • Compact design
Table of Contents

Upload User Manual

Have you got an user manual for the Wilco Imaging WIL-HD1080p 2.1 Mp HD-SDI Progressive Scan Indoor Outdoor Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)


Technical parameters

Wilco Imaging WIL-HD1080P Specs

Image Sensor 1/3" 2.1 Mp Progressive Scan CMOS
Resolution (H x V) Active: 1944 x 1092
Pixel Size 2.75 x 2.75 µm
Signal / Noise >50 dB
Output Mode: HD/SDI 1080p 25/30 fps
Minimum Illumination Color: 1.0 lux
Monochrome: 0.5 lux
Electronic Shutter 1/30 to 1/50,000 sec
White Balance AWB/AWC-Set/Manual/Indoor/Outdoor
Backlight Compensation BLC/HSBLC/Off
AGC Level Low/Middle/High
OSD Selectable: Sharpness/Monitor/LSC/NTSC/PAL
Day/Night Auto/B&W/Color/EXT (selectable)
Digital Zoom On/Off (2 to 64x)
Motion Detection On/Off (3 Selectable zones)
Frame Integration On/Off (Selectable approximately 60x)
Digital Effects Freeze/Mirror Image/Digital Zoom/Negative Image
Defog High/Middle/Low/Off
Lens Mount C-/CS-mount
Power 12 VDC, 0.2 A, 2.4 W
Other Defect Compensation: Live DPC/Static DPC
Dimensions (H x W x D) 2.2 x 2.6 x 2.2" (56.0 x 66.0 x 55.0 mm)
Weight 8.1 oz (230.0 g)
Package Weight 0.45 lb
Box Dimensions (LxWxH) 4.1 x 3.3 x 2.3"
