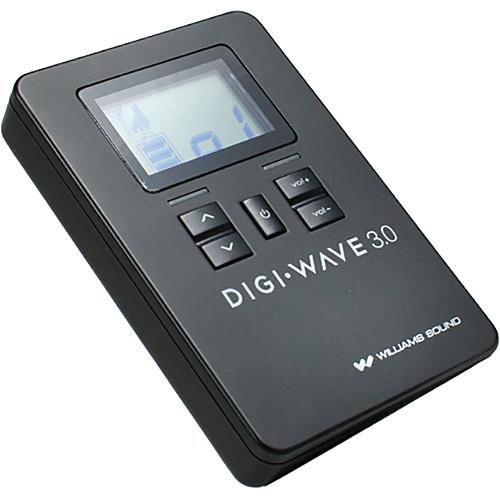

User Manual for Williams Sound DLR 360 Digi-Wave 3.0 Digital Receiver Click to enlarge the picture
Contents of the user manual for the Williams Sound DLR 360 Digi-Wave 3.0
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound DLR 360 Digi-Wave 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The DLR 360 Digi-Wave 3.0 Digital Receiver from Williams Sound is for listen-only applications when paired with the Digi-Wave 3.0 DLT transceiver (sold separately). It features automatic mode selection and shutoff and is simple to set up and use. The large LCD screen displays channel, volume, battery level, and RF signal strength. The DLR 360 receiver operates on the 2.4 GHz ISM band and can receive up to two presenters simultaneously during team presentations. The built-in headphone jack can be used with earphones, headphones, or a neck loop, or function with the built-in speaker. The DLR 360 Digi-Wave 3.0 Digital Receiver uses two AAA alkaline or NiMH batteries (sold separately). - Large LCD makes it easy to read status and manage settings
- Quick Group Change: Change groups without the need to access a menu
- Sleek, lightweight design—it's easy to carry and use
In the Box Williams Sound DLR 360 Digi-Wave 3.0 Digital Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound DLR 360 Digi-Wave 3.0 Digital Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound DLR 360 Specs | Frequency Band | 2.4 GHz (ISM band) | | Modulation | FSK | | Multi Channel | Up to 15 simultaneous channels (one way mode) | | Material of Construction | Black ABS plastic | | Battery Type | 2 x AAA Alkaline or NiMH | | Battery Life | Alkaline Disposable (BAT 010-2): Up to 24 hours
NiMH Rechargeable (BAT 022-2): Up to 18 hours | | Power Save | Auto sleep mode after 5 minutes of no RF signal from compatible devices | | Frequency Response | -3 dB knee level
Conference Mode: 140 Hz to 11.5 kHz
Intercom Mode: 140 Hz to 7.6 kHz | | Signal to Noise Ratio (SNR) | 65 dB (A-weighted) | | Total Harmonic Distortion (THD) | 0.1% (typical) | | Antenna | Internal | | Headphone Output | 1/8" / 3.5 mm stereo jack with mono output for headphones, earphones, or neckloop
27 mW maximum at 33 Ohms
Internal speaker (disabled when headphone jack in use) | | Controls | Power, Volume +/-, Channel +/-, Setup, Battery Type | | Display | LCD shows battery level, RSSI, group/channel # | | Indicators | Red LED: Blinks when charging
Green LED: Stays on when charged | | Docking Connector | 30-pin iPod style for charging and audio out | | Compatible Transmitter | DLT 300 LN | | Temperature Range | 32.0 to 122.0°F / 0.0 to 50.0°C | | Approvals | FCC, Industry Canada, RoHS, CE, WEEE, RCM | | Dimensions (W x H x D) | 2.4 x 3.5 x 0.6" / 6.0 x 9.0 x 1.6 cm | | Weight | 1.7 oz / 47 g without batteries | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.0" |
