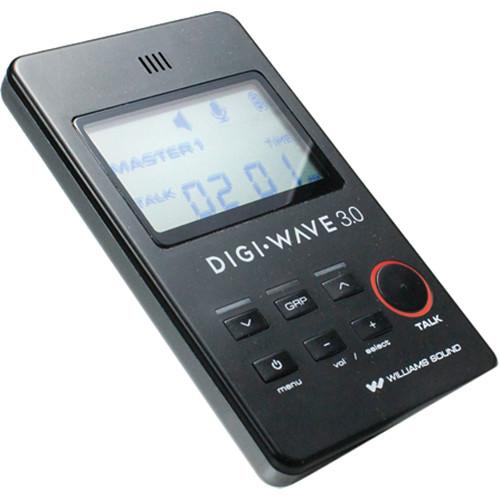

User Manual for Williams Sound DLT 300 Digi-Wave 3.0 Digital Transceiver Click to enlarge the picture
Contents of the user manual for the Williams Sound DLT 300 Digi-Wave 3.0
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound DLT 300 Digi-Wave 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The DLT 300 Digi-Wave Digital Transceiver from Williams Sound is a full duplex, 2.4 GHz band transceiver with FSK modulation and frequency-hopping software that reduces interference during two-way or one-way communication. When paired with a DLR 360 receiver—with the push of a button—users can access two-way communication for immediate interaction or question and answer applications. It is built with a rechargeable lithium polymer battery with smart charge and an LCD on the front panel that displays battery level, mode, time, channel number, group number, and number of other DLT's with the talk button on (up to 6). Other features include 1/8" microphone and headphone jacks. Furthermore, this transceiver features 15 simultaneous channels in interpretation mode, supports 4 simultaneous groups in two-way mode, allows a maximum of 4 simultaneous talkers in 2-way mode, and a maximum of 6 simultaneous talkers in intercom mode. The range of the DLT 300 Digi-Wave Digital Transceiver is 750'. - Up to six simultaneous talkers in two-way mode
- Increased range—up to 750' (depending on environment)
In the Box Williams Sound DLT 300 Digi-Wave 3.0 Digital Transceiver TFP 045 Universal Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound DLT 300 Digi-Wave 3.0 Digital Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound DLT 300 Specs | Operating Frequencies | 2.4 GHz (ISM band); 2402 to 2476 MHz FHSS | | Frequency Response | Conference Mode and Interpreter Mode: 140 Hz to 11.5 kHz
Intercom Mode: 140 Hz to 7.6 kHz | | Signal to Noise Ratio (SNR) | 74 dB (A-weighted, maximum output) | | Total Harmonic Distortion (THD) | 0.33% | | Microphone Input | Internal microphone (disabled when mic jack engaged) and 1/8" / 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63 dB range. | | Headphone Output | 1/8" / 3.5 mm phone jack, 33 Ohm load | | Audio Output | Max SSPL 90 111.8 dB (EAR 013), 116.8 dB (EAR 041) internal speaker (disabled when headphone jack in use) <20 mw @ 10% thd> | | Range | Up to 750' / 228.6 m (depending upon environmental conditions) | | Modulation | FSK | | RF Output | 14 dBm typical | | Security | 87-bit encryption, secure key code, setup lock (SLOC) | | Controls | Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, mic on/off, power on/off, tone control SLOC access and secure key access. System reset button (rear panel) | | Outputs | 1/8" / 3.5 mm stereo/mono headphone jack; 30-pin charging jack with audio out to base stations | | Side Tone | -12 dB below volume, tone variation (ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB) | | Indicators | LCD (group, channel, volume level, battery status, mode, and number of people with talk button on) | | LED Display | Charge status: Red LED around talk button when enabled | | Docking Connector | 30-pin connector for charging and audio in/out | | Compatible Receiver | DLR 360 only | | Approvals | FCC, Industry Canada, CE, RoHS, WEEE, and RCM | | Material of Construction | Black ABS plastic | | Battery Type | Lithium Polymer with smart charge built into transceiver; 2000 mAh | | Battery Life | Up to 14 hours talk time per charge
Current Consumption Range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx | | Power Save | Auto sleep mode after 5 minutes of no RF signal from compatible devices | | Charge Time | 5 hours | | Number of Simultaneous Users | Up to 15 simultaneous channels (0-14) (interpretation mode)
Up to 4 simultaneous groups (2-way mode)
Up to 4 simultaneous talkers per group (2-way mode)
Up to 6 simultaneous talkers per group (2-way intercom mode) | | Dimensions (W x H x D) | 4.07 x 2.43 x 0.44" / 10.34 x 6.17 x 1.12 cm | | Weight | 2.9 oz / 82.2 g including battery | | | | Package Weight | 0.535 lb | | Box Dimensions (LxWxH) | 6.05 x 4.2 x 2.85" |
