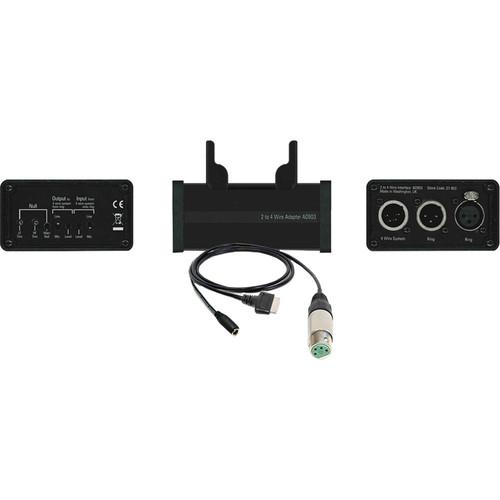

Product description The Williams Sound DW SY1 is a Digi-Wave intercom bridge designed to allow integration of wireless DLT 300 transceivers (available separately) into a Clear-Com 2-wire intercom system for crew members in a variety of indoor and outdoor events. It includes a sturdy and compact ADP 903 2-to-4 wire adapter, a BKT 032 Digi-Wave transceiver cradle, a WCA 127 interface cable, and a TFP 058 power supply. The DW SY1 supports unlimited Digi-Wave devices, up to six open microphones, and a maximum range of 750 feet. Connect the venue's existing Clear-Com 2-wire system to the ADP 903's XLR 3-pin male port, then use the WCA 127 interface cable to connect a DLT 300 to the ADP 903' XLR 4-pin male jack. A separate XLR 3-pin female socket allows easy looping to a beltpack station. The transceiver cradle secures your DLT 300 to the ADP 903 without permanent device modification. - Ideal for use in event production
- Aids in providing full-duplex communication between non-mobile and mobile crew members
- Expands an existing Clear-Com 2-wire intercom base system
- Supports up to six simultaneous open microphones and an unlimited number of Digi-Wave devices in a given area
- Included WCA 127 interface cable features a proprietary 30-pin connector (for compatibility with a DLT 300) splitting to an XLR 4-pin female jack and a female power port, which allows hook-up of the included power supply
In the Box Williams Sound DW SY1 Digi-Wave Intercom Bridge BKT 032 Digi-Wave Transceiver Cradle TFP 058 Power Supply WCA 127 Interface Cable Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound DW SY1 Digi-Wave Intercom Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound Digi-Wave Intercom Bridge Specs | 2-Wire Ports | 1 x XLR 3-pin male
1 x XLR 3-pin female (loop-through) | | 4-Wire Ports | 1 x XLR 4-pin male | | Input Level | -60 to +30 dBm into 10 kOhms nominal, balanced and floating | | Output Level | -60 to +18 dBm into 10 kOhms nominal, balanced and floating | | Controls | Mic/line switches
10 turn presets to external system input and output | | Power Requirement | 24 to 30 VDC at 15 mA from communications system | | Construction Material | Black anodized extruded case with glass-filled nylon bezels | | Dimensions (H x W x D) | 2.2 x 3.7 x 4.3" / 55 x 93 x 110 mm | | Weight | 14.8 oz / 420 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.1 x 6.6 x 6.3" |
