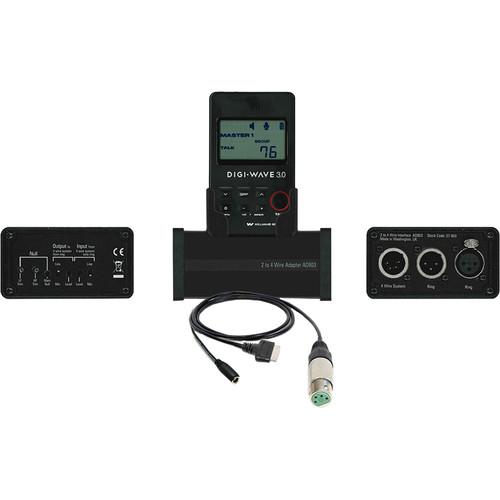

Product description The Williams Sound DW SY2 is a Digi-Wave intercom bridge and digital transceiver designed to allow integration of multiple wireless transceivers into a Clear-Com 2-wire intercom system for crew members in a variety of indoor and outdoor events. It includes a DLT 300 Digi-Wave 3.0 digital transceiver and the DW SY1, which features an ADP 903 2-to-4 wire adapter, a BKT 032 Digi-Wave transceiver cradle, a WCA 127 interface cable, and a TFP 058 power supply. The DW SY2 supports unlimited Digi-Wave devices, up to six open microphones, and a maximum range of 750 feet. Connect the venue's existing Clear-Com 2-wire system to the ADP 903's XLR 3-pin male port, then use the WCA 127 interface cable to connect the supplied DLT 300 to the ADP 903' XLR 4-pin male jack. A separate XLR 3-pin female socket allows easy looping to a beltpack station. The transceiver cradle secures the DLT 300 to the ADP 903 without permanent device modification. - DLT 300 Digi-Wave 3.0 Digital Transceiver The DLT 300 Digi-Wave Digital Transceiver from Williams Sound is a full duplex, 2.4 GHz band transceiver with FSK modulation and frequency-hopping software that reduces interference during two-way or one-way communication. When paired with a DLR 360 receiver—with the push of a button—users can access two-way communication for immediate interaction or question and answer applications. It is built with a rechargeable lithium polymer battery with smart charge and an LCD on the front panel that displays battery level, mode, time, channel number, group number, and number of other DLT's with the talk button on (up to 6). Other features include 1/8" microphone and headphone jacks. Furthermore, this transceiver features 15 simultaneous channels in interpretation mode, supports 4 simultaneous groups in two-way mode, allows a maximum of 4 simultaneous talkers in 2-way mode, and a maximum of 6 simultaneous talkers in intercom mode. The range of the DLT 300 Digi-Wave Digital Transceiver is 750'.
- Up to six simultaneous talkers in two-way mode
- Increased range—up to 750' (depending on environment)
- DW SY1 Digi-Wave Intercom Bridge The Williams Sound DW SY1 is a Digi-Wave intercom bridge designed to allow integration of wireless DLT 300 transceivers (available separately) into a Clear-Com 2-wire intercom system for crew members in a variety of indoor and outdoor events. It includes a sturdy and compact ADP 903 2-to-4 wire adapter, a BKT 032 Digi-Wave transceiver cradle, a WCA 127 interface cable, and a TFP 058 power supply. The DW SY1 supports unlimited Digi-Wave devices, up to six open microphones, and a maximum range of 750 feet. Connect the venue's existing Clear-Com 2-wire system to the ADP 903's XLR 3-pin male port, then use the WCA 127 interface cable to connect a DLT 300 to the ADP 903' XLR 4-pin male jack. A separate XLR 3-pin female socket allows easy looping to a beltpack station. The transceiver cradle secures your DLT 300 to the ADP 903 without permanent device modification.
- Ideal for use in event production
- Aids in providing full-duplex communication between non-mobile and mobile crew members
- Expands an existing Clear-Com 2-wire intercom base system
- Supports up to six simultaneous open microphones and an unlimited number of Digi-Wave devices in a given area
- Included WCA 127 interface cable features a proprietary 30-pin connector (for compatibility with a DLT 300) splitting to an XLR 4-pin female jack and a female power port, which allows hook-up of the included power supply
In the Box Bundle Items DLT 300 Digi-Wave 3.0 Digital Transceiver - TFP 045 Universal Power Supply
DW SY1 Digi-Wave Intercom Bridge yfqtyyrtwztwvxavbv - BKT 032 Digi-Wave Transceiver Cradle
Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound DW SY2 Digi-Wave Intercom Bridge with DLT 300 Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DLT 300 Digi-Wave 3.0 Digital Transceiver
| Operating Frequencies | 2.4 GHz (ISM band); 2402 to 2476 MHz FHSS | | Frequency Response | Conference Mode and Interpreter Mode: 140 Hz to 11.5 kHz
Intercom Mode: 140 Hz to 7.6 kHz | | Signal to Noise Ratio (SNR) | 74 dB (A-weighted, maximum output) | | Total Harmonic Distortion (THD) | 0.33% | | Microphone Input | Internal microphone (disabled when mic jack engaged) and 1/8" / 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63 dB range. | | Headphone Output | 1/8" / 3.5 mm phone jack, 33 Ohm load | | Audio Output | Max SSPL 90 111.8 dB (EAR 013), 116.8 dB (EAR 041) internal speaker (disabled when headphone jack in use) <20 mw @ 10% thd> | | Range | Up to 750' / 228.6 m (depending upon environmental conditions) | | Modulation | FSK | | RF Output | 14 dBm typical | | Security | 87-bit encryption, secure key code, setup lock (SLOC) | | Controls | Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, mic on/off, power on/off, tone control SLOC access and secure key access. System reset button (rear panel) | | Outputs | 1/8" / 3.5 mm stereo/mono headphone jack; 30-pin charging jack with audio out to base stations | | Side Tone | -12 dB below volume, tone variation (ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB) | | Indicators | LCD (group, channel, volume level, battery status, mode, and number of people with talk button on) | | LED Display | Charge status: Red LED around talk button when enabled | | Docking Connector | 30-pin connector for charging and audio in/out | | Compatible Receiver | DLR 360 only | | Approvals | FCC, Industry Canada, CE, RoHS, WEEE, and RCM | | Material of Construction | Black ABS plastic | | Battery Type | Lithium Polymer with smart charge built into transceiver; 2000 mAh | | Battery Life | Up to 14 hours talk time per charge
Current Consumption Range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx | | Power Save | Auto sleep mode after 5 minutes of no RF signal from compatible devices | | Charge Time | 5 hours | | Number of Simultaneous Users | Up to 15 simultaneous channels (0-14) (interpretation mode)
Up to 4 simultaneous groups (2-way mode)
Up to 4 simultaneous talkers per group (2-way mode)
Up to 6 simultaneous talkers per group (2-way intercom mode) | | Dimensions (W x H x D) | 4.07 x 2.43 x 0.44" / 10.34 x 6.17 x 1.12 cm | | Weight | 2.9 oz / 82.2 g including battery | | | | Box Dimensions (LxWxH) | 6.05 x 4.2 x 2.85" | - DW SY1 Digi-Wave Intercom Bridge
| 2-Wire Ports | 1 x XLR 3-pin male
1 x XLR 3-pin female (loop-through) | | 4-Wire Ports | 1 x XLR 4-pin male | | Input Level | -60 to +30 dBm into 10 kOhms nominal, balanced and floating | | Output Level | -60 to +18 dBm into 10 kOhms nominal, balanced and floating | | Controls | Mic/line switches
10 turn presets to external system input and output | | Power Requirement | 24 to 30 VDC at 15 mA from communications system | | Construction Material | Black anodized extruded case with glass-filled nylon bezels | | Dimensions (H x W x D) | 2.2 x 3.7 x 4.3" / 55 x 93 x 110 mm | | Weight | 14.8 oz / 420 g | | | | Box Dimensions (LxWxH) | 8.1 x 6.6 x 6.3" |
