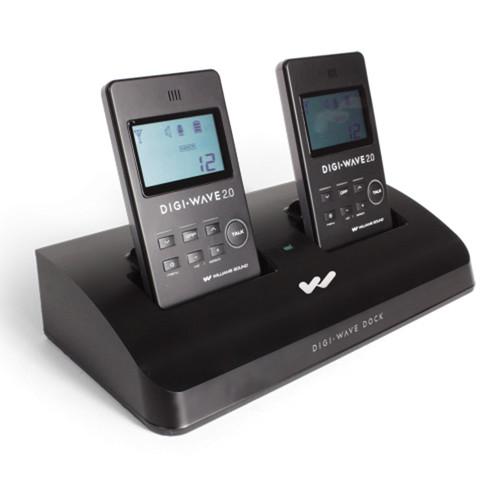

User Manual for Williams Sound DWD 102 Digi-Wave 2-Unit Dock Click to enlarge the picture
Contents of the user manual for the Williams Sound DWD 102 Digi-Wave 2-Unit
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound DWD 102 Digi-Wave 2-Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The DWD 102 Digi-Wave 2-Unit Dock from Williams Sound allows you to connect up to 2 Digi-Wave units to a fixed audio system. Each of its 2 bays features independent RCA and XLR I/O, and are capable of powering and charging your Digi-Wave devices. - Applications
-
- Digi-Wave can be used as a presentation system, permitting multiple presenters, without the need for a mixer or multiple wireless microphones
- Digi-Wave can be added as a wireless connection to teleconferencing or wired intercom systems
- Allow connection and powering of individual interpreter transmitters when the Digi-Wave is used in the language interpretation mode
- Access to all sound systems
- Separate inputs and outputs in each bay RCA or XLR input/output option
- Charges DLT 100 2.0 transceivers and DLR 60 2.0 receivers
In the Box Williams Sound DWD 102 Digi-Wave 2-Unit Dock TFP 048 Power Supply for PPA T45 and PPA T45NET vryyqaeeftxffxsxwy WLC 004 Line Cord 2 x WCA 078 Stereo RCA Cables 4 x 1/8" Thick RBP 005 Support Pads 4 x 1/16" Thick RBP 006 Support Pads Limited 2-Year Warranty Brochure PDF 597.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound DWD 102 Digi-Wave 2-Unit Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound DWD 102 Specs | DC Power Input | 2.5 mm ID barrel connector, 24 VDC input, 750 mA, Center Positive | | Power Supply | Williams Sound TFP 048
Input: 100-240 VAC 50/60 Hz, 18 W
Output: 24 VDC, 750 mA | | Charging Time | DLT 100 2.0: 5 hours nominal (internal Lithium Polymer Battery)
DLR 60 2.0: 5 hours nominal, based on Williams Sound NiMH battery BAT 022-2 | | Capacity | Unit Capacity:
2 Units: DLT 100 2.0, DLR 60 2.0, or DLR 60
DLT 100 units will charge only (no audio) | | Indicators | Green LED indicating power at the charger/dock
Charging status is shown on unit being charged | | Inputs | 2x RCA (L,R) per bay
1x XLR F per bay | | Outputs | 2x RCA (L,R) per bay
1x XLR M per bay | | Connector | Dock Connector: 1x 30-pin connector per bay; supports power/charging, audio in, audio out, and control signals | | Controls | 1x 2-position switch per bay, for manual or auto modes | | Dimensions (L x W x H) | 8.9 x 4.3 x 2.2" (226 x 110 x 55 mm) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.0 x 6.75 x 4.25" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
