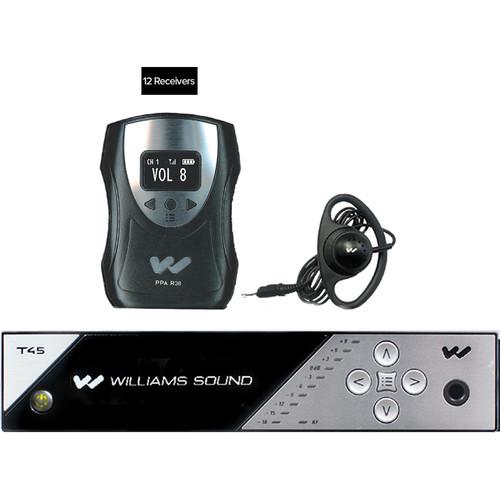

Product description The Williams Sound FM 458-12 Personal PA FM Assistive Listening System is a complete turnkey solution designed to help individuals needing auditory assistance or language interpretation overcome background noise, reverberation, and distance from the sound source. It includes a PPA T45 transmitter with multiple digital audio input options and an OLED display with easy-to-manage menu navigation, 12 PPA R38N bodypack receivers, each featuring an OLED display and on-screen channel selection with access to 17 preset frequencies, 12 EAR 022 surround earphones, and 3 NKL 001 neckloops. Ideal for large-group listening scenarios, the FM 458-12 provides crystal-clear sound anywhere within an operating range up to 1000'. The system is expandable with additional PPA R38N bodypack receivers (available separately) to accommodate any number of listeners. Also included is an ANT 025 whip antenna, a TFP 048 power supply, a WLC 004 main power cord, a 3' WCA 013 RCA audio cable, 12 2-packs of AA alkaline batteries, and an IDP 008 ADA wall plaque. Note: This system complies with 2010 ADA guidelines for hearing assistance and is approved by the FCC for operation in U.S. markets. - PPA T45 Assistive Listening Transmitter The Williams Sound PPA T45 transmitter offers multiple digital audio input options, and an OLED high-resolution screen with simple menu navigation. It features 3 microprocessors and high-quality audio and RF performance, designed to take the guesswork out of complex audio installations. Simply select among voice, music, or hearing assistance in the application preset menu, and this transmitter quickly configures itself. With a range of up to 1000 feet, the PPA T45 is ideal for large venues where superior coverage is essential.
- Features:
-
- Multiple digital audio inputs (AES, SPDIF) provide direct connection to digital signal sources
- OLED high-resolution screen with simplified menu navigation, offers comprehensive and convenient access to full system functions
- DSP audio processing
- Sleek and stylish new design
- Simple set-up and operation
- 1000’ operating range
- OLED display, push-button menus
- Microprocessor controlled
- Adjustable RF power output
- Combo XLR, 1/4” TRS inputs
- Lifetime PLUS Limited Warranty (90 days on accessories)
- PPA SelectView FM Receiver The Williams Sound PPA SelectView FM Receiver is an FM receiver for assisted listening applications. It features a high-resolution OLED screen that provides a quick view of receiver status and immediate entry to all user settings. The receiver has on-screen channel selection with access to 17 pre-set, wideband frequencies (72 to 76 MHz).
The PPA SelectView is digitally synthesized to provide audio clarity and stability and also features digital tuning, digital squelch and battery-saving sleep mode. A belt clip is included. - OLED high-resolution screen provides a quick view of receiver status
- All user settings are accessible via the on-screen menu - including all 17 wideband channels.
- Works with rechargeable or non-rechargeable batteries
- 4-step battery level indication
- Display shows channel or frequency
- Step/seek function allows user to increment channel manually, or seek to the next active channel
- Sleep Mode/Auto-Off saves battery power
- EAR 022 Surround Earphone The Williams Sound EAR022 is a single-sided, clip-on earphone ideal for use with personal listening devices. The clip is designed to fully surround the ear for maximum stability and comfort. The monaural 1/8" mini-plug is compatible with a wide variety of devices.
-
- Hangs on outside of the ear
- Plug: 1/8" mono
- Cord: 3.3'
- Monaural
- 32 Ohms
- Recommended for FM receivers and select IR receivers
- Designed for individuals with mild and low gain hearing loss
- NKL 001 Induction Neckloop for T-Switch Hearing Aids The Williams Sound NKL 001 is an induction neckloop designed to magnetically couple an audio signal to a telephone coil-equipped (T-Switch) hearing aid. The neckloop has a standard 1/8" mini plug that can be connected to any audio device that has an 8-16 Ohm 1/8" output, such as a beltpack receiver, TV, tape player, etc. The neckloop has a slider so you can adjust the tension, and the 18" cord provides a good amount of slack for use with body-worn devices.
-
- Integrated safety breakaway device
- Cord Length: 18"
- Adult size
- Connector: 1/8" mono plug
- Monoaural
- Impedance: 8 to 16 Ohms
- Recommended for FM receivers and select IR receivers
- For individuals with moderate to severe hearing loss
- IDP008 - ADA Wall Plaque for Hearing Assistance The IDP008 from Williams Sound is a self-adhesive wall plaque that alerts your patrons to the fact that your establishment has a hearing assistance system. Perfect for theaters, auditoriums, and more, the plaque is large and easy-to-see.
- AA Alkaline Battery (2-Pack) This Williams Sound AA Alkaline Battery 2-pack is compatible with several FM listening systems, receivers, transmitters, earphones, headphones, and more.
In the Box Bundle Items PPA T45 Assistive Listening Transmitter frqvrsrrrwtqcquweevcfyvuebfevderyrret - ANT025 - 39" Telescoping Whip Antenna for T45 Transmitter
- TFP 048 Power Supply for PPA T45 and PPA T45NET
- WLC 004 3-Pin US Main Power Cord for CHG 3512 Charger, IC-2 Control Console, and WIR TX75 Transmitter (Black, 7.5')
- WCA 013 RCA Audio Cable (3')
- Limted 90-Day Warranty on Accessories
12 x PPA SelectView FM Receiver - Limited Lifetime Warranty
12 x EAR 022 Surround Earphone 3 x NKL 001 Induction Neckloop for T-Switch Hearing Aids IDP008 - ADA Wall Plaque for Hearing Assistance 12 x AA Alkaline Battery (2-Pack) Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound FM 458-12 Personal PA FM Assistive Listening System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PPA T45 Assistive Listening Transmitter
Rack Mount | Standard 19" Rack, one EIA rack space high, 1/2 space wide 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) rack mount kits | Power Supply | Desktop-style transformer (TFP 048)
Input: 100-240 VAC, 50/60 Hz, IEC line cord
Output: 24 VDC, 750 mA, 18 W, 2.5 mm ID center positive barrel connector
Approvals: UL, CUL, Energy Star V, CSA listed | Indicators | Power Indicators: Push On/Push Off latching power button, backlit Green indicates Power ON, back-lit off indicates power OFFAudio Level Indicators: 10-LED array that reads -18 to +9 dB at 3 dB intervals. 7 Green, 2 Amber, and 1 red LED. Green LEDS indicate normal operating audio level peaks, Amber LEDS indicate close to overload peaks, Red LED indicates overload peaks | Temperature Range | Operating: +32 to +104°F (0 to 40°C) Storage: -4 to +158°F (-20 to 70°C) | Menu Options | Audio Presets (Music, Voice, Hearing Assist, Custom), Frequency/Channel selection, Frequency/Channel mode, Audio Input Source (Microphone, Line, Phantom, Digital AES/EB, Digital S/PDIF), High Pass Filter, Low Pass Filter, Compression, RF Output Power, Screen Saver Delay, Test Tone (400 Hz), Headphone Volume, Headphone Source | Operating Frequencies | 72.1 to 75.9 MHz, 17 wideband channels (selectable) | Frequency Accuracy | ±2 ppm stability, 32 to 122°F (0 to 50˚C) | Deviation | ±75 kHz maximum | Pre-Emphasis | 75 µsec | RF | - RF Field Strength: Does not exceed 80 mV/m at 9.8' (3.0 m)
- RF Timer: Menu selectable - 30 Min, 4 Hours, or Always On
Time starts when no audio is present - RF Power: Menu selectable - High, Medium, Low, OFF
- RF Outputs: (1x) #10-32 stud connector in center of unit (PCB mounted), (1x) F-connector on rear chassis
- RF Transmit Indicator: 1 Green LED, indicates RF “ON”
| Antenna Type | Compatible Antennas: ANT 005, ANT 021, ANT 024, or ANT 025 | Transmission Range | Up to 1000' (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector | Audio Processing Functions | DSP, Compression: 1:1, 1.5:1 or 2:1, High Pass and Low Pass Filter Frequency control | Frequency Response | 31 Hz to 16 kHz, ±3 dB ("Music" audio preset) | Signal-to-Noise Ratio | ≥74 dB Transmitted RF | Total Harmonic Distortion | Less than 0.25% @ 1 kHz (RF output) | Common Mode Rejection | >57 dB @ 1 kHz, Mic or Line | Audio Inputs | 1x combination 3-pin XLR, 1/4" TRS jack for mic or line level analog audio, balanced or unbalanced line level, or microphone with selectable phantom power 1x XLR for digital audio, AES3/EBU, supported sample rates 44.1 and 48 kHz 1x RCA for digital audio, S/PDIF, supported sample rates 44.1 and 48 kHz | Gain Adjustment | In menu, adjustable to 0 to -50 dB, in 1 dB steps | Phantom Power | 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack | Input Level | Microphone: -55 dBV (1.7 mV RMS), nominal (1st amber LED) -15 dBV (180 mV RMS), overload warning (displayed on screen) +20 dBV (10.0 V RMS), absolute maximum ratings
Line: -25 dBV (55 mV RMS), nominal (1st amber LED) +16 dBV (6.3 V RMS), overload warning (displayed on screen) +20 dBV (10.0 V RMS), absolute maximum ratings | Headphone Output | 1/4" TRS stereo jack, mono signal, 15.7 mW, maximum in 33 Ohms (level adjustable in menu 0 to -40 dB in 2 dB steps) | Line Output | RCA jack (black), -10 dBV (.32 V RMS), output impedance 100 Ohms | Ethernet | RJ-45 on back of unit (PPA T45NET only) | Approvals | FCC, RoHS2, WEEE, Industry Canada | Dimensions | 8.45 x 8.25 x 1.72" (21.5 x 21 x 4.4 cm) | Weight | Transmitter: 3.0 lb (1.36 kg) | | Box Dimensions (LxWxH) | 12.756 x 10.551 x 3.543" | - PPA SelectView FM Receiver
Battery Type | 2x AA Alkaline or NiMH rechargeable | Battery Life | Alkaline Batteries: 50 hours, approximate Rechargeable NiMH Batteries (1,500 mAh): 32 hours, approximate | Current Consumption | 52 mA, nominal | Operating Temperature Range | 32 to 122° F (0 to 50° C) | Channels | 17x Wideband, accessed via menu | Operating Frequencies | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz | FM Deviation | 75 kHz | De-Emphasis | 75 µS | Screen | 1" (25.4 mm) OLED | Power Indication | Power Button: Backlit green Good Battery Strength: Glows solid Low Battery: flashes | Sensitivity | 2 µV at 12 dB Sinad with squelch defeated | Input Overload | 100 mV | Frequency Response | 200 Hz to 15 kHz, ±3 dB | Modulation | FM, ±75 kHz peak deviation | Signal to Noise Ratio | Minimum 65 dB @ 1.0 V | Antenna | Receive Antenna: Integral with earphone/headphone cord | Audio Output | 35 mW maximum at 16 Ohms | Headphone Connector | 1/8" (3.5 mm) stereo jack, mono output for stereo or mono earphones/headphones | Power Save Mode | Enters sleep mode after approximately 3 minutes of no RF signal | Construction | ABS plastic with aluminum face plate | Dimensions (H x W x D) | 4.1 x 2.9 x 1.4" (104 x 72 x 35 mm) | Weight | With Batteries: 4.6 oz (130 g) Without Batteries: 2.6 oz (73 g) | | Box Dimensions (LxWxH) | 3.858 x 2.52 x 1.181" | - EAR 022 Surround Earphone
Style | Around-ear speaker | Plug | 1/8" / 3.5 mm mono | Driver Size | 0.9" / 23.0 mm | Nominal Impedance | 32 Ohms | Frequency Response | 20 Hz to 20 kHz | Power Input | 30 mW | Sensitivity | 118 dB @ 1 kHz | Cord Length | 39.0" / 99.1 cm | Weight | 0.5 oz / 15.0 g | | Box Dimensions (LxWxH) | 2.7 x 2.2 x 0.3" | - NKL 001 Induction Neckloop for T-Switch Hearing Aids
Magnetic Field Strength | 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop 85μW input produces 0.1 A/m (IEC Standard) | Input Power | 500 mW max | Impedance | 8 to 16 Ohms | Connector | 1/8" / 3.5 mm mono mini-plug | Cable Length | 18 / 457 mm | Color | Black | Approvals | RoHS, WEEE | Weight | 1.5 oz / 43 g | | Box Dimensions (LxWxH) | 5.6 x 4.1 x 1.0" | - IDP008 - ADA Wall Plaque for Hearing Assistance
Dimensions (WxH) | 6.5 x 10.5" (165 x 266 mm) | | Box Dimensions (LxWxH) | 7.3 x 4.3 x 0.1" | - AA Alkaline Battery (2-Pack)
| Battery Type | 2 x AA | Battery Chemistry | Alkaline | Battery Voltage | 1.2 V | | Box Dimensions (LxWxH) | 1.9 x 1.0 x 0.5" |
