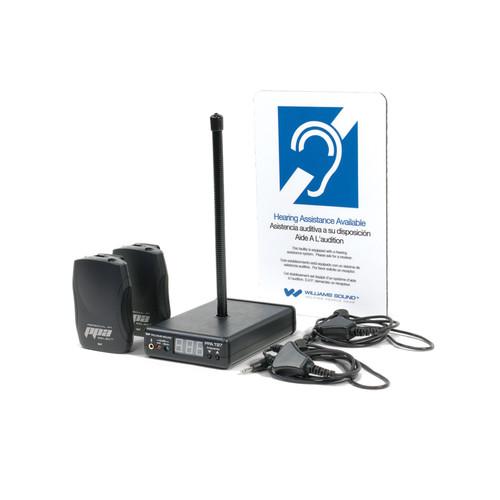

Product description The FM ADA KIT 1 FM ADA Compliance Kit from Williams Sound is a portable, all-in-one ADA compliance kit that meets the requirement set by the Americans with Disabilities Act that public facilities must provide equal access to people with disabilities, including those who are hard of hearing. The kit includes everything you need to accommodate 2 individuals for hearing accessibility in a small group setting.
The system includes a PPA T27 transmitter, which can be placed virtually anywhere thanks to its compact design. It accepts mic and line level audio signals via 3.5mm and RCA connectors, and provides a transmission distance of up to 500' by using FM wireless technology. The PPA R37 beltpack receivers are compact and ergonomic, and can be clipped to a belt or slipped into a pocket for convenient use. The receivers can be used with the included earphones, or with the induction neckloops for users with T-switch hearing aids. Four AA alkaline batteries are included for the receivers. An ADA plaque is also included, which can be applied to a wall so that people can see that you have assistance available for the hard of hearing. Note: The FM ADA Compliance Kit is approved by the FCC for operation in US markets. The system cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation. FCC rules limit use of this equipment to auditory assistance. - PPAT27 - Compact Base Station FM Transmitter The PPAT27 from Williams Sound is a high-quality, compact base station transmitter for use in movie theaters, classrooms, houses of worship, and more. It accepts audio via the RCA line input jack or 3.5mm mic jack, and transmits the audio over an FM radio signal to any FM receiver, such as the PPAR35, tuned to the same frequency.

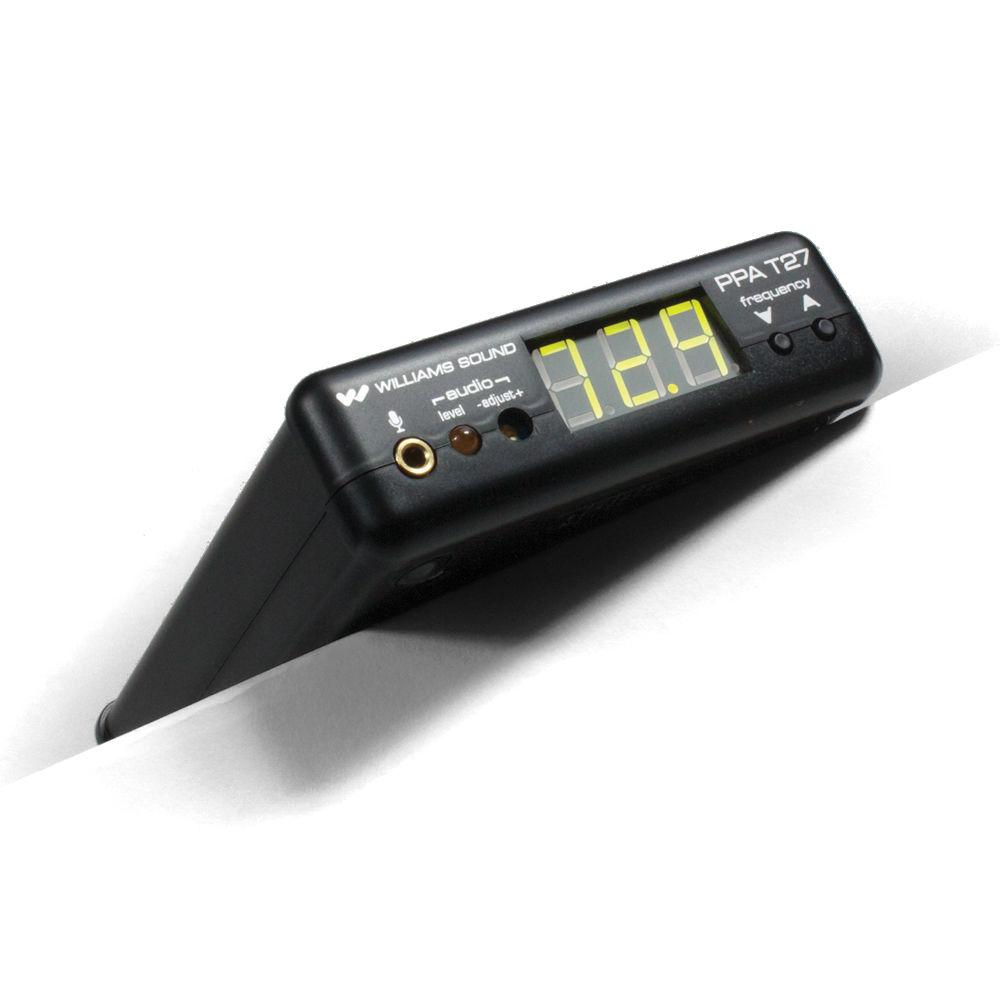

The compact size of the transmitter allows you to place it virtually anywhere, and it's designed to be easily used by anyone. An LED display shows the frequency, and a handy level adjustment control is located on the front panel for setting the audio level. Frequency selector buttons let you set the operating frequency at one of 17 steps between 72.1 and 75.9MHz. The included antenna sits neatly on top of the transmitter, and provides transmission distances of up to 500'. - Compact base station transmitter can be placed virtually anywhere in a theater, classroom, auditorium, and more
- Accepts mic and line level audio signals via the 3.5mm and RCA connectors
- Transmission range of up to 500' with included antenna 1
Please Note: The ANT005 coaxial antenna (sold separately) increases transmission range up to 1000'. close - High-quality FM transmission on one of 17 easily-selectable channels
- Easy-to-use interface with a large LCD screen

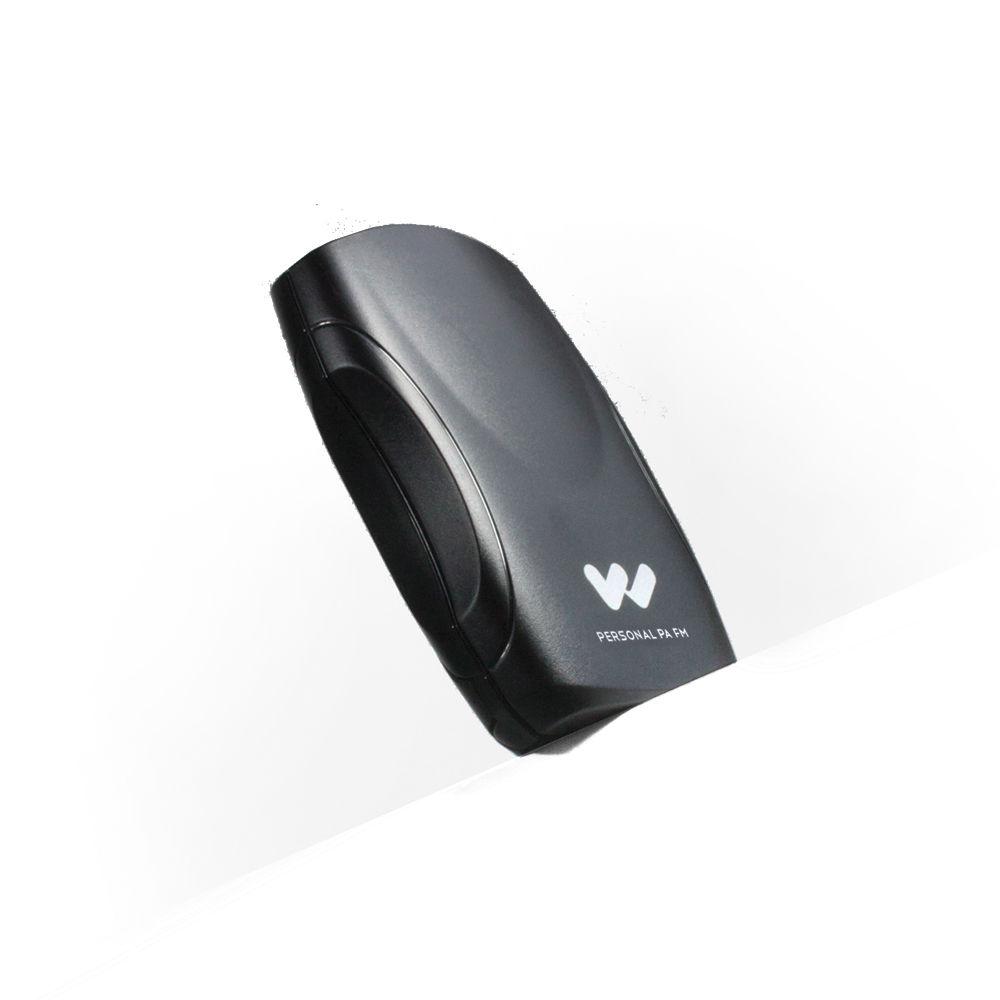

- PPA R37 N Select Channel FM Receiver (No Earphone/Batteries) The PPA R37 N Select Channel FM Receiver (No Earphone/Batteries) from Williams Sound is a compact and easy-to-use beltpack receiver that allows you to listen to an FM signal in the 72-76MHz band. The receiver offers seek button channel selection between 17 pre-set frequencies, which are digitally synthesized for terrific audio clarity and signal stability. It also features a channel lock capability to prevent accidental changes.
The receiver has an ergonomic design with a detachable belt clip, allowing you to slip it into your pocket or conveniently clip it to your clothing. The standard-sized 3.5mm headphone jack is compatible with mono and stereo headphones and earphones, and also supports induction neckloops and telecoil-equipped hearing aids. The receiver operates on a pair of standard alkaline AA batteries (sold separately). A sleep mode helps to preserve battery life. Note: This receiver requires a transmitter operating on a 72-76MHz band. Compatible Williams Sound transmitters: PPA T35, T27, T32, and T36. This receiver is approved by the FCC for operation in US Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76MHz operation.
You must supply your own earphones/headphones and AA batteries. - Ideal for assisted listening applications in schools, houses of worship, auditoriums, theaters, and more
- Compact and easy-to-use design allows you to listen to an FM signal in the 72-76MHz band 1
Please Note: Transmitter required, sold separately. close - The receiver's seek button lets you choose between 17 pre-set frequencies, which are digitally synthesized for terrific audio clarity and signal stability. The channel lock capability prevents accidental changes to channel settings
- The ergonomic design and detachable belt clip allow you to slip it into your pocket or conveniently clip it to your clothing
- The standard-sized 3.5mm headphone jack is compatible with mono and stereo headphones and earphones, and also supports induction neckloops and telecoil-equipped hearing aids
- Operates on a pair of standard alkaline AA batteries (sold separately). A sleep mode helps to preserve battery life

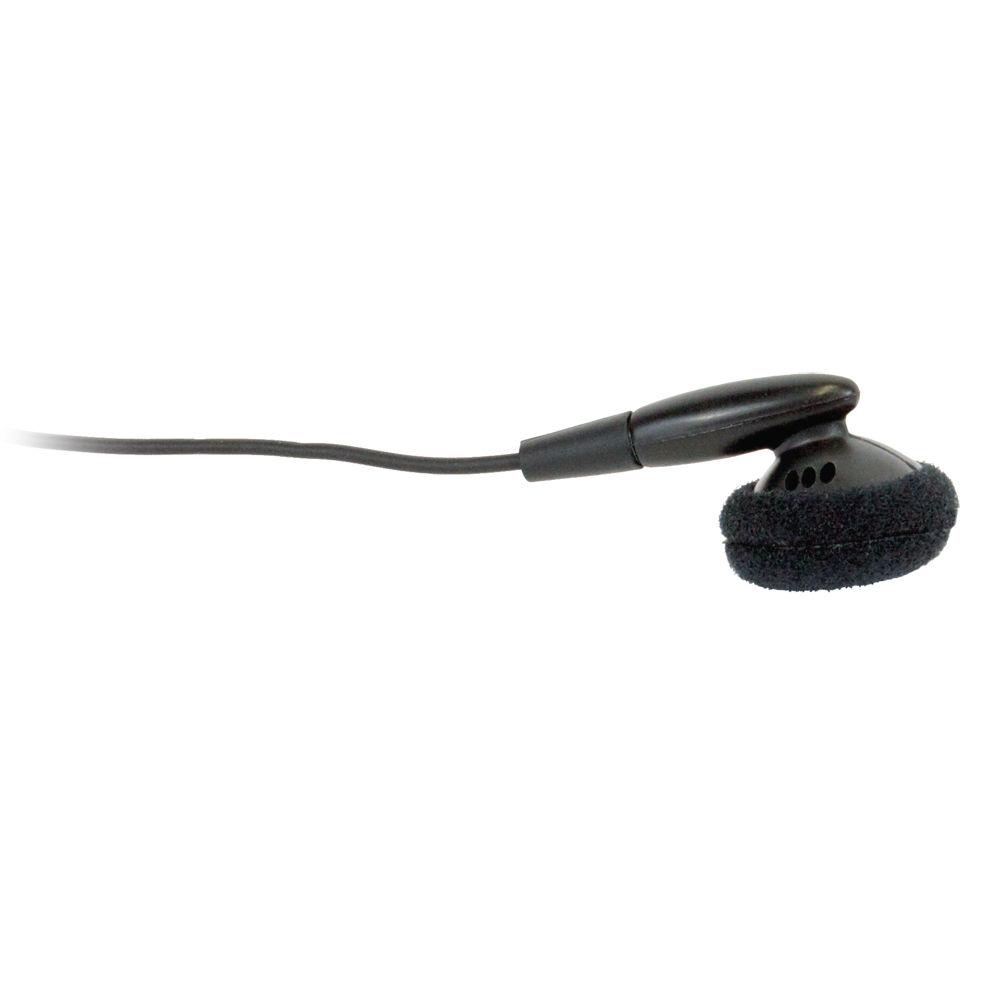

- EAR 013 Single Mono Earbud The Williams Sound EAR 013 Single Mono Earbud is ideal for use with bodypack receivers as part of assistive listening or tour guide systems. The foam earpad provides comfort, while the 39" cord provides plenty of slack. The standard 3.5mm mono plug is compatible with a wide variety of devices.
-
- Fits in the outer part of the ear
- Excellent sound quality
- 1/8" mono plug
- 39" cord
- Monoaural
- 32 Ohms
- Recommended for FM receivers and select IR receivers
- Designed for individuals with mild to moderate hearing loss
- NKL 001 Induction Neckloop for T-Switch Hearing Aids The Williams Sound NKL 001 is an induction neckloop designed to magnetically couple an audio signal to a telephone coil-equipped (T-Switch) hearing aid. The neckloop has a standard 1/8" mini plug that can be connected to any audio device that has an 8-16 Ohm 1/8" output, such as a beltpack receiver, TV, tape player, etc. The neckloop has a slider so you can adjust the tension, and the 18" cord provides a good amount of slack for use with body-worn devices.
-
- Integrated safety breakaway device
- Cord Length: 18"
- Adult size
- Connector: 1/8" mono plug
- Monoaural
- Impedance: 8 to 16 Ohms
- Recommended for FM receivers and select IR receivers
- For individuals with moderate to severe hearing loss
- IDP008 - ADA Wall Plaque for Hearing Assistance The IDP008 from Williams Sound is a self-adhesive wall plaque that alerts your patrons to the fact that your establishment has a hearing assistance system. Perfect for theaters, auditoriums, and more, the plaque is large and easy-to-see.
In the Box Bundle Items PPAT27 - Compact Base Station FM Transmitter ryzuxtfretvwbzvzarey - 5-Year Limited Warranty (Transmitter)
90-Day Limited Warranty (Accessories) 2 x PPA R37 N Select Channel FM Receiver (No Earphone/Batteries) - Limited Lifetime Warranty
2 x EAR 013 Single Mono Earbud 2 x NKL 001 Induction Neckloop for T-Switch Hearing Aids IDP008 - ADA Wall Plaque for Hearing Assistance
Also Includes - 4 x AA Alkaline Batteries
- Limited 5-Year Warranty on Parts and Labor
- Limited 90-Day Warranty on Cords, Headphones, Batteries, and Other Accessories
Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound FM ADA KIT 1 FM ADA Compliance Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PPAT27 - Compact Base Station FM Transmitter
| Operating Frequency | 72.1-75.9MHz in 17 Steps (User-Selectable) | | RF Field Strength | 80mV/m @ 3m, Max | | Range | Up to 500' (152m) with Included Antenna | | Modulation | FM, 75kHz Deviation, Max | | Frequency Stability | ±0.005% | | Frequency Response | 85Hz - 14kHz, ±3dB | | Distortion | 1% Max THD | | Signal to Noise Ratio | 65dB with R35 Receiver | | Connectors | 1 x 3.5mm Mic Input
1 x RCA Phono Line Input
1 x Power Input | | Dimensions (WxDxH) | 4.1 x 6.1 x 1.3" (104 x 155 x 33mm) | | Weight | 7.8 oz (221g) | | | | Box Dimensions (LxWxH) | 9.7 x 5.4 x 3.3" | - PPA R37 N Select Channel FM Receiver (No Earphone/Batteries)
| Channels | 17, Accessed via Seek Button in Battery Compartment | | Operating Frequency | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9MHz
75kHz Intermediate Frequency | | Deviation | 75kHz | | De-Emphasis | 75µS | | Range | AFC Range: ±120kHz | | Sensitivity | 2µV @ 12dB Sinad with Quelch Defeated | | Max Input Signal | 100mV | | Frequency Response | 200Hz - 15kHz | | Modulation | FM, ±75kHz Peak Deviation | | Signal to Noise Ratio | 65dB Min @ 100µV | | Output Level | 35mW Max, Peak into 16 Ohms | | Connectors | 3.5mm Stereo/Mono Headphone Jack | | Antenna | Uses Earphone/Headphone Cord as Antenna | | Battery | 2 x AA Alkaline or NiMH
Up to 50 Hours Life with Alkaline, Up to 32 Hours with Rechargeable NiMH
Enters Sleep Mode After 6 mins with no RF Signal | | Current Consumption | 52mA, Nominal | | Indicators | Green Power LED (Flashes for Low Battery) | | Temperature Range | 32 to 122°F (0 to 50°C) | | Approvals | FCC, Industry Canada, RoHS, WEEE | | Finish | Black | | Dimensions (HxWxD) | 4.1 x 2.85 x 1.38" (104 x 72 x 35mm) | | Weight | 4.6 oz (130g) (With Batteries)
2.6 oz (73g) (Without Batteries) | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" | - EAR 013 Single Mono Earbud
| Cable Length | 39.0" / 99.1 cm | | Connector | 1/8" / 3.5 mm mono plug | | Impedance | 32 Ohms | | Frequency Range | 20 Hz to 20 kHz | | Max Input Signal | 5 mV | | Sensitivity | 128 dB @ 1 kHz | | Driver Size | 0.5" / 13.0 mm | | Replacement Parts | Replacement Earpad: EAR 015 | | Dimensions | Not specified by manufacturer | | Weight | 0.3 oz / 9.0 g | | | | Box Dimensions (LxWxH) | 3.15 x 2.75 x 0.65" | - NKL 001 Induction Neckloop for T-Switch Hearing Aids
| Magnetic Field Strength | 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop
85μW input produces 0.1 A/m (IEC Standard) | | Input Power | 500 mW max | | Impedance | 8 to 16 Ohms | | Connector | 1/8" / 3.5 mm mono mini-plug | | Cable Length | 18 / 457 mm | | Color | Black | | Approvals | RoHS, WEEE | | Weight | 1.5 oz / 43 g | | | | Box Dimensions (LxWxH) | 5.6 x 4.1 x 1.0" | - IDP008 - ADA Wall Plaque for Hearing Assistance
| Dimensions (WxH) | 6.5 x 10.5" (165 x 266 mm) | | | | Box Dimensions (LxWxH) | 7.3 x 4.3 x 0.1" |
