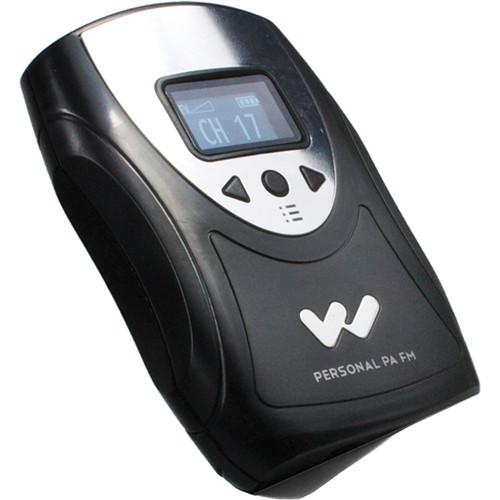

User Manual for Williams Sound FM R38 - PPA R38N SelectView FM Receiver with Surround Earphone Click to enlarge the picture
Contents of the user manual for the Williams Sound FM R38 - PPA
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound FM R38 - PPA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The Williams Sound FM R38 includes a PPA R38N receiver with a belt clip, an EAR 022 surround earphone, and a pack of two AA batteries to power the unit. Compatible with all Williams Sound 72-76 MHz wideband transmitters, the receiver features a high-resolution OLED screen for on-screen channel selection and is designed to provide audio clarity and stability to help individuals with mild hearing loss overcome distance from the sound source. - PPA SelectView FM Receiver The Williams Sound PPA SelectView FM Receiver is an FM receiver for assisted listening applications. It features a high-resolution OLED screen that provides a quick view of receiver status and immediate entry to all user settings. The receiver has on-screen channel selection with access to 17 pre-set, wideband frequencies (72 to 76 MHz).
The PPA SelectView is digitally synthesized to provide audio clarity and stability and also features digital tuning, digital squelch and battery-saving sleep mode. A belt clip is included. - OLED high-resolution screen provides a quick view of receiver status
- All user settings are accessible via the on-screen menu - including all 17 wideband channels.
- Works with rechargeable or non-rechargeable batteries
- 4-step battery level indication
- Display shows channel or frequency
- Step/seek function allows user to increment channel manually, or seek to the next active channel
- Sleep Mode/Auto-Off saves battery power
- EAR 022 Surround Earphone The Williams Sound EAR022 is a single-sided, clip-on earphone ideal for use with personal listening devices. The clip is designed to fully surround the ear for maximum stability and comfort. The monaural 1/8" mini-plug is compatible with a wide variety of devices.
-
- Hangs on outside of the ear
- Plug: 1/8" mono
- Cord: 3.3'
- Monaural
- 32 Ohms
- Recommended for FM receivers and select IR receivers
- Designed for individuals with mild and low gain hearing loss
- AA Alkaline Battery (2-Pack) This Williams Sound AA Alkaline Battery 2-pack is compatible with several FM listening systems, receivers, transmitters, earphones, headphones, and more.
In the Box Bundle Items PPA SelectView FM Receiver - Limited Lifetime Warranty
EAR 022 Surround Earphone AA Alkaline Battery (2-Pack) Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound FM R38 - PPA R38N SelectView FM Receiver with Surround Earphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PPA SelectView FM Receiver
| Battery Type | 2x AA Alkaline or NiMH rechargeable | | Battery Life | Alkaline Batteries: 50 hours, approximate
Rechargeable NiMH Batteries (1,500 mAh): 32 hours, approximate | | Current Consumption | 52 mA, nominal | | Operating Temperature Range | 32 to 122° F (0 to 50° C) | | Channels | 17x Wideband, accessed via menu | | Operating Frequencies | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz | | FM Deviation | 75 kHz | | De-Emphasis | 75 µS | | Screen | 1" (25.4 mm) OLED | | Power Indication | Power Button: Backlit green
Good Battery Strength: Glows solid
Low Battery: flashes | | Sensitivity | 2 µV at 12 dB Sinad with squelch defeated | | Input Overload | 100 mV | | Frequency Response | 200 Hz to 15 kHz, ±3 dB | | Modulation | FM, ±75 kHz peak deviation | | Signal to Noise Ratio | Minimum 65 dB @ 1.0 V | | Antenna | Receive Antenna: Integral with earphone/headphone cord | | Audio Output | 35 mW maximum at 16 Ohms | | Headphone Connector | 1/8" (3.5 mm) stereo jack, mono output for stereo or mono earphones/headphones | | Power Save Mode | Enters sleep mode after approximately 3 minutes of no RF signal | | Construction | ABS plastic with aluminum face plate | | Dimensions (H x W x D) | 4.1 x 2.9 x 1.4" (104 x 72 x 35 mm) | | Weight | With Batteries: 4.6 oz (130 g)
Without Batteries: 2.6 oz (73 g) | | | | Box Dimensions (LxWxH) | 3.858 x 2.52 x 1.181" | - EAR 022 Surround Earphone
| Style | Around-ear speaker | | Plug | 1/8" / 3.5 mm mono | | Driver Size | 0.9" / 23.0 mm | | Nominal Impedance | 32 Ohms | | Frequency Response | 20 Hz to 20 kHz | | Power Input | 30 mW | | Sensitivity | 118 dB @ 1 kHz | | Cord Length | 39.0" / 99.1 cm | | Weight | 0.5 oz / 15.0 g | | | | Box Dimensions (LxWxH) | 2.7 x 2.2 x 0.3" | - AA Alkaline Battery (2-Pack)
| | | Battery Type | 2 x AA | | Battery Chemistry | Alkaline | | Battery Voltage | 1.2 V | | | | Box Dimensions (LxWxH) | 1.9 x 1.0 x 0.5" |
