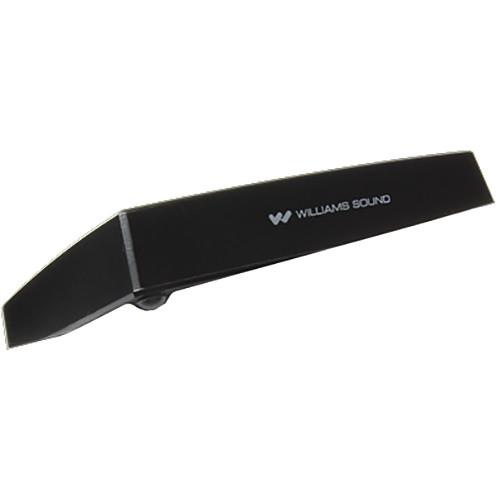

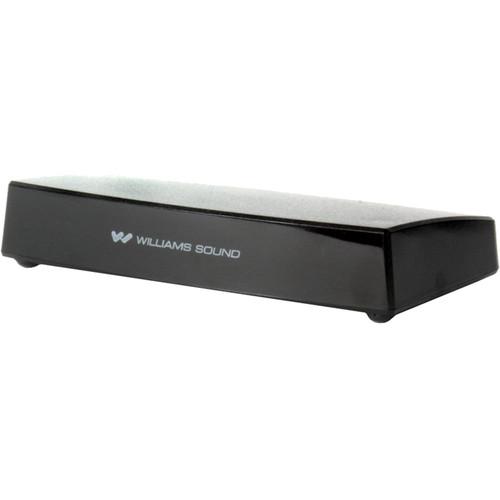

User Manual for Williams Sound IR T1 Small Area Infrared Transmitter for Assistive Listening Click to enlarge the picture
Contents of the user manual for the Williams Sound IR T1 Small Area
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
 |
User manual for the Williams Sound IR T1 Small Area contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The Williams Sound IR T1 is a dual-channel, infrared base transmitter designed for assistive listening in small areas. It is compatible with the WIR RX22-4 and WIR RX18 receivers and is well-suited for private TV listening in conference rooms, hospital rooms, assisted-living facilities, medical treatment centers, jury deliberation rooms, and more.Easy to set up, the IR T1 features an 1/8" input jack that accepts any line level stereo audio. The operating frequencies (2.3/2.8 MHz) minimize high-efficiency lighting interference for a clear sound and provide a coverage area up to 1000 ft².Three LEDs display power status and audio input strength. If a minimum acceptable audio level is not present on a channel, after twelve minutes that channel will automatically go into sleep/power-save mode to decrease power consumption by 80%.The IR T1 can be mounted on any camera tripod stand with a 1/4"-20 threaded connector. It ships with a power supply and USB power cable, an 1/8" stereo audio cable, and an adapter cable for use with a TV equipped with an RCA audio output. - Key Features
-
- Two-channel infrared transmitter for assistive listening in small areas
- For private TV listening in conference rooms, hospital rooms, assisted-living facilities, medical treatment centers, jury deliberation rooms, and more
- Compatible with WIR RX22-4 and WIR RX18 receivers
- Easy, plug-and-play setup
- 1/8" jack accepts any line level stereo audio input
- Coverage area up to 1000 ft²
- Sleep mode/power-save feature
- Compact design

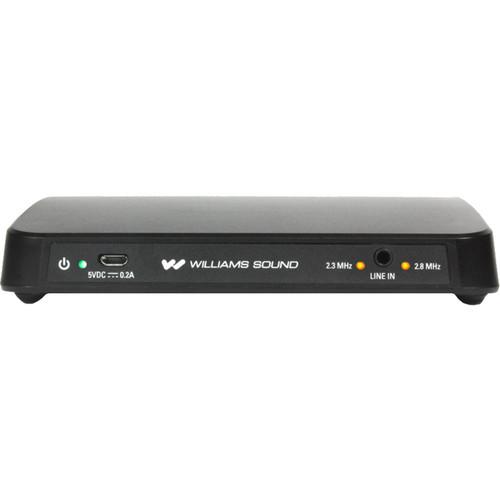

- High-efficiency LEDs display power status and audio input
- Can be mounted on any camera tripod stand with a 1/4”-20 threaded connector
- Optional mounting options include the STD 008 TV top shelf mounting kit and the BKT 024 omnidirectional mount for wall or ceiling mounting
- Power with included A/C power supply
- Power from a standard USB port on a TV via the included USB cable
- No FCC license or radio approval is required
In the Box Williams Sound IR T1 Small Area Infrared Transmitter for Assistive Listening Power Supply for Pocketalker 2.0 (USA) International AC Adapter Tips WCA 055 1/8" Male-to-Male, Stereo Audio Cable (6') USB 2.0 Charger Cable for Pocketalker 2.0 Power Supply WCA 124 Adapter Cable (1/8" Female to RCA Male) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound IR T1 Small Area Infrared Transmitter for Assistive Listening in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound IR T1 Specs | Compatible Receivers | WIR RX22-4
WIR RX18 | | Modulation | Wideband FM
± 50 kHz deviation maximum
50 μs pre-emphasis | | Audio Carrier Frequencies | Channel 1: 2.3 MHz
Channel 2: 2.8 MHz
Default at Power On: Carriers off
Carriers are automatically enabled upon presence of audio | | Coverage Area | 1000 ft
