User Manual for Williams Sound PKT 2.0 Pocketalker Personal Amplifier Click to enlarge the picture
Contents of the user manual for the Williams Sound PKT 2.0 Pocketalker Personal
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound PKT 2.0 Pocketalker Personal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|

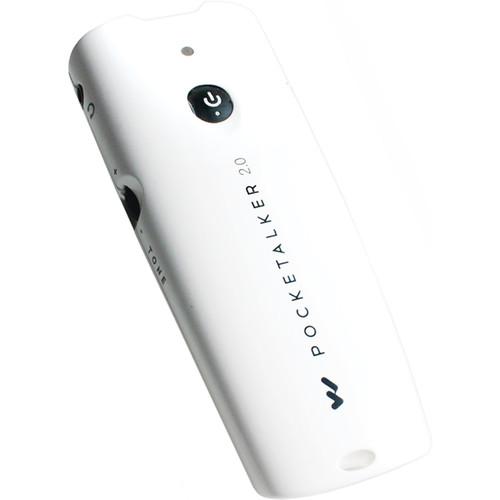

Product description The Williams Sound PKT 2.0 Pocketalker is a versatile, high-quality assistive listening device designed to improve communications in difficult listening situations. This personal amplifier offers on-board tone controls that allow you to tailor your listening experience with high-quality sound and a broad frequency range. The Pocketalker system includes dual stereo isolation earphones, a pair of stereo headphones, a plug-in microphone, two AAA alkaline batteries, a lanyard, and a 1/8" / 3.5mm cable with mounting clips. -
- Ergonomic, lightweight design
- Extended high and low frequency range
- Internal microphone
- Built-in T-coil loop compatible
- Rechargeable ready
UPC: 707976051677 In the Box Williams Sound PKT 2.0 Pocketalker Personal Amplifier EAR 042 In-Ear Stereo Headphones cbfxqyqbedatbevyevzfdxrr HED 024 Stereo Headphones MIC014 - Plug Mount Omnidirectional Microphone AA Alkaline Battery (2-Pack) 3.5mm Male to 3.5mm Female Phone Jack Mono Cable with 2 PLC 004 Mic Clips (12') Lanyard for Digi-Wave DLR 60 and DLR 360 Receivers Limited 5-Year Warranty (Parts and Labor) Limited 90-Day Warranty (Accessories) Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound PKT 2.0 Pocketalker Personal Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PKT 2.0 Specs | Microphone | Internal: Omnidirectional MEMS microphone (micro-electro-mechanical system)
External(Optional): Omnidirectional, plug-in electret microphone with foam windscreen and 3.5mm mono plug (MIC 014-R). | | Indicators & Controls | On/Off Switch: Internal with LED indicator
Tone Control: External rotary control knob allows user to adjust high/low frequency to optimize hearing
Balance Control: Adjusts left/right volume balance Power/Volume Control: External rotary volume control knob with integrated power ON-OFF switch | | Inputs and Outputs | Microphone Jack: 3.5 mm, stereo mini plug (Tip=Mic signal, Ring=NC, Sleeve=Gnd)
Headphone Jack: 3.5 mm, stereo mini plug (Tip=Left/Mono, Ring=Right, Sleeve=Gnd) | | Power Output | 52 mW (max) into 32 ohms (Stereo) | | ACL | Automatic Level Control: Limits maximum output level | | THD | 1% maximum | | Maximum Gain | 63 dB at 2.5 kHz (Tone=High) | | Frequency Response | Tone Control (High Position): 2.7 dB boost at 5 kHz, 6.7 dB cut at 400 Hz
Tone Control (Mid Position): 0.6 dB cut at 5 kHz, 2.9 dB cut at 400 Hz
Tone Control (Low Position): 2.0 dB cut at 5 kHz, 3.0 dB boost at 400 Hz | | Optional Accessories | Clip (CLP 014): Allows the user to clip MIC 014 to clothing such as a lapel or shirt pocket
Lanyard (RCS 003): Allows user to wear unit around the neck, or as a wrist strap
Extension Cord (WCA 007 WC): 1/8 to 1/8" / 3.5 mm to 3.5 mm cord extends an external microphone to 12 ft
Stereo Earphones / Headphones / Neckloop: EAR 042 / HED 024, HED 036 / NKL 001-S (stereo) Neckloop
Mono Earphones / Headphones / Neckloop: EAR 013, EAR 008, EAR 022, EAR 041 / HED 021, HED 027 / NKL 001 (mono) Neckloop
Charging Kits: BAT KT7 (US), BAT KT8 (Intl) | | Material of Construction | White ABS/Polycarbonate molded plastic case | | Battery Type | 2x 1.5 V (AAA size), Alkaline or NiMH rechargeable (Williams Sound BAT 010-2 Alkaline or BAT 022-2 NiMH recommended) | | Battery Life | Up to 105 hours (typical usage) with the BAT 010-2
Low Battery Indicator: Power "On" Green light on front panel flashes | | Battery Charging | Charging: 16 hours with BAT 022-2 (Red LED blinks when charging)
End of Charge: Red LED is on solid. (At end of charge, maintenance charge is provided)
NOTE: Charging requires optional charging kit BAT KT7 or BAT KT8 | | Dimension (L x W x H) | 4.9 x 2.0 x 1.0" / 124.0 x 51.0 x 25.0 mm | | Weight | 3.1 oz / 87.9 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.5 x 6.1 x 2.3" |
