User Manual for Williams Sound PLA 90 Counter Loop Click to enlarge the picture
Contents of the user manual for the Williams Sound PLA 90 Counter Loop
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
 |
User manual for the Williams Sound PLA 90 Counter Loop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|

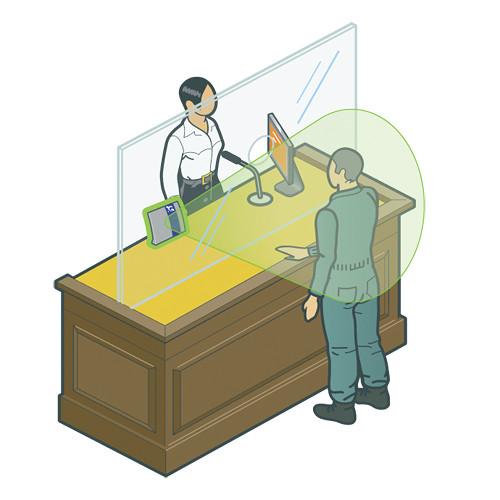

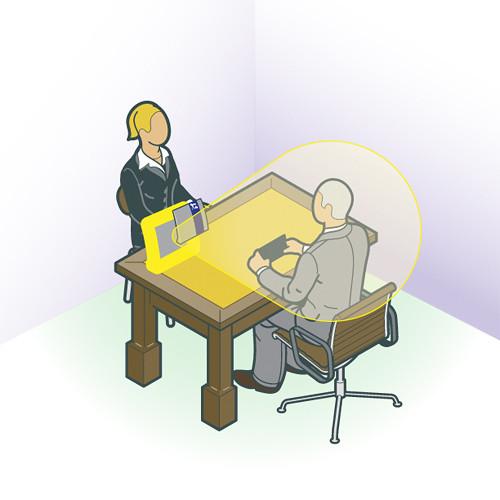

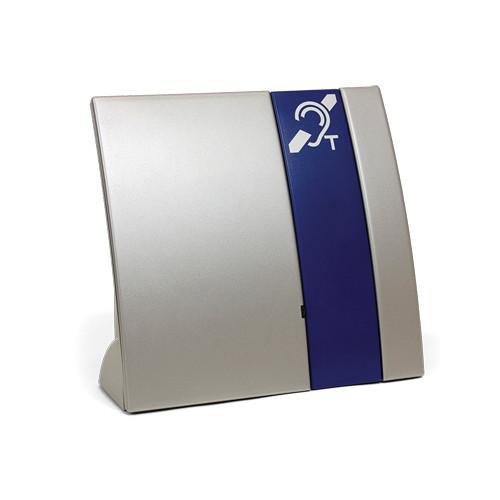

Product description The Williams Sound PLA 90 Counter Loop is a portable induction loop system designed to accommodate individuals with hearing difficulties in such scenarios as at a bank teller window, information desk, store counter or anywhere customers/visitors need to hear what is being said. The PLA 90 picks up external voices with an integrated microphone or with an optional external microphone. The system transmits the spoken word directly and clearly to a listener's hearing aid equipped with a T-coil. Designed to meet ADA accessibility requirements. - Magnetic signal couples directly to hearing aids equipped with telecoils (T-coils)
- Headphone output for users without a hearing aid
- Can be used with optional loop receivers
- Can be portable or permanently installed
- Auto shut-off on battery power
- Meets ADA / ADAAG guidelines
In the Box Williams Sound PLA 90 Counter Loop Rechargeable 10x AA NiMH Battery Pack TFP 046 International Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound PLA 90 Counter Loop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PLA 90 Specs | Range | 3 to 4' (1 m), approximate | | Microphone Sensitivity | Internal Microphones: 60 dB for full output | | Controls | Power on and power off
Rotary microphone gain for external mic
Three-position Microphone selector switch, internal, external or internal plus external microphones | | Auto Power Off | 2-minute timeout if no audio from internal or external mic while using battery only | | Indicators | Red LED flashing indicates charging battery
Green LED indicates system operating
Amber LED indicates audio input is being received | | Input | 1/8" (3.5 mm) mono jack for external microphone | | Output | 1/8" (3.5 mm) stereo headphone | | Power Supply | Universal 100 - 240 VAC 50/60 Hz input, 16 VDC, 1 A output, center positive | | Battery | 12 VDC, 1300 mA/h NiMH (10 AA cell pack) | | Battery Life | 6 hours with full 4 hours recharge time | | Loop Output Power | Maximum 10 W, internal loop coil | | Dimensions (H x W x D) | 7.9 x 7.3 x 2.9" (200 x 185 x 75 mm) | | Weight | 1.4 lb (635 g), with batteries | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.8 x 9.5 x 3.3" |
