User Manual for Williams Sound Pocketalker Ultra System Duo Pack Click to enlarge the picture
Contents of the user manual for the Williams Sound Pocketalker Ultra System Duo
- Product category: Assistive Listening Systems Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Assistive Listening Systems
|
User manual for the Williams Sound Pocketalker Ultra System Duo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|

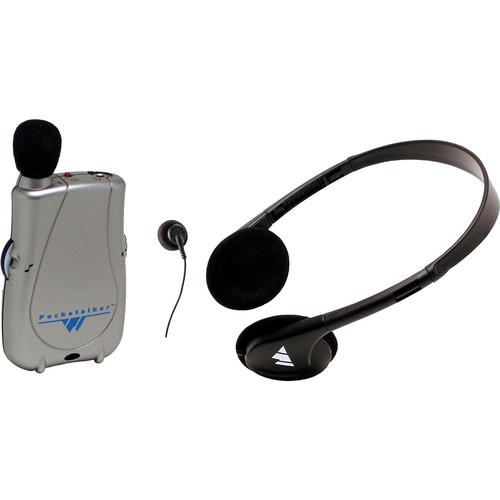

Product description The Williams Sound Pocketalker Ultra System Duo Pack is a portable, intuitive personal listening system intended to improve audio detail and reduce noise while listening to conversations, speeches, performances television and more. The system includes a pocket sized amplifier with a plug-in omnidirectional microphone, volume dial and headphone output. The EAR 013 single mini earbud and HED 021 deluxe headphone are both included in the system. Also included is a 12' audio cable for private television listening. The amplifier features a volume dial and runs up to 200 hours on 2x 1.5 AAA batteries. - Enhances private listening
- Maximizes detail and reduces noise
- Includes an earbud and headset
- Includes belt clip, lanyard and TV listening cord
UPC: 707976050113 In the Box Williams Sound Pocketalker Ultra System Duo Pack PKT D1-0 - Pocketalker Ultra Personal Amplifier EAR 013 Single Mono Earbud HED 021 Folding Mono Headphones 3.5mm Male to 3.5mm Female Phone Jack Mono Cable with 2 PLC 004 Mic Clips (12') MIC014 - Plug Mount Omnidirectional Microphone 2 x AAA Alkaline Batteries Belt Clip Lanyard 5 Year Warranty (Parts & Labor) 90 Day Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound Pocketalker Ultra System Duo Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PKT D1-EH Specs | Power Supply | Battery Type: Two 1.5V (AAA size) alkaline
Battery Life: Up to 200 hours (typical usage) Electrical Specifications (1k Hz ref.): Power output: 50mW (max) into 16ohms AGC: Limits maximum output level | | Indicator Lights | Low Battery Indicator: Red light on top panel flashes | | Microphone | Omnidirectional, electret microphone assembled in housing with foam wind screen and 3.5mm mono plug | | Tone Control | External rotary control knob to allow user to optimize hearing | | Volume Control | External rotary control knob with power On-Off switch | | Microphone/Headphone Jack | Mic: 1/8" (3.5mm) mono, gold plated mini plug
Headphone: 1/8" (3.5mm) mono, gold plated mini plug | | Distortion | 2% THD (max) | | Frequency Response | Tone at high position: 11dB boost at 5kHz, 8dB cut at 400 Hz.
Tone at mid position: 0dB boost at 5kHz, 4dB cut at 400Hz. Tone at low position: 3dB cut at 5kHz, 4dB boost at 400 Hz. | | Color | Silver gray, ABS/Polycarbonate molded plastic case | | Approvals | CE, RoHS, WEEE | | Headphones | Lightweight headphone, HED 021: (with 6cc coupler)
SSPL90: 124.3 dB (Tone High), 124.8dB (Tone Mid), 124.8dB (Tone Low) HF Ave (SSPL90): 120.7dB (Tone High), 120.6dB (Tone Mid), 120.5dB (Tone Low)
HF Ave full on gain: (50 dB) 46.9dB (Tone High), 44.9dB (Tone Mid), 41dB (Tone Low) Ref test gain: 43.7dB (Tone High), 43.6dB (Tone Mid), 41.5dB (Tone Low) | | Earphone | Mini earphone single, EAR 013: (with 2cc coupler)
SSPL90: 123.8 dB (Tone High), 124dB (Tone Mid), 123.2dB (Tone Low) HF Ave (SSPL90): 118.7dB (Tone High), 118.6dB (Tone Mid), 118.6dB (Tone Low)
HF Ave full on gain: (50 dB) 44.7dB (Tone High), 44.2dB (Tone Mid), 38.9dB (Tone Low) Ref test gain: 41.7dB (Tone High), 41.6dB (Tone Mid), 39.2dB (Tone Low) | | Exterior Dimensions (LxWxD) | 3.38 x 2.23 x 0.88" (85.8 x 56.6 x 22.3 mm)
Not including belt clip or microphone assembly | | Weight | 2.5 oz. (70.9 grams) (with batteries and microphone) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.4 x 7.1 x 2.7" |
