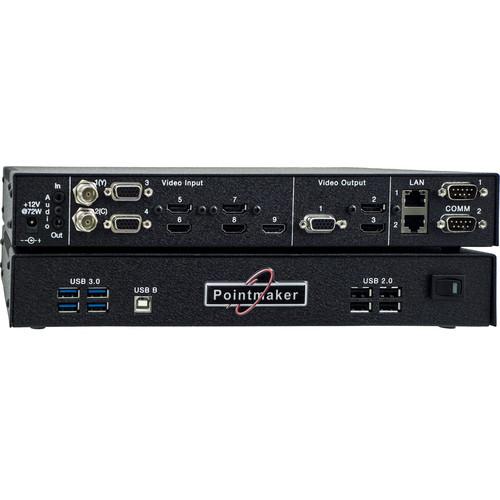

Product description The Williams Sound Pointmaker CPN-6000 is an HDCP- and HID-compliant miniature live streaming annotation system offering versatile annotation and control functionality for presenters and instructors in meetings, conferences, and educational facilities. Give wireless presentations and annotate via your iPad (available separately), or utilize a touchscreen, digitizing tablet, keyboard, or electronic whiteboard. Save annotated images and print directly to a color Postscript printer. Five HDMI inputs, two VGA inputs, and two BNC composite inputs accommodate video input resolutions up to 1920 x 1080, and scale any input to 4:3, 16:9, or 16:10 aspect ratios at up to 1920 x 1200 output resolution. Video outputs include two HDMI ports and one VGA connector. Route analog audio via 3.5mm I/O connectors or extract HDMI audio to the analog output. A dedicated menu allows volume adjustments for the analog and digital I/O as well as the master output. Two RJ45 sockets are provided for audio/video streaming and remote control. Connect a variety of USB devices such as a computer or USB flash drive via the eight USB Type-A ports and single USB Type-B port. The CPN-6000 includes a pair of rack ears, keyboard, 16GB USB flash drive, and power supply with an IEC power cable. - iPad Presentations
- Give wireless presentations from your iPad (available separately) to a big screen or projector. The CPN-6000 also works in conjunction with the free PVI Control app, which allows presenters to execute commands, select video sources, and annotate from an iPad.
- Live Video Streaming
- Stream video of any non-HDCP source, with a minimal delay to the Windows 7 Stream Viewer app. Stream to the iPad with the latest version of the PVI Control app (streams to iPad 3 and 4, plus iPad mini).
- Audio Streaming
- With the addition of streaming audio, users now have three ways to output audio: by passing it over digital video, using the analog audio out, or by streaming audio over a network.
- Digital Audio Extractor
- The CPN-6000 features a digital audio de-embedder/embedder with analog stereo output, eliminating the need to buy an audio breakout or extractor box. It also offers the ability to switch audio with the digital video signal.
- Volume Control
- The volume menu in the CPN-6000 allows independent fine-tuning of analog and digital outputs, and features a master control to adjust overall volume. As with other commonly used Pointmaker features, volume can also be controlled from most third-party control systems.
- EDID Control
- Change the reported native resolution of the Pointmaker via the EDID (Extended Display Identification Device) menu. By default, the CPN-6000 reports a native resolution of 1920 x 1080 at 60 Hz, but users can now change this reported resolution. This feature is particularly useful to force a resolution change in a connected video source, such as a computer.
- Flexible Video I/O
- The CPN-6000 offers two HDCP outputs. With a total of nine video inputs, two digital video outputs, and one analog video output, this model easily integrates in a variety of scenarios.
- Focus Audience Attention
- Draw, write, or highlight over documents, photos, slides, live web pages, or AV images (even HDCP).
- Built-In Video Switcher
- Remotely switch between nine video sources and create custom source labels.
- HID Compliant
- The CPN-6000 not only works with hundreds of non-HID (Human Interface Device) devices, it also recognizes HID-compliant touch screens, allowing for a greatly expanded list of compatible models.
- Versatile Controller Support
- Utilize iPads with iOS 6 or later, approved touchscreens, digitizing tablets, keyboards, or electronic whiteboards as controllers for the CPN-6000.
- Color Printing
- The CPN-6000 supports UNIX LP printing directly from the unit to a color Postscript printer.
- Image Saving
- Save annotated images to your iPad photo album, USB flash drive, or via TFTP.
In the Box Williams Sound Pointmaker CPN-6000 Live Streaming Annotation System with Built-In Video Switcher 2 x Rack Ears Keyboard 16GB USB Flash Drive Power Supply IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound Pointmaker CPN-6000 Live Streaming Annotation System with Built-In Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound CPN-6000 Specs | Audio Inputs | 1 x 1/8" / 3.5 mm TRS | | Audio Outputs | 1 x 1/8" / 3.5 mm TRS | | Video Inputs | 5 x HDMI
2 x VGA 15-pin female
2 x BNC composite (or 1 x Y/C) | | Video Outputs | 2 x HDMI
1 x VGA 15-pin female | | Ethernet | 2 x RJ45 | | USB | 4 x USB 3.1 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x USB Type-B | | Control Ports | 2 x DB9 male RS-232 | | Maximum Video Resolution | Input: Up to 1920 x 1080p
Output: Up to 1920 x 1200 | | Aspect Ratios Supported | 4:3, 16:9, 16:10 | | HDCP Version | 1.4 | | Operating Temperature | 34 to 131°F / 0 to 55°C (approximately) | | Power Requirement | 12 VDC, 72 W, 6 A center-positive power adapter | | Dimensions (W x H x D) | 11.9 x 1.8 x 7.4" / 30.2 x 4.4 x 18.7 cm | | Weight | 2.5 lb / 1.1 kg (approximately) |
