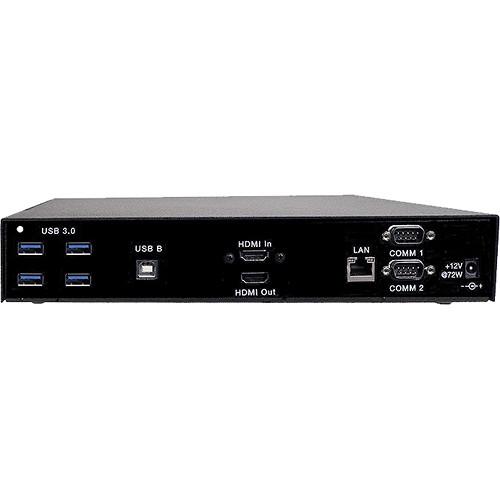

User Manual for Williams Sound Pointmaker CR-100 Courtroom Annotation System Click to enlarge the picture
Contents of the user manual for the Williams Sound Pointmaker CR-100 Courtroom Annotation
- Product category: Whiteboard & Easel Display Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Whiteboard & Easel Display Accessories
|
User manual for the Williams Sound Pointmaker CR-100 Courtroom Annotation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The Williams Sound Pointmaker CR-100 is an HDCP- and HID-compliant live streaming annotation system offering versatile annotation and control functionality for presenters, attorneys, and witnesses in courtrooms. Give presentations and annotate via a touchscreen, digitizing tablet, keyboard, or electronic whiteboard. Save annotated images and print directly to a color Postscript printer. The HDMI input accommodates video resolutions up to 1920 x 1080, while the HDMI output can send video at up 1920 x 1200 resolution. Audio pass-through via HDMI is supported. An RJ45 socket is provided for audio/video streaming and remote control. Connect a variety of USB devices such as a computer or USB flash drive via the four USB Type-A ports and single USB Type-B port. With all connections on the rear panel, the CR-100 allows tidy and secure courtroom installation. It includes a pair of rack ears, a keyboard, a 16GB USB flash drive, and a power supply with an IEC power cable. - Focus Judge & Jury Attention
- Draw or highlight over details in documents, photos, slides, or AV images.
- Easy Configuration
- In large installations, the CR-100 can be connected as an input to (and output from) a matrix switcher, allowing annotation over any video looped through the CR-100. You can also quickly connect the CR-100 in small installations that use only a laptop and document camera.
- Smooth Switching
- With refined features and simplified design, the CR-100 switches smoothly and seamlessly with increased reliability and compatibility.
- Small Footprint
- At just under 12" wide and 1 RU high, the CR-100 leaves room for other equipment. With all connections on the rear panel, it yields a clean and tidy installation.
- HID Compliant
- The CR-100 not only works with hundreds of non-HID (Human Interface Device) devices, it also recognizes HID-compliant touch screens, allowing for a greatly expanded list of compatible models.
- Versatile Controller Support
- Utilize approved touchscreens, digitizing tablets, keyboards, or electronic whiteboards as controllers for the CR-100.
- Color Printing
- The CR-100 supports color printing to a Postscript printer.
- Image Saving
- Save annotated images to your USB flash drive, via TFTP, or by setting up a Windows Share on your computer.
- HDCP
- The CR-100 is HDCP compliant and supports HDMI video up to 1920 x 1200 resolution. It also permits HDMI audio pass-through and automatic reset/reboot functionality.
- Touchscreen Features
- Clear annotations touchscreen by touchscreen. Unobtrusive reminder prompts can be seen in touchscreen corners.
- Practice Your Presentations
- Download the free PVI Trainer iPad app, available to help you practice annotations before entering the courtroom.
In the Box Williams Sound Pointmaker CR-100 Courtroom Annotation System 2 x Rack Ears Keyboard 16GB USB Flash Drive Power Supply IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound Pointmaker CR-100 Courtroom Annotation System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound CR-100 Specs | Video Inputs | 1 x HDMI | | Video Outputs | 1 x HDMI | | Ethernet | 1 x RJ45 | | USB | 4 x USB 3.1 Gen 1 Type-A
1 x USB Type-B | | Control Ports | 2 x DB-9 male RS-232 | | Maximum Video Resolution | Input: Up to 1920 x 1080
Output: Up to 1920 x 1200 | | HDCP Version | 1.4 | | Operating Temperature | 34 to 131°F / 0 to 55°C (approximately) | | Power Requirement | 12 VDC, 72 W, 6 A center-positive power adapter | | Dimensions (W x H x D) | 11.9 x 1.8 x 7.4" / 30.2 x 4.5 x 18.7 cm | | Weight | 2.5 lb / 1.1 kg (approximately) |
