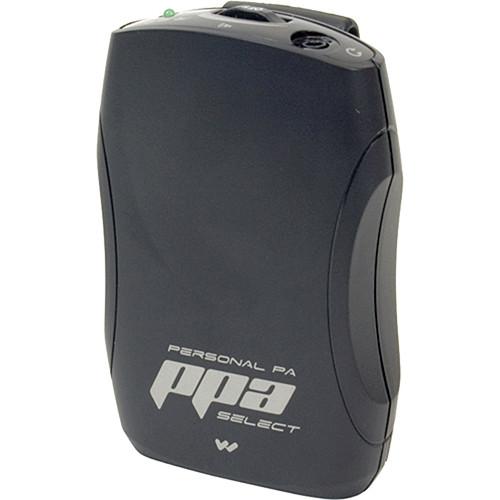

User Manual for Williams Sound PPA R37-00 Select Channel FM Receiver Click to enlarge the picture
Contents of the user manual for the Williams Sound PPA R37-00 Select Channel
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound PPA R37-00 Select Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The PPA R37-00 Select Channel FM Receiver (No Earphone) from Williams Sound is a compact and easy-to-use beltpack receiver that allows you to listen to an FM signal in the 72-76MHz band. The receiver offers seek button channel selection between 17 pre-set frequencies, which are digitally synthesized for terrific audio clarity and signal stability. It also features a channel lock capability to prevent accidental changes.
The receiver has an ergonomic design with a detachable belt clip, allowing you to slip it into your pocket or conveniently clip it to your clothing. The standard-sized 3.5mm headphone jack is compatible with mono and stereo headphones and earphones, and also supports induction neckloops and telecoil-equipped hearing aids. The receiver operates on a pair of standard alkaline batteries, which are also included. A sleep mode helps to preserve battery life. Note: This receiver requires a transmitter operating on a 72-76MHz band. Compatible Williams Sound transmitters: PPA T35, T27, T32, and T36. This receiver is approved by the FCC for operation in US Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76MHz operation.
You must supply your own earphones or headphones. - Ideal for assisted listening applications in schools, houses of worship, auditoriums, theaters, and more
- Compact and easy-to-use design allows you to listen to an FM signal in the 72-76MHz band 1
Please Note: Transmitter required, sold separately. close - The receiver's seek button lets you choose between 17 pre-set frequencies, which are digitally synthesized for terrific audio clarity and signal stability. The channel lock capability prevents accidental changes to channel settings
- The ergonomic design and detachable belt clip allow you to slip it into your pocket or conveniently clip it to your clothing
- The standard-sized 3.5mm headphone jack is compatible with mono and stereo headphones and earphones, and also supports induction neckloops and telecoil-equipped hearing aids
- Operates on a pair of standard alkaline AA batteries, which are included. A sleep mode helps to preserve battery life
In the Box Williams Sound PPA R37-00 Select Channel FM Receiver (No Earphone) Belt Clip 2 x BAT 001 1.5 Volt AA Battery, Disposable, Alkaline 5-Year Parts and Labor Warranty
90-Day Limited Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound PPA R37-00 Select Channel FM Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PPA R37-00 Specs | Channels | 17, Accessed via Seek Button in Battery Compartment | | Operating Frequency | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9MHz
75kHz Intermediate Frequency | | Deviation | 75kHz | | De-Emphasis | 75µS | | Range | AFC Range: ±120kHz | | Sensitivity | 2µV @ 12dB Sinad with Squelch Defeated | | Max Input Signal | 100mV | | Frequency Response | 200Hz - 15kHz | | Modulation | FM, ±75kHz Peak Deviation | | Signal to Noise Ratio | 65dB Min @ 100µV | | Output Level | 35mW Max, Peak into 16 Ohms | | Connectors | 3.5mm Stereo/Mono Headphone Jack | | Antenna | Uses Earphone/Headphone Cord as Antenna | | Battery | 2 x AA Alkaline or NiMH
Up to 50 Hours Life with Alkaline, Up to 32 Hours with Rechargeable NiMH
Enters Sleep Mode After 6 mins with no RF Signal | | Current Consumption | 52mA, Nominal | | Indicators | Green Power LED (Flashes for Low Battery) | | Temperature Range | 32 to 122°F (0 to 50°C) | | Approvals | FCC, Industry Canada, RoHS, WEEE | | Finish | Black | | Dimensions (HxWxD) | 4.1 x 2.85 x 1.38" (104 x 72 x 35mm) | | Weight | 4.6 oz (130g) (With Batteries)
2.6 oz (73g) (Without Batteries) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.6 x 5.3 x 1.9" |
