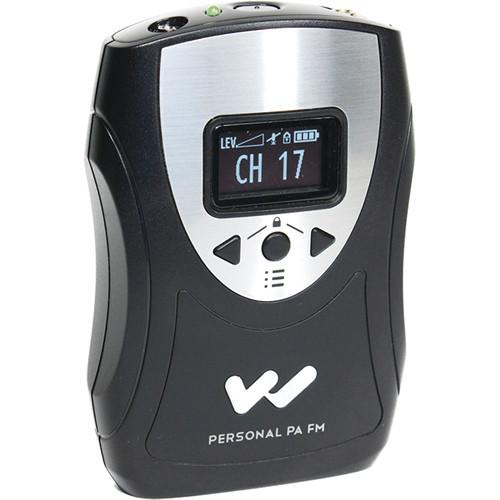

User Manual for Williams Sound PPA T46 Personal PA Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Williams Sound PPA T46 Personal PA
- Product category: Add-On Wireless & Components Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Add-On Wireless & Components
|
User manual for the Williams Sound PPA T46 Personal PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The black & silver Williams Sound PPA T46 Personal PA Bodypack Transmitter broadcasts a speaker’s voice or audio program on one of 17 available channels, 72 to 76 MHz, to listeners using PPA R35-8 or PPA R37 Receivers or an R1600 Speaker (each unit sold separately).The unit features flexible microphone and auxiliary input jacks, push-button on/off/mute controls, channel lock, and selectable compression. This unit has the ability to operate in dual channel mode, allowing the user to easily switch between 2 different transmitting channels, each with its own set up parameters. An OLED screen displays current operating status and menu information. This bodypack transmitter operates up to 30 hours on 2 AA alkaline batteries, and up to 20 hours with 2 NiMH batteries (batteries sold separately).It also has a rechargeable capability when used with Williams Sound drop-in chargers (sold separately). Lightweight and portable, the PPA T46 Transmitter operates at a range of up to 150’ (46m) from the listening audience. It is suitable for providing hearing assistance to students in the classroom, tour group participants, employee training, business meetings, and more. Note: Note: The Personal PA system is approved by the FCC for operation in U.S. markets. The Personal PA cannot be used in all countries. Check with your government
|
Upload User Manual
Have you got an user manual for the Williams Sound PPA T46 Personal PA Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PPA T46 Specs | Operating Frequencies | Selectable, 17 channels, 72.1 to 75.9 MHz
Switchable 8- or 17-channel mode
8-channel mode setting corresponds with PPA R35-8 receiver channels | | Stability | ±0.005%, frequency synthesized, crystal reference, PLL | | Modulation | Wide-band FM, 75 kHz peak, 75 µs pre-emphasis | | RF Output | 80 mV/m at 3 m (maximum allowed by FCC rules) | | Frequency Response | 180 Hz to 13 kHz, ±3 dB at 1% maximum THD | | Signal-to-Noise Ratio | 65 dB (typical), transmitted | | Antenna | Integral with microphone cord | | Microphone | Electret type, 3.5 mm mono plug | | Display | OLED for status and menu information
Status: Channel/Frequency, mic audio level, auxiliary input audio level, battery status, mic mute, channel lock, dual-preset modes
Menu: Channel/frequency display mode select, volume, auxiliary input, compression, 17- or 8-channel mode, screen time out, screen brightness, restore default settings | | External Controls | Momentary Push Button: Push and hold 3 seconds for power on/off, push and release for microphone mute On/Off
Left, right, and menu buttons for accessing and changing transmitter settings
Battery type switch (alkaline or NiMH) located behind the battery compartment door | | Indicators | Power LED: Green, flashes when battery is low | | Mic Input | 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range | | AUX Input | 2.5 mm stereo jack, adjustable gain with 60 dB range | | Audio Compression Method | 1:1 (Off) or 2:1 (On) selectable in menu | | Battery Type | 2 x AA 1.5 V BAT 001-2 non-rechargeable alkaline batteries, 75 mA nominal current drain, up to 30 hours battery life
Or
2 x AA 1.5 V BAT 026-2 NiMH rechargeable batteries, 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 to 16 hours, uses CHG 3502 or CHG 3512 Charger (sold separately) | | Enclosure Material | Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate | | Dimensions (L x W x D) | 4.1 x 2.8 x 1.1" (104.1 x 71.1 x 27.9 mm) | | Weight | 2.6 oz (73.7 g) without batteries | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.5 x 5.25 x 1.75" |
