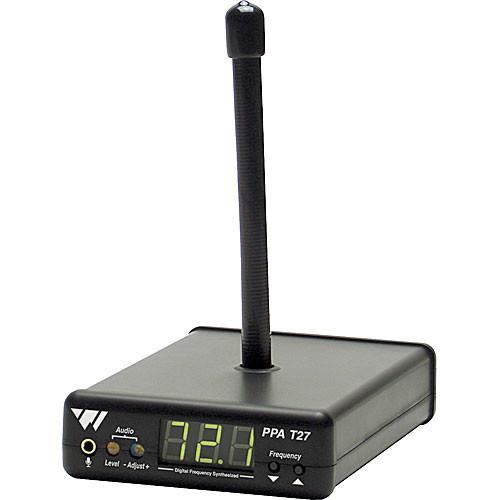

User Manual for Williams Sound PPAT27 - Compact Base Station FM Transmitter Click to enlarge the picture
Contents of the user manual for the Williams Sound PPAT27 - Compact Base
- Product category: Components & Accessories Williams Sound
- Brand: Williams Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Williams Sound Components & Accessories
|
User manual for the Williams Sound PPAT27 - Compact Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Williams Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Williams Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Williams Sound product will considerably shorten its lifespan!
|
Product description The PPAT27 from Williams Sound is a high-quality, compact base station transmitter for use in movie theaters, classrooms, houses of worship, and more. It accepts audio via the RCA line input jack or 3.5mm mic jack, and transmits the audio over an FM radio signal to any FM receiver, such as the PPAR35, tuned to the same frequency.
The compact size of the transmitter allows you to place it virtually anywhere, and it's designed to be easily used by anyone. An LED display shows the frequency, and a handy level adjustment control is located on the front panel for setting the audio level. Frequency selector buttons let you set the operating frequency at one of 17 steps between 72.1 and 75.9MHz. The included antenna sits neatly on top of the transmitter, and provides transmission distances of up to 500'. - Compact base station transmitter can be placed virtually anywhere in a theater, classroom, auditorium, and more
- Accepts mic and line level audio signals via the 3.5mm and RCA connectors
- Transmission range of up to 500' with included antenna 1
Please Note: The ANT005 coaxial antenna (sold separately) increases transmission range up to 1000'. close - High-quality FM transmission on one of 17 easily-selectable channels
- Easy-to-use interface with a large LCD screen
In the Box Williams Sound PPAT27 - Compact Base Station FM Transmitter Power Supply (TFP008) Antenna (ANT021) Audio Cable (WCA013) Owner's Manual 5-Year Limited Warranty (Transmitter)
90-Day Limited Warranty (Accessories) Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound PPAT27 - Compact Base Station FM Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound PPAT27 Specs | Operating Frequency | 72.1-75.9MHz in 17 Steps (User-Selectable) | | RF Field Strength | 80mV/m @ 3m, Max | | Range | Up to 500' (152m) with Included Antenna | | Modulation | FM, 75kHz Deviation, Max | | Frequency Stability | ±0.005% | | Frequency Response | 85Hz - 14kHz, ±3dB | | Distortion | 1% Max THD | | Signal to Noise Ratio | 65dB with R35 Receiver | | Connectors | 1 x 3.5mm Mic Input
1 x RCA Phono Line Input
1 x Power Input | | Dimensions (WxDxH) | 4.1 x 6.1 x 1.3" (104 x 155 x 33mm) | | Weight | 7.8 oz (221g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.7 x 5.4 x 3.3" |
