Product description The WIRSYS1 from Williams Sound is a two-channel wireless listening system ideal for use in courtrooms. The system consists of a MOD232 infra-red modulator, a WIRTX9 infra-red emitter, and four WIRRX12-4N bodypack receivers.

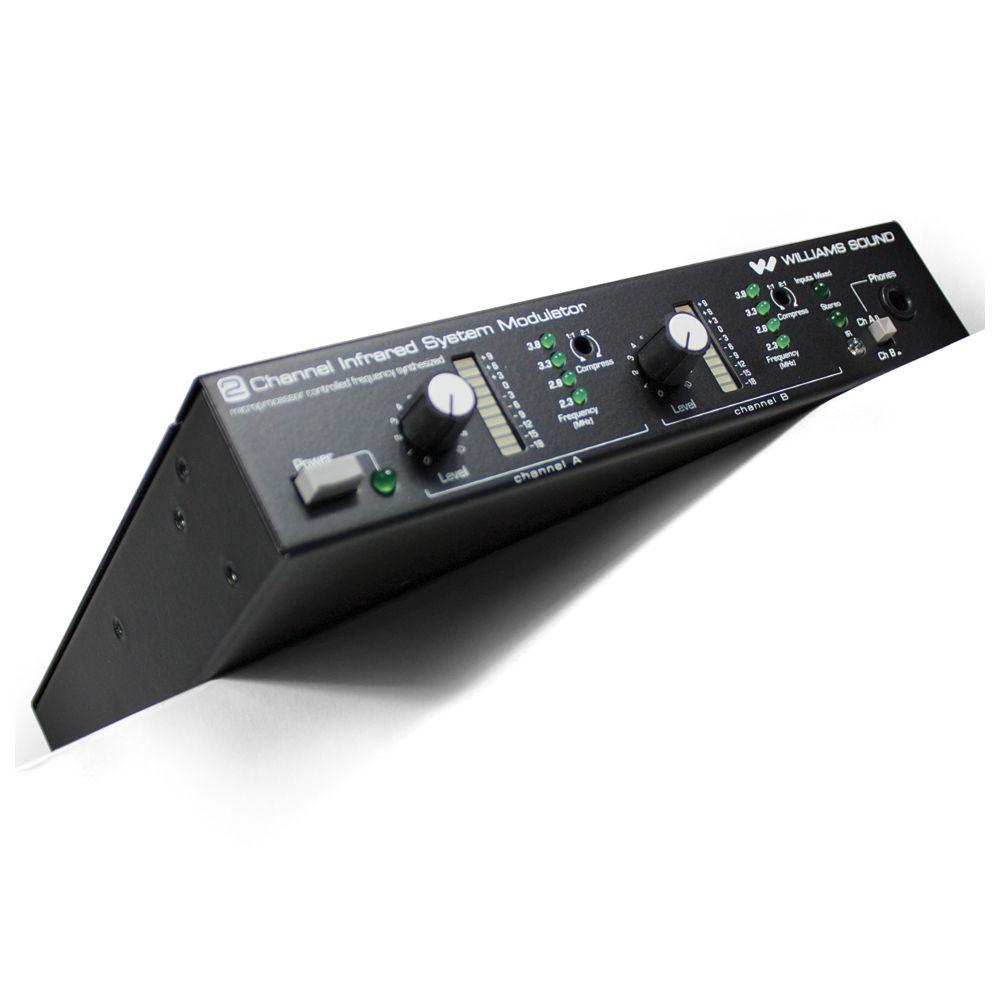

The MOD232 modulator can accept two mic or line-level audio inputs simultaneously via the XLR/TRS combo input jacks. It uses a Baseband cable connection to transmit the audio over one of four selectable frequencies to the WIRTX9 emitter. The modulator also has RCA line outputs for connecting to monitors or recorders. Additional modulators may be daisy-chained as well.

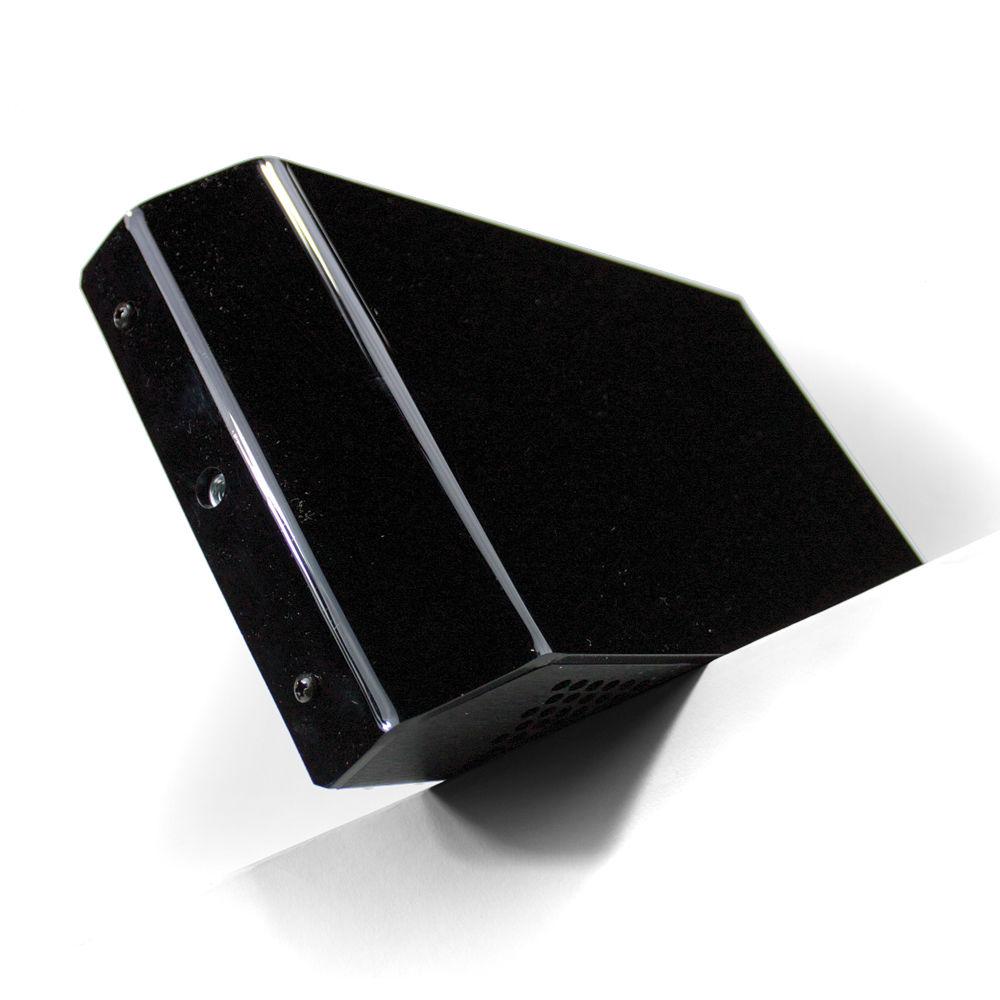

The emitter receives the audio signals and divides its power equally among them. In the case of this system, two channels will be received and sent to a coverage area of approximately 18,000 square feet. If an additional modulator (sold separately) were connected, the emitter would receive four channels, and a coverage area of approximately 11,000 feet could be maintained. The emitter is wall or ceiling-mounted, and sends the audio from the modulator to the WIRRX12-4N receivers.

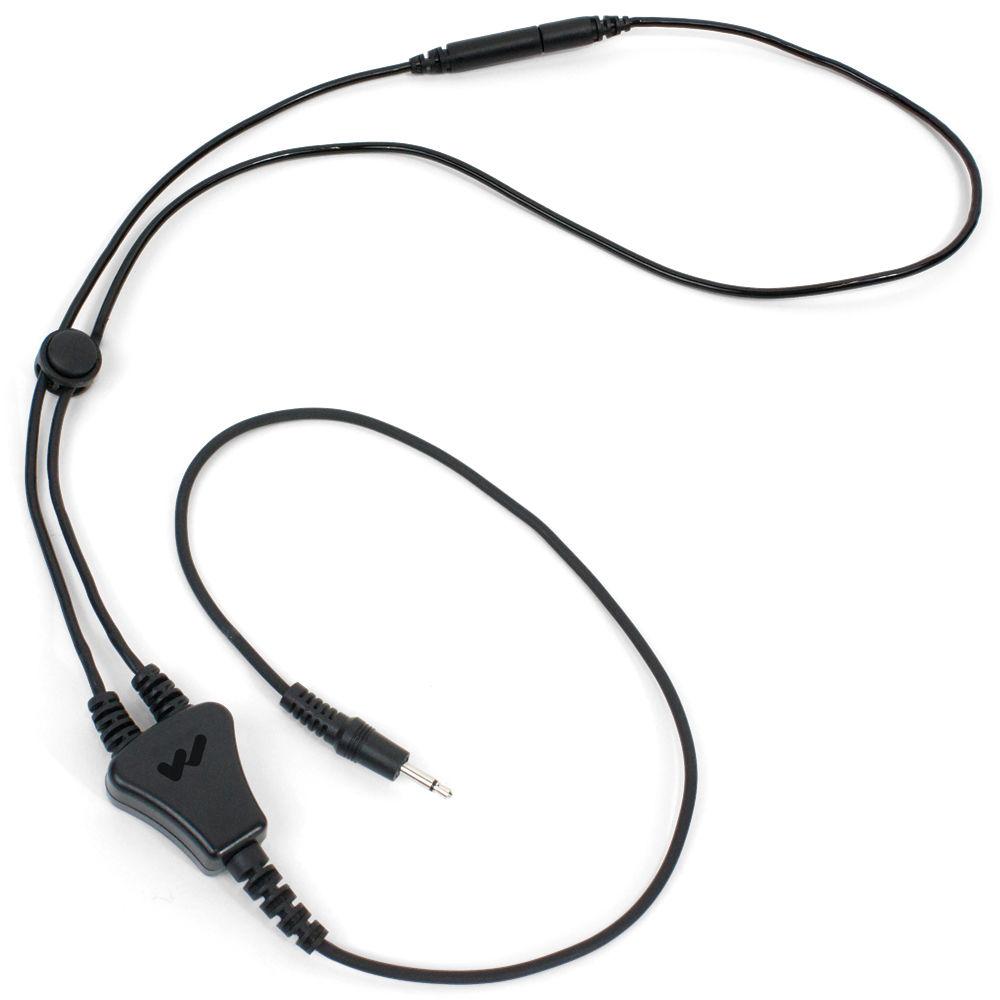

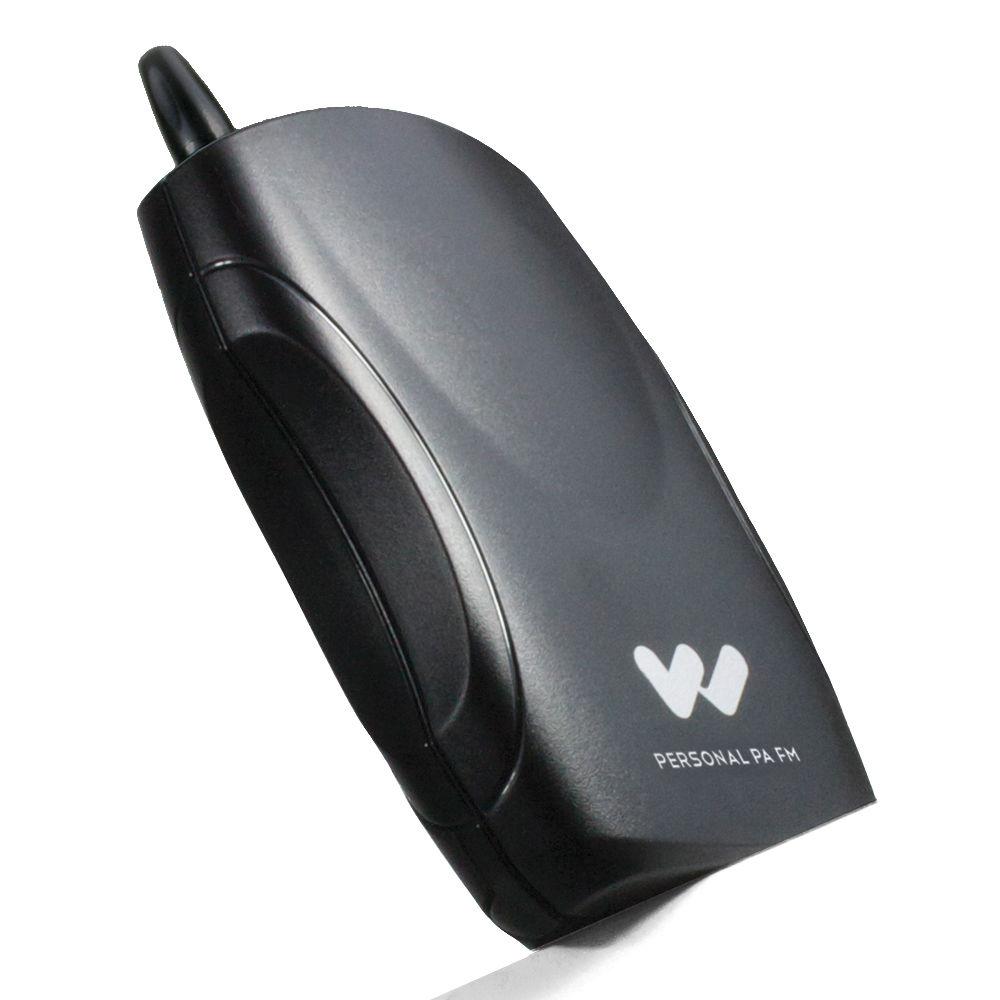

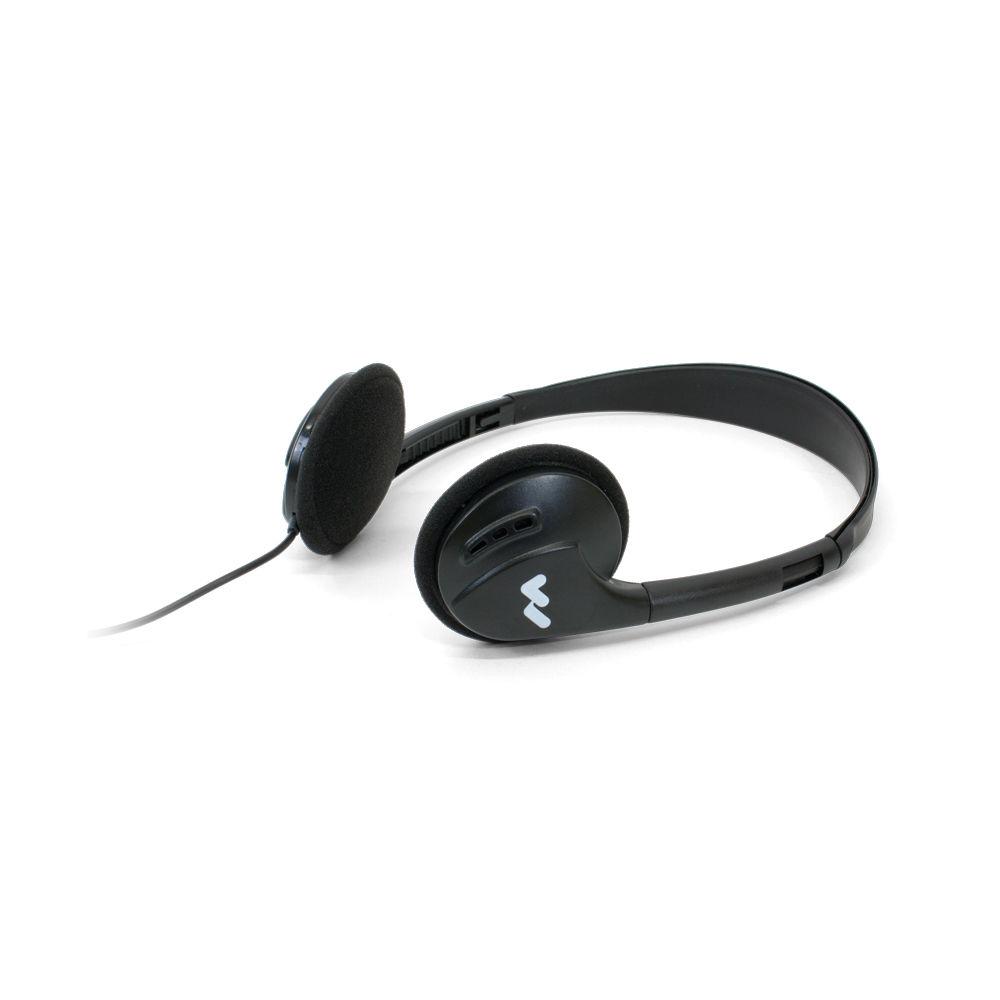

The receivers are compact bodypacks that are easily held or worn around the neck on a lanyard. They offer a four-way channel selector to match the frequency of the other system components, and a large, easy-to-use volume control. The standard 3.5mm headphone jack accepts the included fold-flat headphones as well as the included neckloop, which accommodates a user with a T-coil-equipped hearing aid. The receivers each operate for up to 60 hours on standard AA batteries. - Four-user infra-red listening system, ideal for courtrooms
- Modulator accepts two audio inputs simultaneously over XLR/TRS inputs
- Baseband cable connection sends audio from the modulator to the emitter on one of four selectable frequencies
- Wireless emitter provides a coverage area of approximately 18,000 square feet when working with two channels of audio
- Additional modulators may be daisy-chained to add more channels of audio
- RCA outputs on modulator for connecting to monitors or recorders
- Emitter can be wall or ceiling-mounted to provide the best coverage
- Slim bodypack receivers with lanyards operate for up to 60 hours on two AA batteries
- Easy-to-use volume control on receivers
- Standard 3.5mm headphone jacks for wide compatibility
- Four pairs of fold-flat headphones included, along with one neckloop for use with T-coil-equipped hearing aids

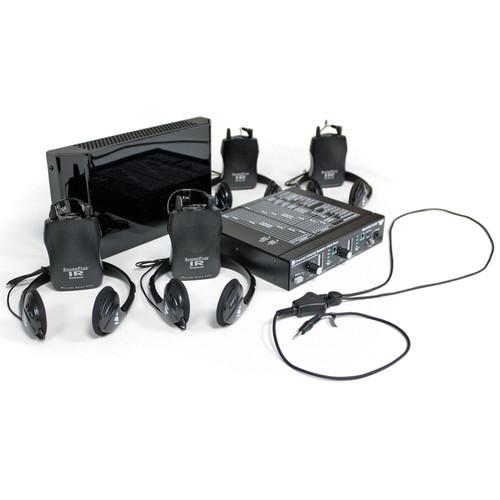

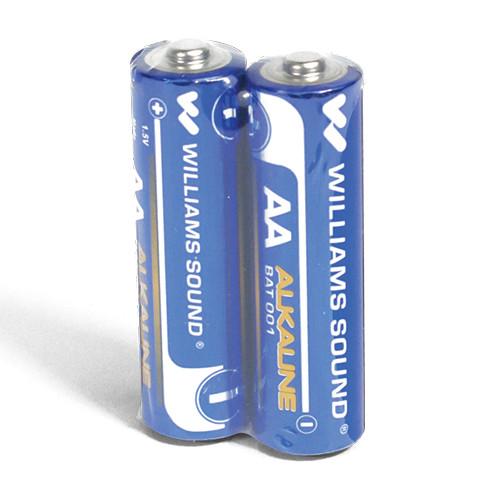

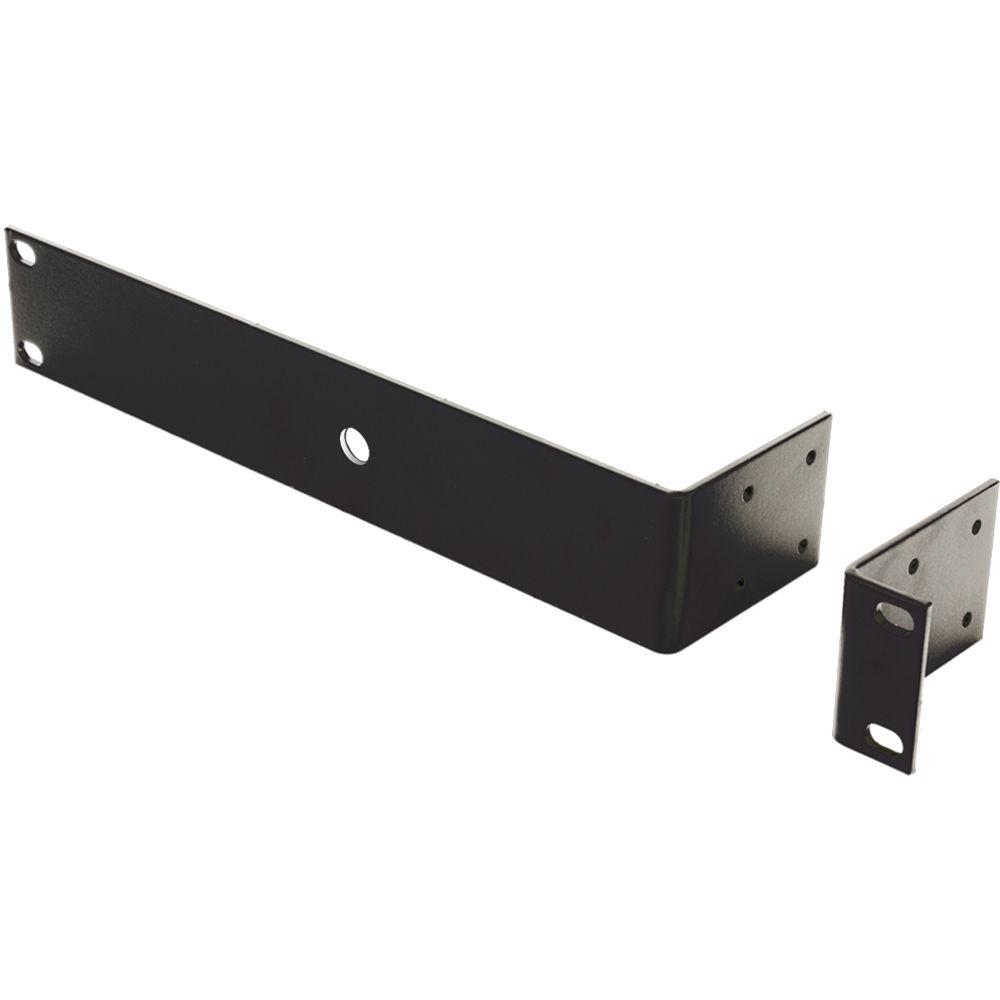

In the Box Williams Sound WIRSYS1 - Two-Channel Sound Plus IR Listening System for 4 Users Modulator (MOD232) IR Emitter (WIRTX9) 4 x Receivers (WIRRX12-4N) 2 x Power Supplies Necessary Connection Cables Wall/Ceiling Mount (BKT024) 4 x Headphones (HED021) Neckloop (NKL001) Rack Mount Kit (RPK005) Wall Plaque (IDP008) 8 x AA Batteries (BAT001) User Guide 5-Year Limited Warranty (Modulator, Emitter, Receivers)
90-Day Limited Warranty (Accessories) Table of Contents
|
Upload User Manual
Have you got an user manual for the Williams Sound WIRSYS1 - Two-Channel Sound Plus IR Listening System for 4 Users in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilliams Sound WIRSYS1 Specs | | | Modulation | FM Wideband, +50kHz Deviation, 50µS Pre-Emphasis | | Carrier Frequency | Selectable, 2.3/2.8/3.3/3.8MHz (Channel A, Channel B) | | Signal to Noise Ratio | More than 60dB | | Frequency Response | 30Hz - 16kHz, +1, -3dB | | Total Harmonic Distortion (THD) | Less than 2% | | Connectors | 1 x Power Input
1 x 1/4" TRS Headphone Output
2 x XLR/TRS Combo Input Jacks
2 x Line-Level RCA Phono Outputs
1 x BNC Baseband Input
2 x BNC Baseband Outputs | | Power | 24VAC, 50-60Hz, 15VA | | Dimensions (WxDxH) | 8.5 x 8.2 x 1.7" (215 x 208 x 44mm) | | Weight | 3.1 lbs (1.5kg) | | | | Carrier Frequency | 50kHz - 8MHz | | Emitter IR Power | 3.5W | | Coverage Area | 28,000 Square Feet (Single-Channel Mode with RX12-4 Receiver)
11,000 Square Feet (Four-Channel Mode with RX12-4 Receiver)
3500 Square Feet (Single-Channel Mode with RX14-2 Receiver)
3063 Square Feet (Single-Channel Mode with RX16 Receiver) | | Connectors | 1 x BNC Baseband Input
1 x BNC Baseband Output
1 x Power Input | | Power | 24VAC, 50-60Hz, 35VA | | Dimensions (WxHxD) | 11.25 x 6.25 x 2.1" (286 x 159 x 54mm) | | Weight | 1.9 lbs (0.9kg) | | | | Carrier Frequency | 2.3/2.8/3.3/3.8MHz (Selectable) | | Operating Range | Up to 28,000 Square Feet when used with a Single WIRTX9 Emitter in Single-Channel Mode | | De-Emphasis | 50µS | | Deviation | ±50kHz | | Signal to Noise Ratio | 60dB Min. | | Squelch | Squelch @ 40dB S/N Ratio | | Frequency Response | 25Hz - 16kHz, +1, -3dB | | Total Harmonic Distortion (THD) | Less than 1% | | Connectors | 1 x 3.5mm Stereo Headphone Jack | | Battery | 2 x AA, Alkaline or NiMH
Life: Up to 60 Hours Alkaline, Up to 30 Hours NiMH | | Dimensions (LxWxH) | 3.6 x 2.4 x 0.9" (92 x 60 x 22mm) | | Weight | 4.5 oz (127g) (With Batteries) | | | | Package Weight | 19.02 lb | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 12.0" |
