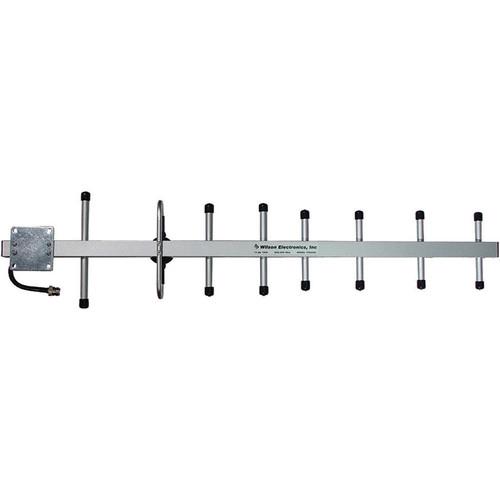

User Manual for Wilson Electronics Yagi Specialized High Gain Antenna Click to enlarge the picture
Contents of the user manual for the Wilson Electronics Yagi Specialized High Gain
- Product category: Antennas & Accessories Wilson Electronics
- Brand: Wilson Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wilson Electronics Antennas & Accessories
|
User manual for the Wilson Electronics Yagi Specialized High Gain contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wilson Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wilson Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wilson Electronics product will considerably shorten its lifespan!
|
Product description Boost your cellular signal transmission by up to 13 dBi with the Yagi Specialized High Gain Antenna from Wilson Amplifiers. This directional antenna is compatible with separately available 50-ohm amplifiers and accessories. It's designed for fixed installations and must be pointed toward the nearest cellular signal tower to achieve the desired results and signal gain.
The Yagi Specialized High Gain Antenna supports all carriers transmitting within the 700/850/900 MHz frequency band range. Mounting hardware is included. UPC: 813986001912 In the Box Wilson Electronics Yagi Specialized High Gain Antenna Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wilson Electronics Yagi Specialized High Gain Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWilson Electronics 301111 Specs | Frequencies | 700/850/900 MHz | | Gain | 700-800 MHz: 13 dBi
824-894 MHz: 13 dBi
880-960 MHz: 13 dBi
1710-1880 MHz: -16.4 dBi
1850-1990 MHz: -14.9 dBi
2110-2170 MHz: -13.8 dBi | | Impedance | 50 ohms | | Power | 50 W (max) | | Radiation | Directional | | Polarization | Vertical or horizontal | | Wavelength | 2 wavelength 806-894 MHz | | Connector | N-female | | Elements | 8 | | Material | Aluminum | | Mount | Mounts on pipe with 0.5 to 1.5"/1.27 to 3.81 cm diameter | | Length | 32.5" / 82.6 cm | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 33.0 x 8.0 x 3.0" |
