User Manual for Wimberley AP-500 Quick Release Replacement Foot for Nikon AF-S 500mm f 5.6E PF ED VR Click to enlarge the picture
Contents of the user manual for the Wimberley AP-500 Quick Release Replacement Foot
- Product category: Tripods & Support Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Tripods & Support
 |
User manual for the Wimberley AP-500 Quick Release Replacement Foot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|

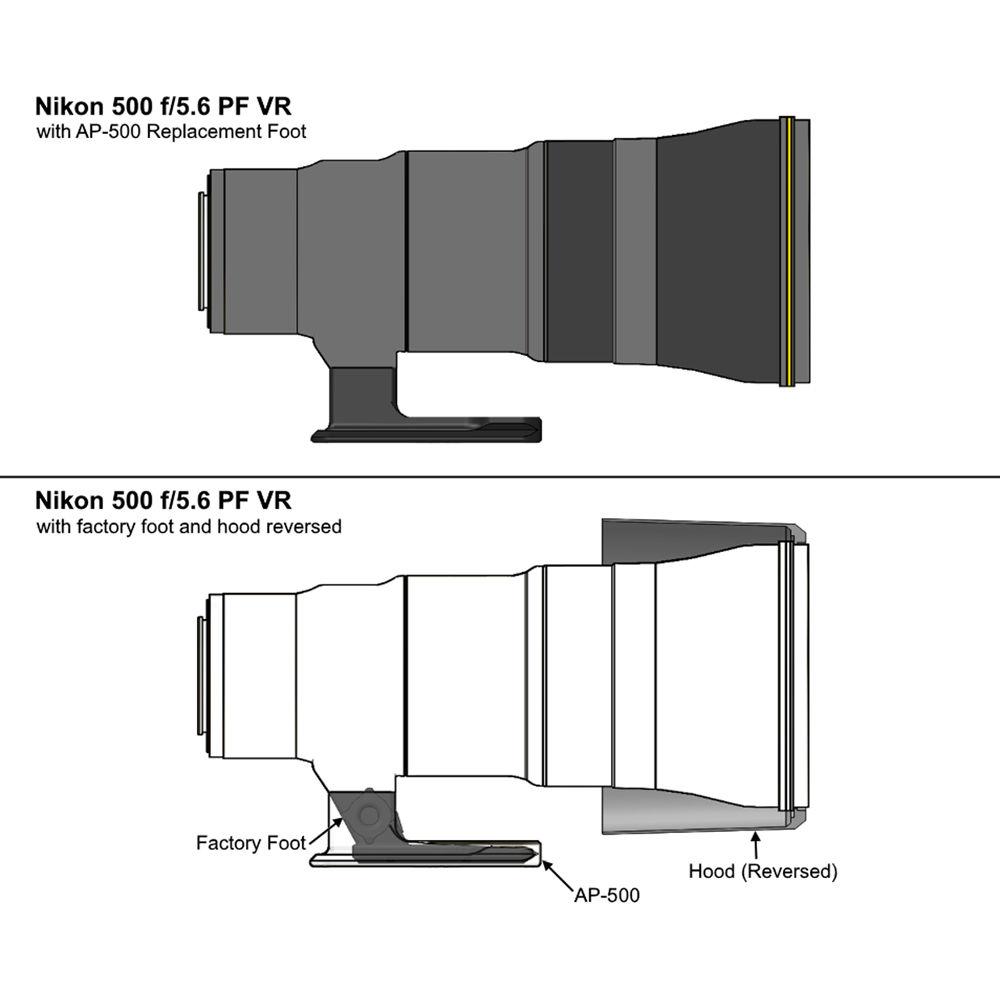

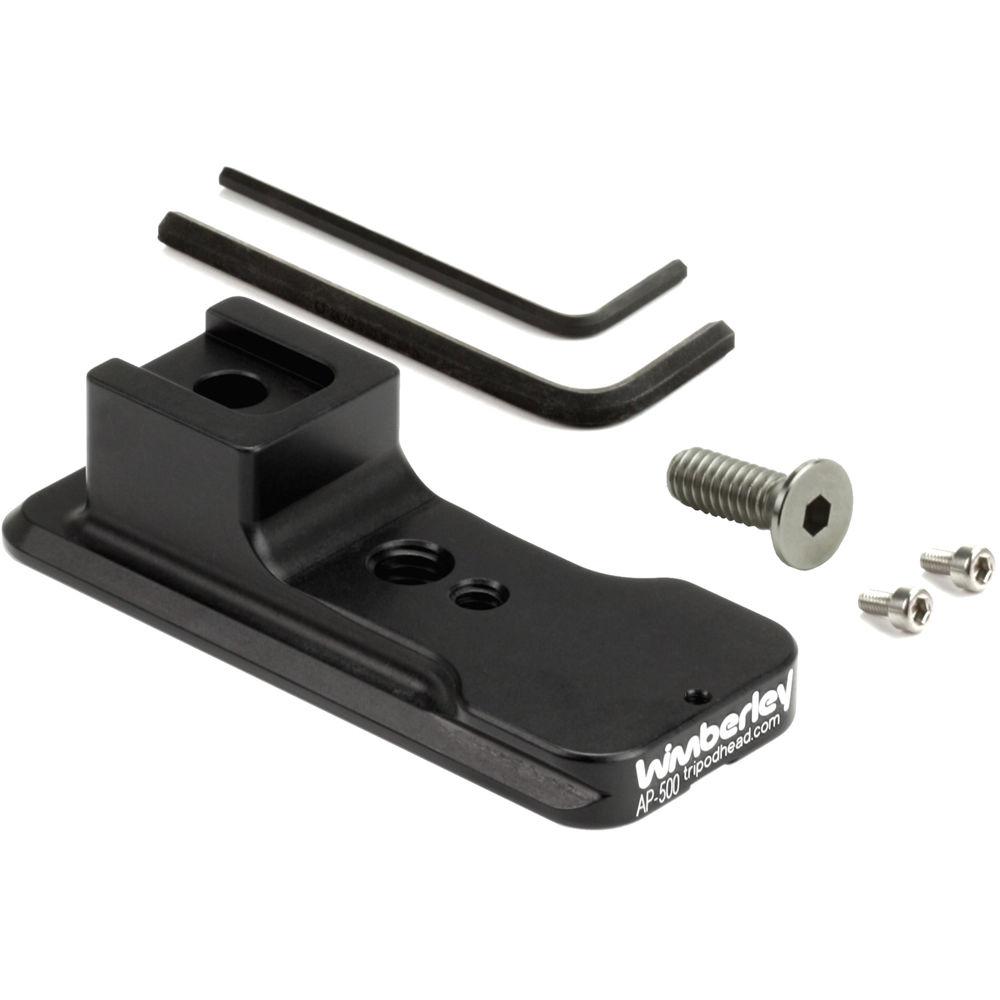

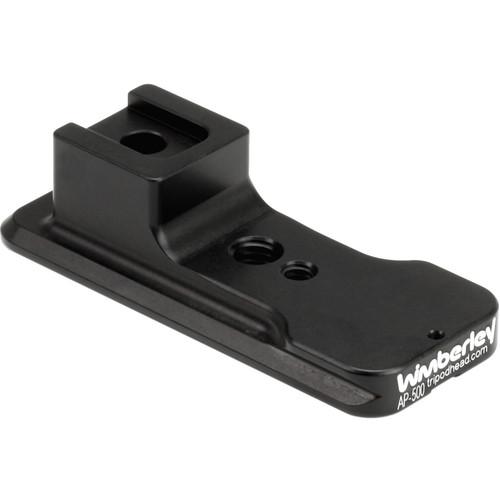

Product description Designed for the Nikon AF-S NIKKOR 500mm f/5.6E PF ED VR, the AP-500 Quick Release Replacement Foot from Wimberley is an anodized 6061 aluminum foot that is Arca-type compatible for use with most clamps and heads on the market. By replacing the original factory foot, the AP-500 adds rigidness and stability and reduces flex and vibration while mounted on a head. Additionally, a double dovetail allows accessories to attach to the bottom or the top of the foot. The lower profile of the plate provides better balance when mounted on a head as well. If you're going to use the optional safety stop screws, Wimberley recommends using a clamp with channels, which allow the screws on the foot to slide back-and-forth. UPC: 753182834849 In the Box Wimberley AP-500 Quick Release Replacement Foot for Nikon AF-S 500mm f/5.6E PF ED VR 1/4"-20 x 9/16" Flat Head Socket Cap Screw 2 x M3 x 6mm Socket Head Cap Screw 5/32" Hex Key 2.5mm Hex Key 1/16" x 5/8" Stainless-Steel Roll Pin 2.5" Roll Pin Insertion Tool Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley AP-500 Quick Release Replacement Foot for Nikon AF-S 500mm f 5.6E PF ED VR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Wimberley AP-500 Quick Release Replacement Foot for Nikon AF-S 500mm f 5.6E PF ED VR can be downloaded in PDF format at the link stated below.
Technical parametersWimberley AP-500 Specs | Tripod Mounting Thread | 1 x 1/4"-20 Female
1 x 3/8"-16 Female | | Bubble Level | No | | Strap Loop | No | | Arca-Type | Yes | | Material of Construction | Aluminum, Steel | | Length | 3.7" / 9.40 cm | | Width | 1.5" / 3.81 cm | | Height | 1.0" / 2.54 cm | | Weight | 2.9 oz / 82 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 13.0 x 6.4 x 2.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
