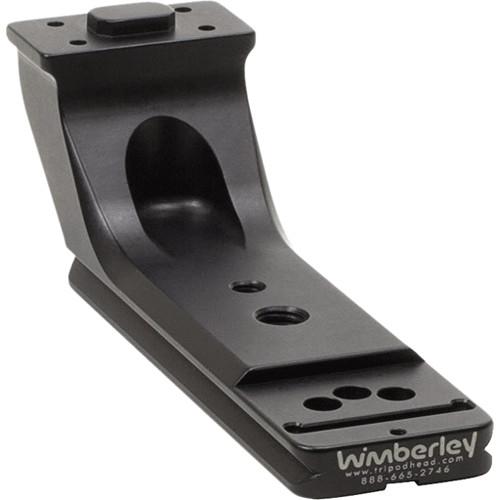

User Manual for Wimberley AP-554 Replacement Foot for Nikon 500mm f 4 AF-S and 200-400mm f 4 AF-S Lenses Click to enlarge the picture
Contents of the user manual for the Wimberley AP-554 Replacement Foot for Nikon
- Product category: Tripods & Support Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Tripods & Support
|
User manual for the Wimberley AP-554 Replacement Foot for Nikon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|
Product description The Wimbereley AP-554 Replacement Foot replaces the stock foot on the rotation collar of the Nikon 500mm f/4 AF-S (I, II & VR) and 200-400mm f/4 AF-S (VR) lenses. The low-profile foot creates a lower center of gravity for your long lens & camera body, making for a better balance when you use the lens with a gimbal head (such as the Wimberley Head or the Sidekick). Taller than the Wimberley AP-553, the AP-554 provides enough clearance between the lens body and the foot so you can use it as a lens handle. Its longer 5.1" length makes it better balanced with smaller DSLR camera bodies, and it's compatible with all Nikon professional and prosumer bodies – even as the lenses are used with teleconverters (see Compatibility below). In designing this replacement foot, Wimberley used finite material analysis to determine the best balance between stiffness and weight savings. While keeping the foot as light as was appropriate, the manufacturer refused to sacrifice any necessary rigidity.The bottom of the foot is milled to accept an Arca Swiss-style quick-release clamp, and it also features tapped holes for direct attachment to both 1/4"-20 and 3/8"-16 studs on tripod heads and monopods. Note: Check Nikon lens/body compatibility below. - Nikon 500mm f/4 AF-S (I, II, & VR) Compatibility
- Compatible Bodies: Camera + battery 25 oz or heavier (including D300, D90, & D7000)
Incompatible Bodies: Camera + battery lighter than 25 oz (e.g. D5000 & D3000) - Nikon 200-400mm f/4 AF-S (VR) Compatibility
- Compatible Bodies: All Nikon SLRs
Incompatible Bodies: None UPC: 753182834085 In the Box Wimberley AP-554 Replacement Foot for Nikon 500mm f/4 AF-S (I, II & VR) and 200-400mm f/4 AF-S (VR) Lenses Mounting Screws Safety-Top Screws All Necessary Tools Limited 5-Year Warranty Guides & Manuals rdvtexfwcysxybezqacwzebxyfccc Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley AP-554 Replacement Foot for Nikon 500mm f 4 AF-S and 200-400mm f 4 AF-S Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Wimberley AP-554 Replacement Foot for Nikon 500mm f 4 AF-S and 200-400mm f 4 AF-S Lenses can be downloaded in PDF format at the link stated below.
Technical parametersWimberley AP-554 Specs | Dimensions (HxWxD) | 1.7 x 1.7 x 5.5" (4.3 x 4.3 x 13.0 cm) | | Weight | 6.1 oz (173 g) includes plate, mounting screws & safety-stop screws | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.0 x 4.4 x 1.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
