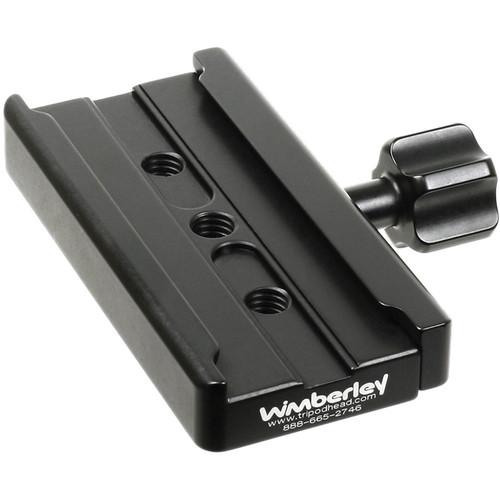

User Manual for Wimberley C-30 Quick Release Clamp for Wimberley Click to enlarge the picture
Contents of the user manual for the Wimberley C-30 Quick Release Clamp for
- Product category: Tripods & Support Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Tripods & Support
|
User manual for the Wimberley C-30 Quick Release Clamp for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|
Product description A 104mm-long Arca-style quick release clamp that can be added onto any tripod head with a 3/8"-16 screw, the Wimberley C30 quick release adapter accepts Arca-type quick release plates from Acratech, Arca-Swiss, Foba, Graf, Novoflex, NPC & (of course) Wimberley. From head-to-toe it is a superior, exceptionally engineered design which will yield many years of reliable, heavy-duty use. The C30 is long enough to hold any lens/camera combination like a vise grip. The C-30 is for those who wish to retrofit an old-style Wimberley Head, replace a damaged C-30, or have an application that requires a longer clamp. Please click here for a lens-plate reference chart to find the recommended plate for your particular lens. Note: The C-30 clamp was made specifically for the old-style Wimberley Head (WH-100 & WH-101). The Wimberley Head Version II (WH-200) has a built-in quick-release clamp, eliminating the need for the C-30. The added length of the C-30 (1.6" longer than the C-10) provides little added functionality for most applications. Wimberley recommends using the lighter, less expensive C-10 clamp. - Superstrong 7075 T6 Aluminum
- Wimberley uses 7075 T6 series aluminum for the C30 clamp, which is a standard within the aviation industry and amongst the world's strongest aluminum alloys. It is heavily alloyed with zinc to be incredibly strong and durable, with superior tensile and yield strength thresholds than 6061 T6 aluminum alloy.
- Accepts all Arca-Type Quick Release Plates
- The Wimberley C30 clamp will securely hold any manufacturer's Arca-type quick release plate, available from a host of manufacturers.
- Captive Locking Screw
- The clamp's locking knob cannot accidentally fall off from being unscrewed too far.
- Built for Tough Use
- Wimberley's C30 clamp has a tongue-in-pocket design which protects internal parts from dust and grit. The spring-loaded moving jaw communicates brilliantly to your hand that the camera's quick release plate and the jaw are in contact.
- Grooves Allow Extended Motion
- Shallow channels extending from the C30 clamp's sides stop just short of the central tapped hole, allowing great fore-aft adjustment when using the safety stops on Wimberley's (and others) quick release plates.
UPC: 753182834122 In the Box Wimberley C-30 Quick Release Clamp for Wimberley Allen Wrench 2 x 3/8"-16 Threaded Mounting Screws 2 x Washers Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley C-30 Quick Release Clamp for Wimberley in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Wimberley C-30 Quick Release Clamp for Wimberley can be downloaded in PDF format at the link stated below.
Technical parametersWimberley C-30 Specs | | | Assembly Dimensions | L: 4.2 x W: 3.3 x H: 0.9" / L: 106.0 x W: 84.0 x H: 22.0 mm | | | | Quick Release Type | Arca-Type | | Weight | 0.53 lb / 240 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.8 x 4.1 x 1.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
