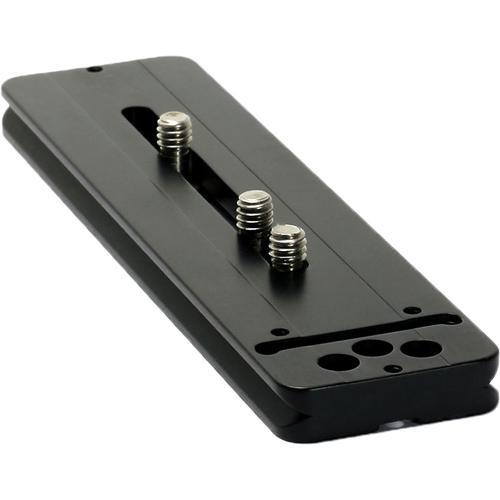

User Manual for Wimberley P40 Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Wimberley P40 Quick Release Plate
- Product category: Tripods & Support Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Tripods & Support
|
User manual for the Wimberley P40 Quick Release Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|
Product description Wimberley's quick release plates for lenses are made of silky-smooth anodized aluminum. They fit all the Arca-type quick release adapters, made by many different companies such as Arca-Swiss, Foba, Graf/Studioball, Gitzo, NPC and of course Wimberley. The plate has drilled holes to accept flash brackets from Wimberley, Kirk & Really Right Stuff. Note: The following lenses have 3/8" threads, and require a "reducing bushing" (#GBRB) to fit the plate:
| Lens | Bushing | | Canon 500mm f/4 IS | x1 | | Leica Modular 280mm to 560mm | x1 | | Leica Modular 400mm to 800mm | x1 | - Dual Safety Stops
- The safety stops at the front & back of the Wimberley P40 plate prohibit your lens from accidentally slipping out of the quick release adapter(easily removed with supplied hex wrench if desired).
- Double-Dovetail Cross-Section
- The Wimberley double-dovetail design allows attachment of their Shape Shifter flash bracket system to the upper or lower surface of the P40 plate.
- Works with All Common Flash Brackets
- Drilled holes accept flash arms from Kirk & Really Right Stuff
- Combine with two Module 1 Quick Release Arms( item code "WIM1") for a brilliant support base for using your long lens atop a beanbag
UPC: 753182834337 In the Box Wimberley P40 Quick Release Plate BS-100 3/8"-16 to 1/4"-20 Brass Reducer Bushing bdweztvrseexfwyuysyauq 3 x 1/4"-20 Screws 4 x Safety Stop Screws 5/32" Allen Wrench & 2.5mm Allen Wrench Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley P40 Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Wimberley P40 Quick Release Plate can be downloaded in PDF format at the link stated below.
Technical parametersWimberley P-40 Specs | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.0 x 4.0 x 0.7" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
