User Manual for Wimberley WH-200 Gimbal Tripod Head II with Quick Release Base Click to enlarge the picture
Contents of the user manual for the Wimberley WH-200 Gimbal Tripod Head II
- Product category: Uncategorized Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Uncategorized
 |
User manual for the Wimberley WH-200 Gimbal Tripod Head II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|

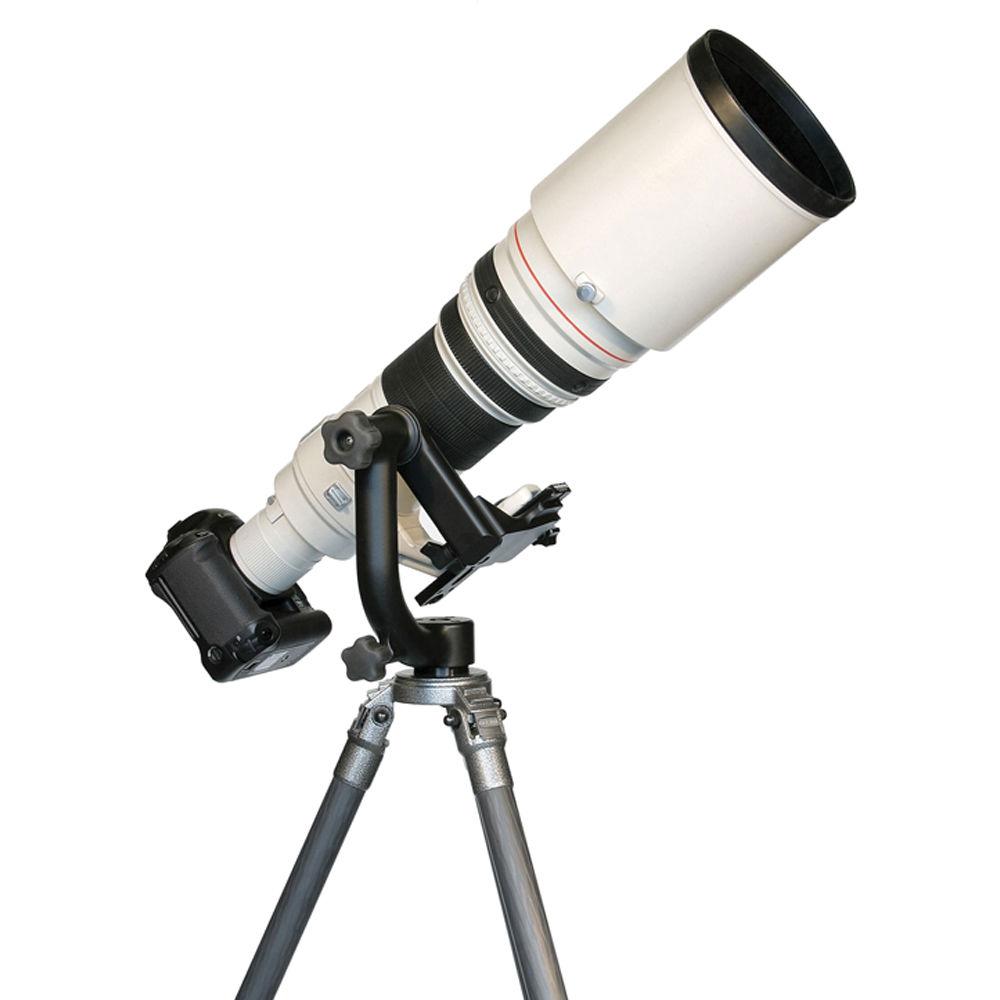

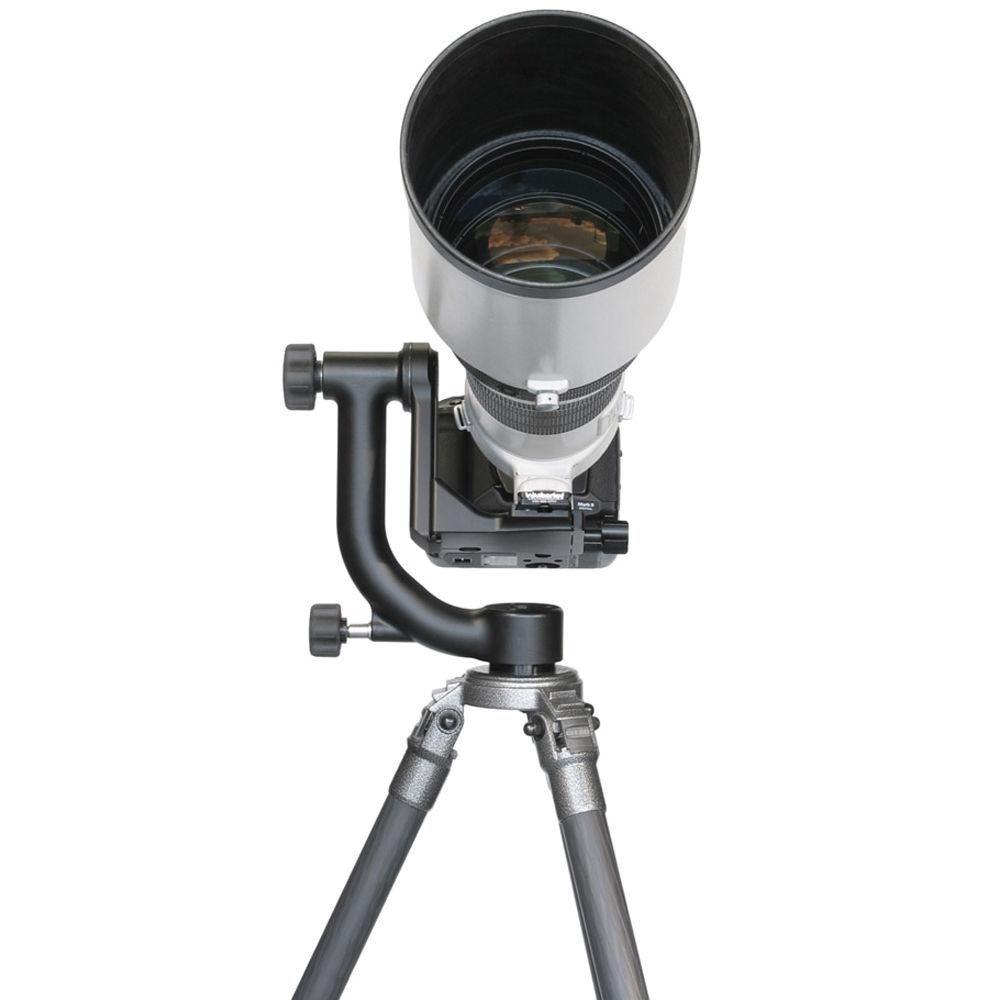

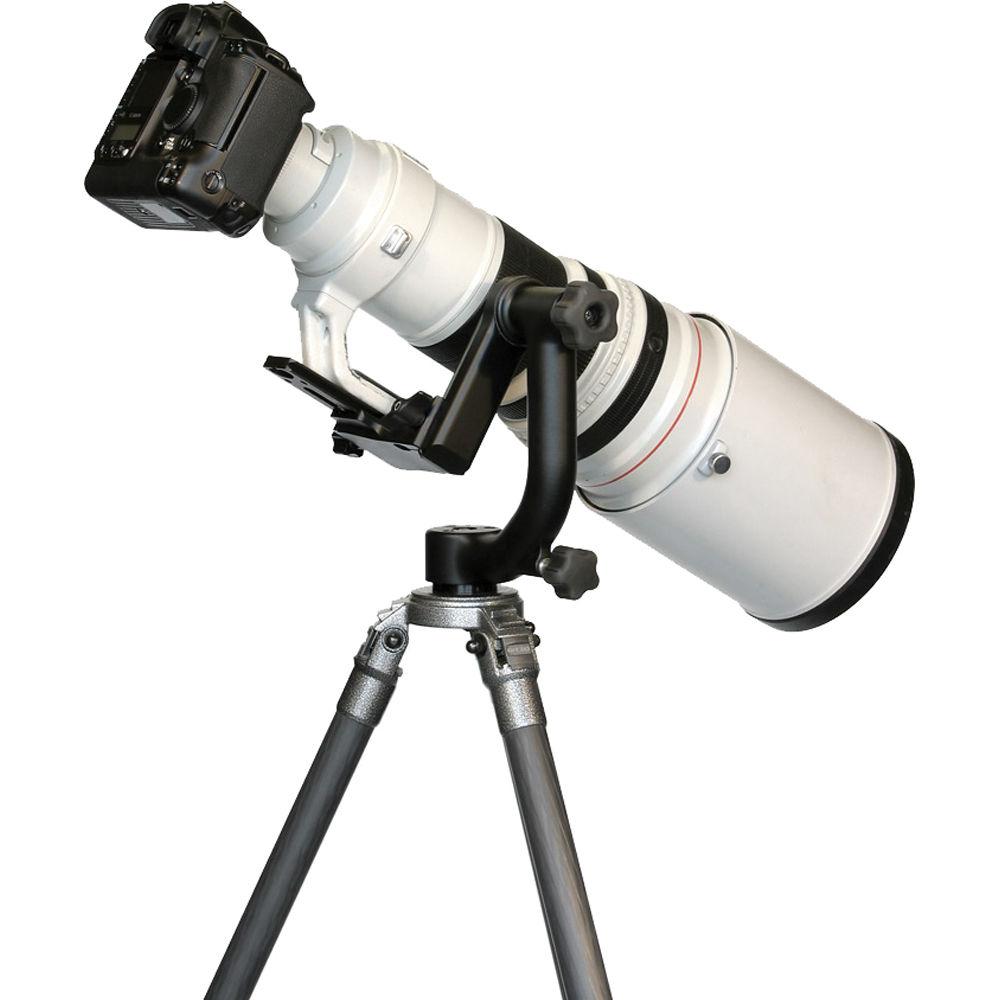

Product description The Wimberley WH-200 Gimbal Tripod Head II with Quick Release Base is a gimbal-type tripod head that incorporates an elevated tilt mechanism and adjustable platform to make the camera/lens' center of gravity and tilt axis of the head be perfectly aligned.Things once thought of as impossible with a ball head are nothing short of mundane with a Wimberley, because a weightless camera/lens combo (even a 600mm f/4 w/ large body) can literally be controlled with one finger. Point the rig where you want and take the hand away, and it stays exactly where you put it.The Version II head is more compact and lightweight, features a redesigned panning base, "soft-touch" knobs, and includes a built-in Arca-type compatible quick release base. An Arca-type quick release plate is required and is available separately. - The built-in industry-standard Arca-type quick release clamp makes it compatible with the many different plates available from Arca-Swiss, Acratech , Kirk, Wimberly, Really Right Stuff, Foba, etc.
- The head does not have separate controls for tension and locking, but the locking controls deliver smooth resistance with diminished "stick-slip".
- The overall height of the head is 9.25" (23.5cm), with the lens platform adjustable from 3.5 to 7.1" (8.9 x 18cm). The centerline of a balanced lens will be approximately 8.4" (21.3cm) above the bottom of the head.
Distance from the mounting surface of the platform to the tilt axis: Adjustable from 1.1 to 4.8" (2.8 to 12.2cm). - The head's redesigned panning base has zero play and the pan locking knob has been moved to the side of the head; this allows the user to easily operate both knobs with the same hand.
- Lobed "soft-touch" knobs provide a more comfortable grip and perform better when using gloves.
- Powder coated/anodized finish.
In the Box Wimberley WH-200 Gimbal Tripod Head II with Quick Release Base Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley WH-200 Gimbal Tripod Head II with Quick Release Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Head Type | Gimbal Head | | Base Mount | 3/8"-16 Thread | | Quick Release Plate Type | Arca-Type | | Number of Bubble Levels | None | | Friction Control | Yes | | | | Dimensions | H: 9.2 x W: 3.5 x L: 9.7" / H: 23.5 x W: 8.9 x L: 24.7 cm | | Weight | 3.1 lb / 1.4 kg |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
