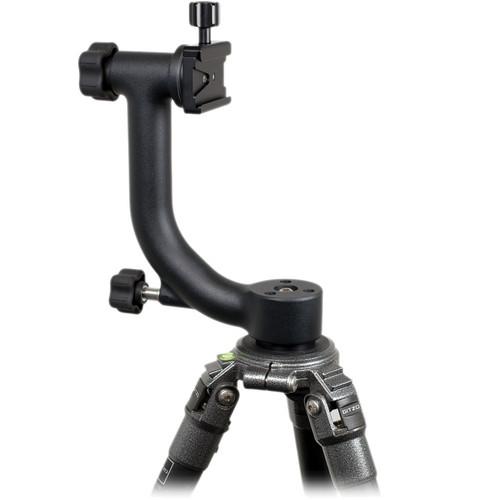

User Manual for Wimberley WH-200-S Sidemount Wimberley Head Click to enlarge the picture
Contents of the user manual for the Wimberley WH-200-S Sidemount Wimberley Head
- Product category: Tripod Heads Wimberley
- Brand: Wimberley
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wimberley Tripod Heads
|
User manual for the Wimberley WH-200-S Sidemount Wimberley Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wimberley product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wimberley user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wimberley product will considerably shorten its lifespan!
|
Product description The Wimberley WH-200-S Sidemount Wimberley Head is a lighter, more compact alternative to the full Wimberley Gimbal Head. The Sidemount Wimberley head shares the main casting and pan and tilt mechanisms with the Wimberley Head, but a side-mounted Arca-Swiss-style quick release clamp replaces the other model's swing arm & adjustable platform. The design of the Sidemount Wimberley head allows you to set the center of gravity of the camera/lens over the pan base, for smooth, stable changes to your lens positioning. Note: The Sidemount Wimberley Head has a built-in Arca-Swiss-style quick release clamp. In order to use the head, your lens must be equipped with an Arca-Swiss-style lens plate. If you use plates from manufacturers other than Wimberley, you will need to make sure that they are the proper length and proportion that Wimberley recommends for your lens. See the Lens Compatibility Guidebacsreascsrzybceyewyatxc. - Ideally suited for lenses similar in size to a 300mm f/2.8 or 500mm f/4. Larger lenses may require a spacer or a replacement foot for the lens collar (See the Lens Compatibility Guide.)
- The built-in industry-standard Arca-Swiss style quick release clamp makes it compatible with the many different plates available from Arca-Swiss, Acratech, Kirk, Wimberley, Really Right Stuff, Foba, etc.
- Works with Wimberley F-9 Sidekick Bracket (not included) for positioning a flash above the lens
UPC: 753182834634 In the Box Wimberley WH-200-S Sidemount Wimberley Head Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Wimberley WH-200-S Sidemount Wimberley Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Wimberley WH-200-S Sidemount Wimberley Head can be downloaded in PDF format at the link stated below.
Technical parametersWimberley WH-200-S Specs | | | Quick Release Plate Type | Arca-Type | | | | Dimensions | H: 10.7 x W: 8.0 x L: 2.5" / H: 27.2 x W: 20.3 x L: 6.4 cm | | Weight | 2.3 lb / 1.0 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 11.1 x 10.4 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
