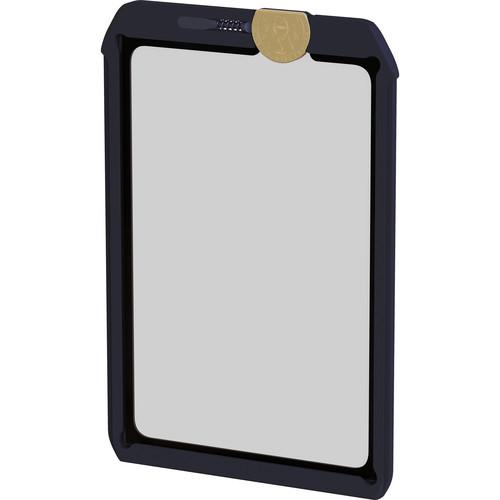

User Manual for Wine Country Camera 100 x 150mm Filter Vault Click to enlarge the picture
Contents of the user manual for the Wine Country Camera 100 x 150mm
- Product category: Filter Holders & Frames Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Filter Holders & Frames
|
User manual for the Wine Country Camera 100 x 150mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Wine Country Camera 100 x 150mm Filter Vault is designed to encase the edges of a separately-available, 100 x 150mm, 2mm-thick filter for use within a Wine Country Camera 100mm Filter Holder. By encasing the sides of an installed filter, this filter vault helps to limit stray light, which could have unwanted effects on exposure, from coming in between an installed filter, as well as the filter holder and the lens behind it. Additionally, the Wine Country Camera 100 x 150mm Filter Vault reinforces an installed filter's rigidity while preventing its sides from having to come into direct contact with a filter holder's slots. This protects those side surfaces and promotes sharp results by ensuring that the filter remains flat.
Installation of a compatible filter is accomplished by first turning the Wine Country Camera 100 x 150mm Filter Vault's brass, Wine Coin lock into the open position. Located along the front of the filter vault's inner and outer top edges, the Wine Coin is a flat, disk cam lock that features a straight edge on one side and a rounded edge at the other. When the lock's straight edge is aligned with the filter vault's inner edge, a 100 x 150mm, 2mm-thick filter can be set within the front of the filter vault. The Wine Coin can then be turned so that its rounded edge obstructs the installed filter, securing it within the filter vault.
A separately-available Wine Country Camera 100mm Filter Holder includes two outer slots that can each accommodate this 100 x 150mm filter vault. The sides of the filter holder also feature quick-release buttons that are each dedicated to one of those slots. When pressed, they allow a Wine Country Camera 100 x 150mm Filter Vault within a Wine Country Camera 100mm Filter Holder's corresponding slot to be adjusted upward or downwards relative to the subject. When used with either of a Wine Country Camera 100mm Filter Holder's two outer slots, an integrated safety-catch system prevents this 100 x 150mm filter vault from accidentally sliding out of the filter holder. -
- Designed to encase the edges of a separately-available, 100 x 150mm, 2mm-thick filter for use within a separately-available, Wine Country Camera 100mm Filter Holder
- Helps to limit stray light, which could have unwanted effects on exposure, from coming in between an installed filter, as well as the filter holder and the lens behind it
- Reinforces an installed filter's rigidity while preventing its sides are from having to come into direct contact with a filter holder's slots
- Protects an installed filter's side surfaces and promotes sharp results by ensuring that it remains flat
- Brass, Wine Coin lock secures an installed filter
- Fits either one of two outer slots within a separately-available Wine Country Camera 100mm Filter Holder
- Quick-release side buttons on a separately-available Wine Country Camera 100mm Filter Holder allow immediate upward or downward filter positioning relative to the subject
- Integrated safety-catch system prevents accidental release when used with either of a separately-available Wine Country Camera 100mm Filter Holder's two outer slots
- Fiberglass construction for durability while remaining lightweight
UPC: 818071020007 In the Box Wine Country Camera 100 x 150mm Filter Vault Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wine Country Camera 100 x 150mm Filter Vault in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWine Country Camera 100VLT150 Specs | Filter Capacity | 1 x 4 x 6", 100 x 150 mm, Wine Country Camera 100 mm (2 mm Thick) | | Material | Fiberglass | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.6 x 5.0 x 0.4" |
