User Manual for Wireless Prime 10" Touchscreen DVR & 4 1080p Wireless Cameras with Night Vision Click to enlarge the picture
Contents of the user manual for the Wireless Prime 10" Touchscreen DVR &
- Product category: Wireless Cameras Wireless Prime
- Brand: Wireless Prime
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wireless Prime Wireless Cameras
 |
User manual for the Wireless Prime 10" Touchscreen DVR & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wireless Prime product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wireless Prime user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wireless Prime product will considerably shorten its lifespan!
|
Product description - Wireless Prime Security System 1080P Customer Review
- Wireless Prime Security System Kit Unboxing
- Wireless Prime Security System Instructions (Motion Detection with Alarm)
- Wireless Prime Home Surveillance Review by Onourshelf

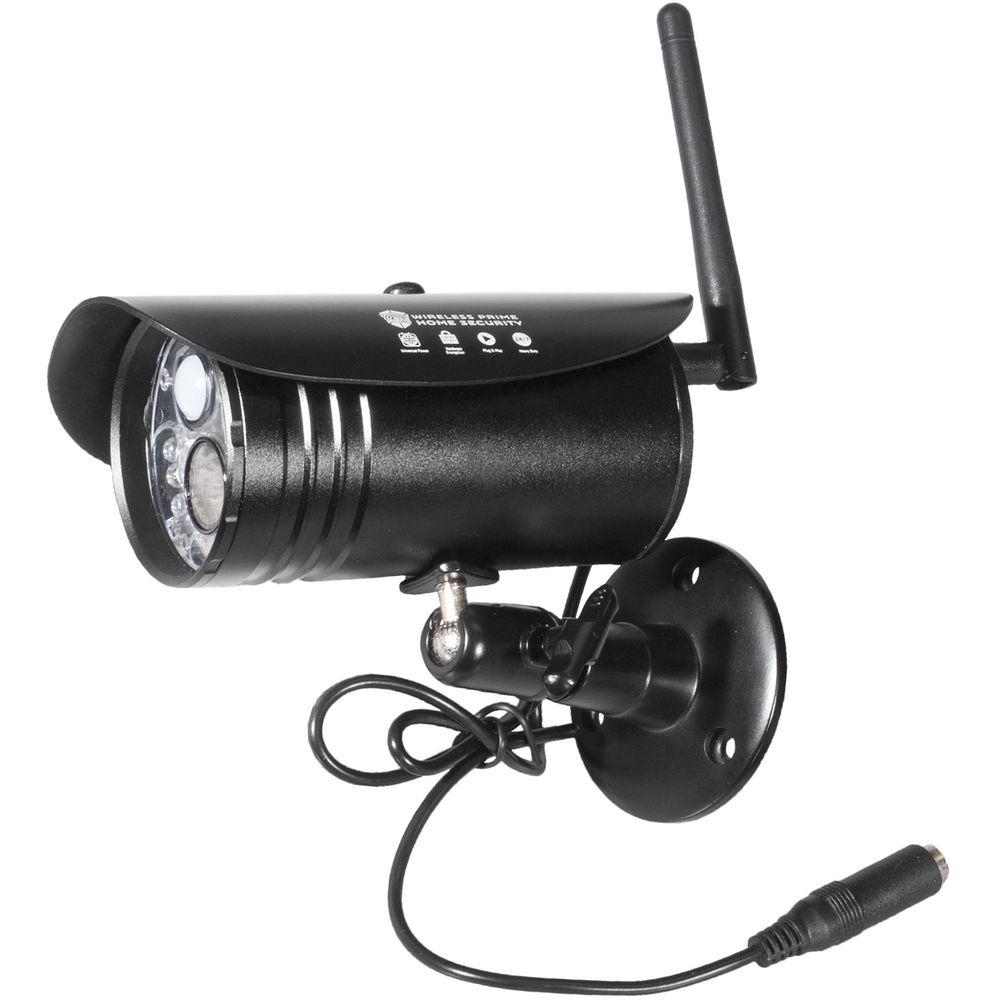

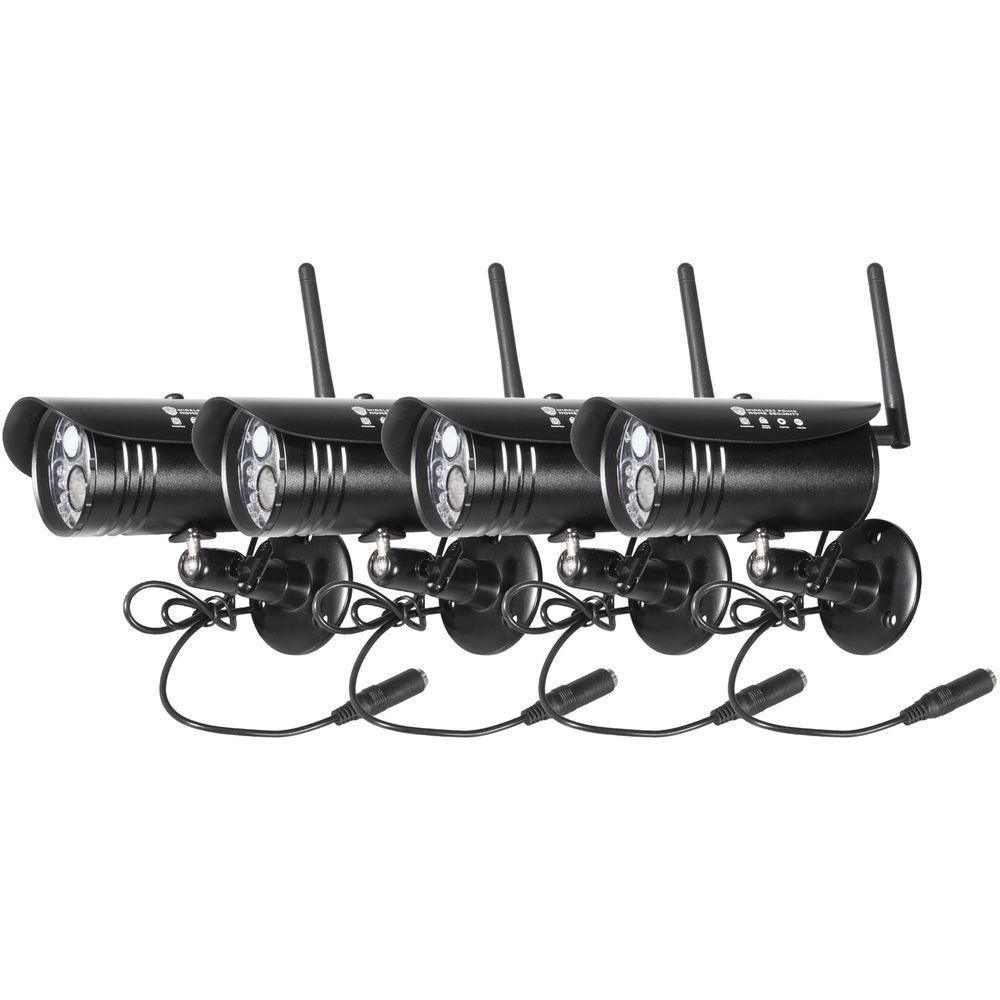

Monitor your home or business with the all-in-one 10" Touchscreen DVR & 4 1080p Wireless Cameras with Night Vision from Wireless Prime. This system comes with four 1080p bullet cameras with 1/2.7 CMOS image sensors to capture 1920 x 1080 resolution video at 25 fps. The cameras deliver up to 33' of night vision, an 85 ±5° horizontal field of view, and a wireless transmission range up to 984.3'. The cameras are each housed in an IP66-rated enclosure that is suitable for outdoor use.

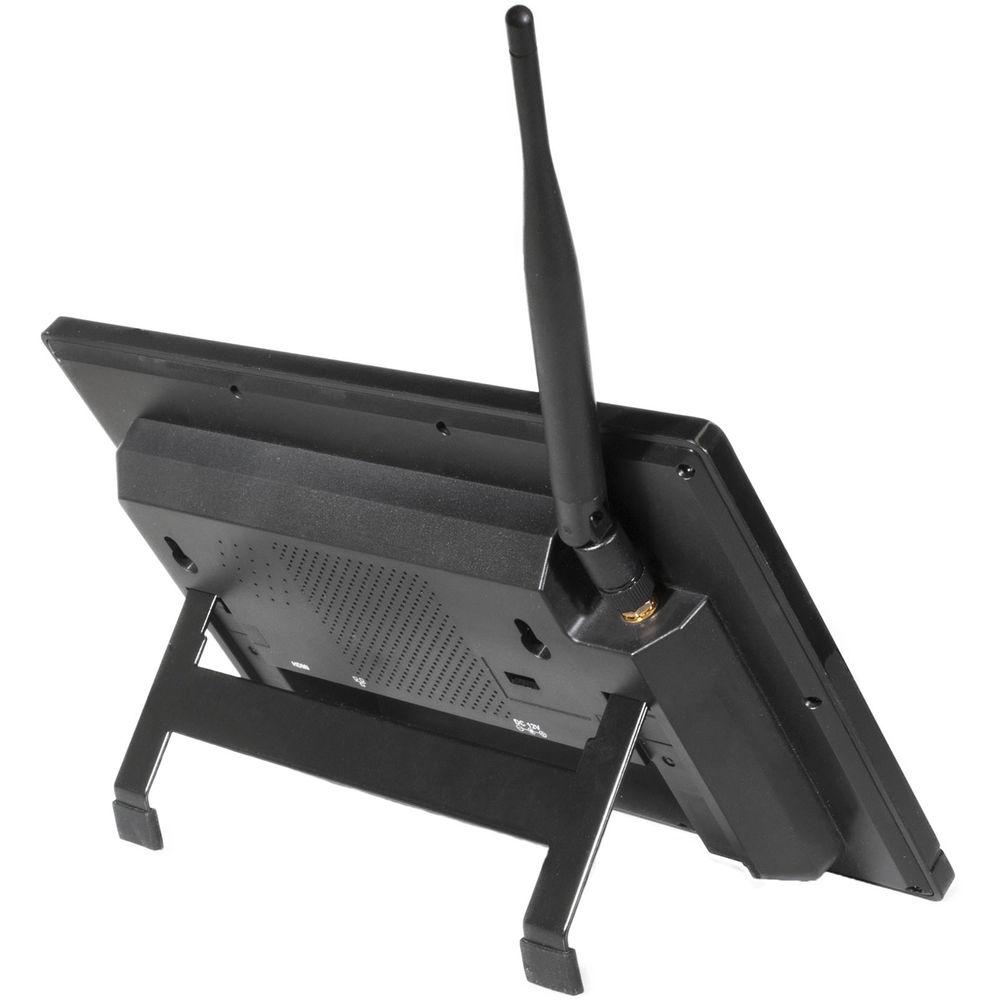

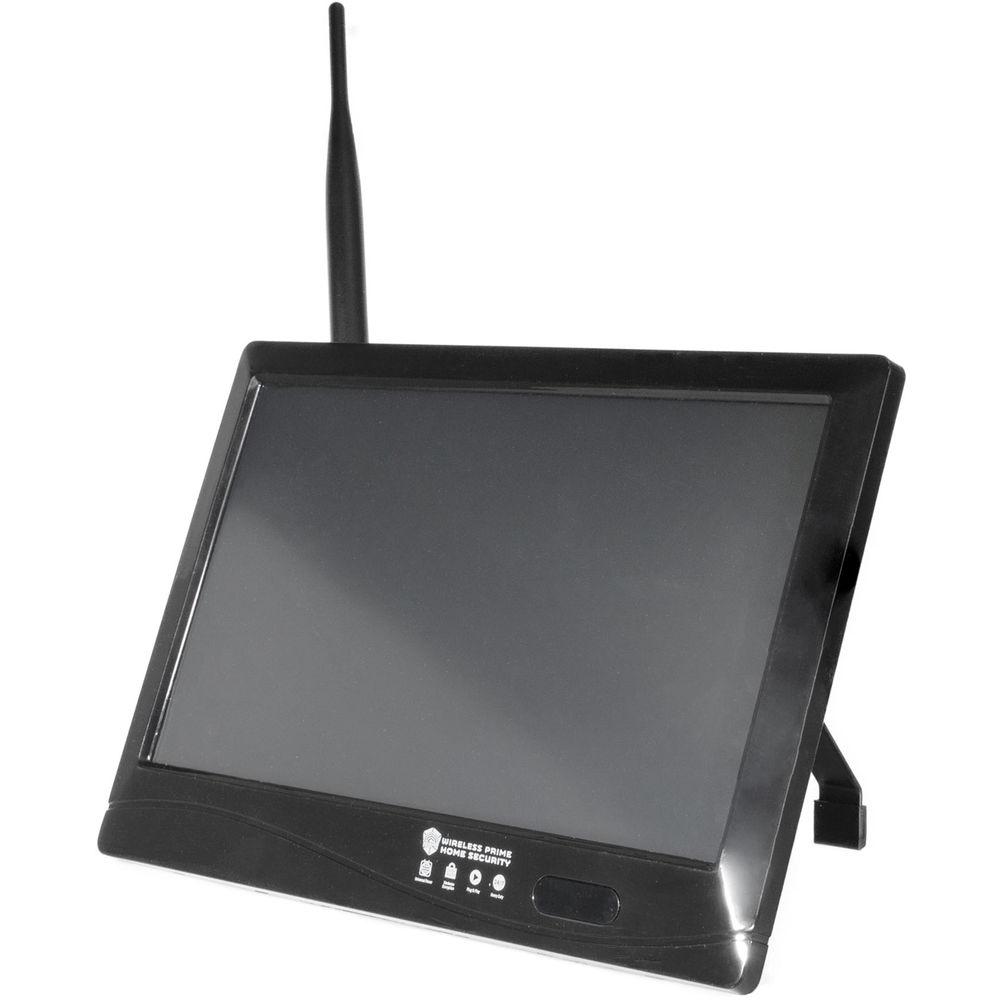

The included 10" TFT LCD touchscreen features an integrated video recorder when used in conjunction with an SD card or an external hard drive. The touchscreen's built-in SD slot supports cards up to 128GB, and supports external HDDs up to 3TB via USB 2.0. Both SD cards and external HDDs are available for purchase separately. The touchscreen is capable of remote view, so you can view your cameras at any time with iOS and Android devices. - Wireless system allows for a simple installation without video cables
- Recording modes include manual, schedule, and PIR activated
- Compatible with iOS & Android Devices
- Cameras are capable of 24/7 non-stop overwrite recording
- IP66-rated camera enclosures make them suitable for outdoor use

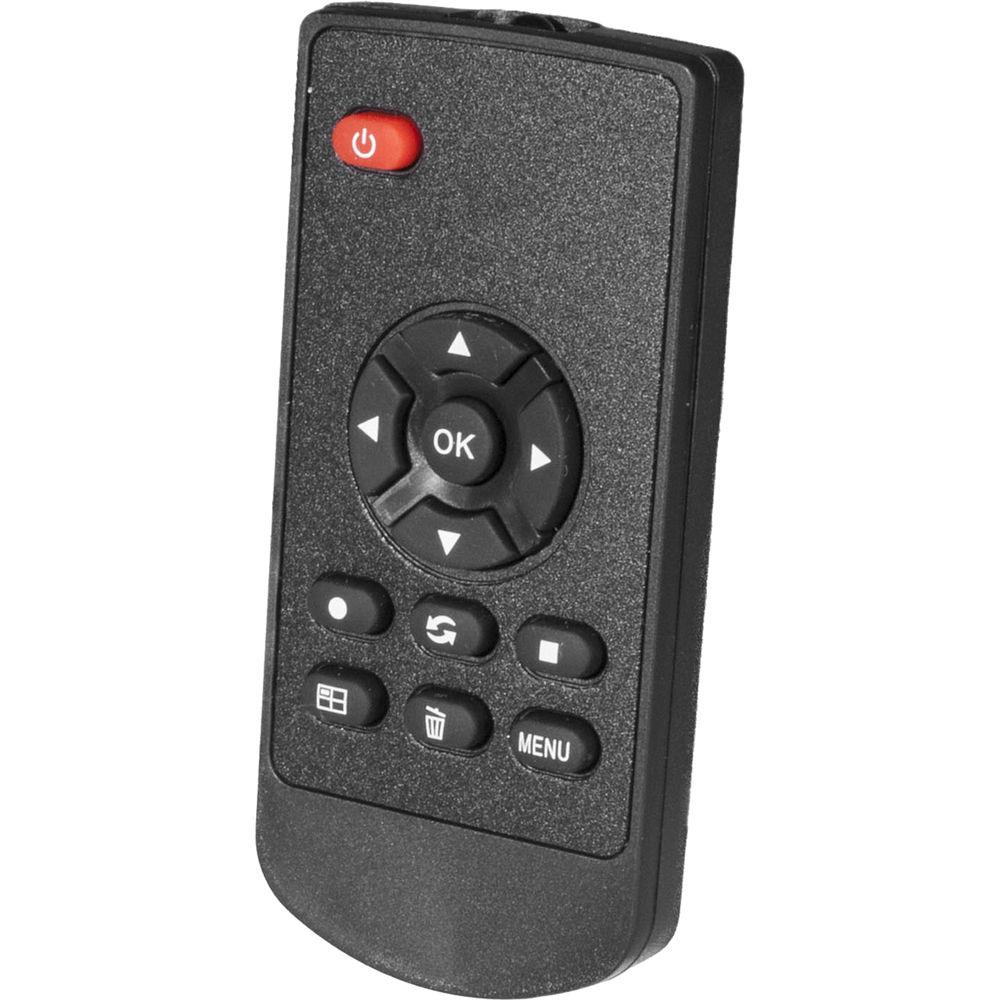

UPC: 612520356781 In the Box Wireless Prime 10" Touchscreen DVR & 4 1080p Wireless Cameras with Night Vision Receiver Power Adapter 4 x Camera Power Adapters Remote Control 16 x Wall Nails 16 x Screws Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wireless Prime 10" Touchscreen DVR & 4 1080p Wireless Cameras with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWireless Prime 5-401 Specs | | | Image Sensor | 1/2.7" CMOS | | Effective Pixels | 1080p (1920 x 1080) | | Frame Rate (fps) | 25 fps | | Horizontal Field of View (degree) | 85 ±5° | | Minimum Illumination | ≤3 lux | | Night Vision Range | 33' (10 m) | | IR Cut Filter | Yes | | Frequency Band | 2.4 GHz | | Modulation Method | 16-QAM | | Wireless Range | Up to 984.3' (300 m) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 15 to 85% | | IP Rating | IP66 | | Power Supply | 12 VDC / 1 A | | Dimensions (W x D x H) | 2.7 x 2.3 x 5.1" (69 x 59 x 130 mm) | | Weight | 8.4 oz (238 g) | | | | Screen | 10" TFT LCD | | Screen Resolution | 1024 x 600 | | Recording Modes | Manual
Schedule
PIR activated | | Storage Format | AVI | | Memory | Supports SD cards up to 128 GB | | HDD Capacity | Up to 3 TB | | Video Frame Rate | 30 fps (one channel)
15 fps (four channels) | | HDMI Video Output | Supported | | USB Output | USB 2.0 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 15 to 85% RH | | Power Supply | 12 VDC / 2 A | | Dimensions (W x D x H) | 10 x 1.5 x 7" (255 x 37 x 173 mm) | | Weight | 1.83 lb (832 g) | | | | Package Weight | 8.14 lb | | Box Dimensions (LxWxH) | 14.7 x 14.7 x 6.4" |
