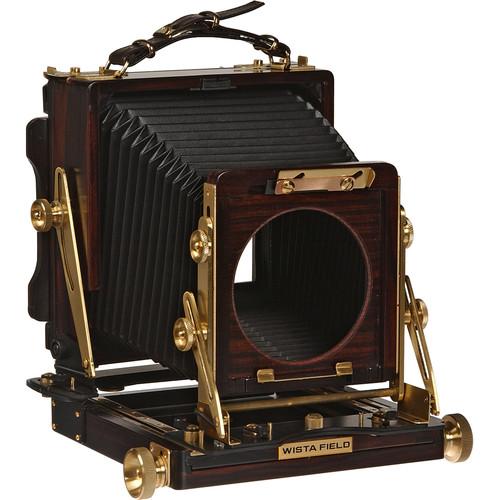

User Manual for Wista Field-45DX Field Camera Click to enlarge the picture
Contents of the user manual for the Wista Field-45DX Field Camera
- Product category: Large Format Cameras Wista
- Brand: Wista
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wista Large Format Cameras
|
User manual for the Wista Field-45DX Field Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wista product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wista user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wista product will considerably shorten its lifespan!
|
Product description The Wista Field-45DX Field Camera is a wooden large format 4 x 5" view camera that allows a wide range of camera movements within a lightweight, compact frame that is ideal for travel and outdoor photography. The body is constructed entirely from ebony to ensure resistance from warping while also maintaining an aesthetic appearance. The hardware is natural brass and the corners of the body are joined using tongue and groove joints to provide durability, strength, and rigidity.
While compact in nature, the 45DX allows for extensive camera movements including lateral rear shift as well as conventional field camera movements including back tilt and swing and full front standard control. The camera's design incorporates a recessed baseplate to permit folding and transporting the camera with a lens up to 150mm attached. The 12" leather bellows is fixed to the camera and permits the use of short focal length lenses, up to 65mm, without the need for a recessed lensboard.
The camera back, which is fitted with a Fresnel focusing screen, can be removed to rotate between horizontal and vertical shooting orientations and accepts traditional Graflok-style 4 x 5" holders. - Camera Movements
- Back:
- Tilt: 90° forward (to close); 18° backward
- Swing: 12° left and right
- Shift: 0.62" / 16mm side-to-side
Front:
- Rise: 1.41" / 36mm up
- Fall: 1.14" / 29mm down
- Tilt: 90° forward; 37° backward
- Swing: 15° left and right
- Camera Design
-
- The body is constructed from ebony with natural brass hardware for durability and rigidity as well as aesthetic appeal.
- Manually revolving back accepts Graflok-style 4 x 5" film holders and is fitted with a protective focusing glass and a Fresnel lens to improve brightness when composing.
- The front standard accepts common Wista/Linhof Technika type 96 x 99mm lensboards.
- Recessed camera plate allows for folding and traveling with a mounted lens with a focal length up to 150mm.
- Fixed leather bellows provides 12" / 30.5cm of extension and permits the use of short focal length lenses, up to 65mm, without the need for a recessed lensboard.
In the Box Wista Field-45DX Field Camera (Ebony) Fresnel Focusing Screen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wista Field-45DX Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWista Field-45DX Specs | Camera Type | 4 x 5" view camera | | Lensboard | 96 x 99mm Wista/Linhof Technika type | | Bellows Extension | 2-12" / 5.1-30.5 cm | | Dimensions | 7.3 x 8.3 x 3.8" / 18.5 x 21.2 x 9.6 cm (folded) | | Weight | 3.25 lb / 1.5 kg |
