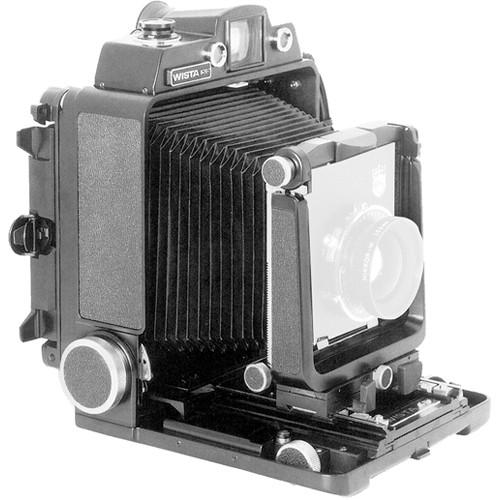

User Manual for Wista Technical 45RF Rangefinder 4x5 Metal Field Camera Click to enlarge the picture
Contents of the user manual for the Wista Technical 45RF Rangefinder 4x5 Metal
- Product category: Large Format Cameras Wista
- Brand: Wista
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wista Large Format Cameras
|
User manual for the Wista Technical 45RF Rangefinder 4x5 Metal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wista product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wista user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wista product will considerably shorten its lifespan!
|
Product description The Wista 45RF is a 4x5 rangefinder camera with a built-in viewfinder, and remains along with the Linhof Technika as the only currently-produced large format rangefinder field cameras with movements. Wista's collection of sophisticated metal field cameras (the VX, SP & RF) are designed for photographers wanting much more than just a simple field camera. Gargantuan values in specifications such as the maximum tilt or swing degree are of rather limited in use in the field, for in these regards nearly all cameras provide capacities exceeding both lens coverage and practical need. But in specifications of rather large importance-front rise/lateral shift, shortest/longest usable focal lengths, the combined capacity for large rear lens barrel diameters with a small lensboard, and fine control of movements, the metal Wistas succeed admirably. A whopping 56mm of front rise & 40mm of lateral shift is about the best one could hope for from a true field camera, and the Wista RF does so without an enormous lensboard which would consume considerable packing space. Wooden cameras are lighter, of course, but provide inferior rigidity when used with longer lenses. If you enjoy a 240mm or 300mm for use in landscape work, the weight is well spent. Upon the wide angle end of things, you're allowed a rear lens barrel diameter of 80mm. The 45RF has all the features of the VX and is also a rangefinder-coupled camera cammed to accommodate 135, 150 and 180mm lenses. The rangefinder cams are designed specifically for Nikon's Nikkor-W lenses, but the triple folding infinity stops can be easily adjusted to accurately use with other brands of 135, 150 & 180mm lenses provided their film-to-flange distance is very close to the Nikkors. The Wista features an international standard Graflok back, optional extension tracks and extra-long bellows for using telephoto lenses up to 500mm, as well as a sensational combination of bag bellows & dedicated lensboard for the easiest imaginable wideangle photography in a field camera. - Revolving back with detented clickstops every 90°
- Optional wideangle or long bellows and wideangle or extended focusing rails
- Opens and closes with a simple touch
- Integral viewfinder with bright framelines for 120mm, 135mm, 150mm & 180mm lenses
- Superior rigidity than wooden cameras at focal lengths beyond 210mm
In the Box Wista Technical 45RF Rangefinder 4x5 Metal Field Camera Replacement Graflok Back wxywbyrtq 4x5 Groundglass/Fresnel Combination Replacement Standard Bellows for 45SP, VX, RF and DXIII Cameras Protective Glass with Grid Lines 4x5 Folding Focusing Hood/Groundglass Cover 3 x Folding Infinity Stops for 135mm, 150mm & 180mm Lenses 1-Year Warranty Against Manufacturer Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Wista Technical 45RF Rangefinder 4x5 Metal Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWista Technical 45RF Specs | Tilts | Front: 15° forward & backward, geared
Rear: 90° forward & 18° backward | | Swings | Front & Rear: 15° left and right | | Rise & Fall | Front: 2.2" (56mm) geared rise only | | Shifts | Front Only: ±40mm left & right | | Camera Back | International standard 4x5 revolving Graflok
4x5 Fresnel focusing screen with glass gridline protective overlay | | Interchangeable Bellows | Yes | | Minimum Extension | 2" (51mm) | | Maximum Extension | 12" (300mm) (longer with optional tracks/bellows) | | Lensboard | Wista 96 x 99mm (Linhof Technika 45 type) | | Dimensions | 8.5 x 7.8 x 4.0" (21.5 x 19.7 x 10 cm) WxHxD | | Weight | 6.30 lbs (2.86 kg) | | | | Package Weight | 7.56 lb | | Box Dimensions (LxWxH) | 10.3 x 9.35 x 5.1" |
