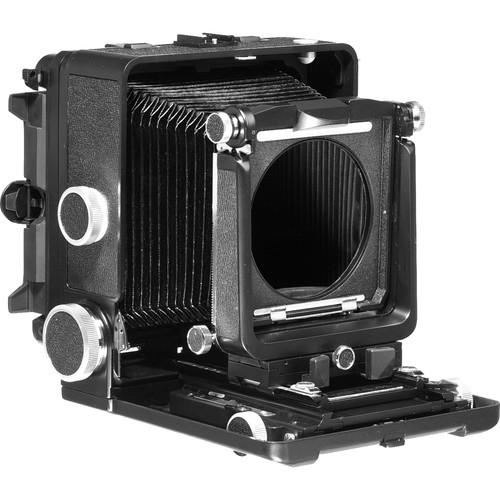

User Manual for Wista Technical 45SP 4x5 Metal Field Camera Click to enlarge the picture
Contents of the user manual for the Wista Technical 45SP 4x5 Metal Field
- Product category: Large Format Cameras Wista
- Brand: Wista
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wista Large Format Cameras
|
User manual for the Wista Technical 45SP 4x5 Metal Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wista product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wista user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wista product will considerably shorten its lifespan!
|
Product description The Wista 45SP is a 4x5 folding metal field camera with a revolving Graflok spring back, folding focusing hood and bright fresnel focusing screen. Wista's collection of sophisticated metal field cameras (the VX, SP & RF) are designed for photographers who want much more than just a simple field camera. Gargantuan values in specifications such as the maximum tilt or swing degree are of rather limited in use in the field, for in these regards nearly all cameras provide capacities exceeding both lens coverage and practical need. But in specifications of rather large importance-front rise/lateral shift, shortest/longest usable focal lengths and the combination of the largest permissible rear lens barrel diameter compared with the accompanying lensboard size-the metal Wistas succeed admirably. A whopping 56mm of front rise & 40mm of lateral shift is about the best one could hope for from a true field camera, and the Wista SP does so without an enormous lensboard which would consume considerable packing space. Wooden cameras are lighter, of course, but provide inferior rigidity when used with longer lenses. If you enjoy a 240mm or 300mm for use in landscape work, the weight is well spent. Upon the wide angle end of things, you're allowed a maximum rear lens barrel diameter of 80mm. The 45SP has the same features as the 45VX, plus microfocus back swing-which is useful in closeup photography as well as when using a wideangle lens to make quick changes in depth of field with exceptional control. Designed to simplify handling and use of the camera, the variable swing and tilt movements (both front and back) can be set quite easily. The compact size and tolerable weight of these cameras make them as easy to use in the field as in the studio. The 45SP accepts 4x5 holders, as well as a 5x7" back adapter and extension tracks and an extra-long bellows for telephoto work, using lenses up to 500mm. But the real star of the metal Wista's system is the dedicated combination of the #214544 lensboard with the #224541 wide angle bellows. Well suited to lenses from 90mm and shorter, it achieves two aims brilliantly-it gets the front standard out from within the body cavity of the camera when composing, and separates the bag bellows from rise & tilt controls. The lensboard is mounted onto the rear of the front standard, and the bag bellows is screwed into the rear of the lensboard-providing clearance and a whoppping 40mm recession. - Compact, diecast aluminum alloy folding 4x5 technical field camera
- Fully revolving back with 90° click stops, fresnel focusing screen & folding focus hood
- Interchangeable bellows/extension tracks
- Opens and closes with one simple touch
- Micro-fine precision rear swing movement
- Superior rigidity with longer lenses than wooden cameras
In the Box Wista Technical 45SP 4x5 Metal Field Camera Replacement Graflok Back cbyqwvzacwastufwcvbzrvdzwd Replacement Standard Bellows for 45SP, VX, RF and DXIII Cameras 4x5 Groundglass/Fresnel Combination Protective Glass with Grid Lines 4x5 Folding Focusing Hood/Groundglass Cover 1-Year Warranty Against Manufacturer Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Wista Technical 45SP 4x5 Metal Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWista Technical 45SP Specs | Tilts | Front: ±15° (lens axis, geared movement)
Rear: 90° forward & 18° backward (base axis, ungeared movement) | | Swings | ±15° (both standards) | | Rise & Fall | Front: 2.2" (56mm) rise (geared movement)
(50mm fall via dropping bed + rear tilt to front standard) | | Shifts | °40mm (front standard only) | | Camera Back | International standard 4x5 revolving Graflok
4x5 Fresnel focusing screen with glass gridline protective overlay | | Interchangeable Bellows | Yes | | Minimum Extension | 2.0" (51mm) | | Maximum Extension | 12.0" (300mm)
(longer with optional tracks/bellows) | | Lensboard | Wista 96 x 99mm (Linhof Technika-type) | | Dimensions | 7.1 x 7.8 x 4.1" (18.0 x 19.7 x 10.5 cm) WxHxD | | Weight | 6.30 lbs (2.86 kg) | | | | Package Weight | 7.26 lb | | Box Dimensions (LxWxH) | 10.5 x 9.5 x 5.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Wista Technical 45SP 4x5 Metal Field Camera
| Subject: About wista SP 4x5 sliding back (6x9) | | Date: 14.08.2025 15:44:47 | Name: Leif Jørgensen | | I have a Wista SP an I got my sliding back 6x9 to day. But I can not figure out how I shall fit it to the camera. It looks like I need axes to the revolving back. .... anny ideas?? Leifj | | Post reply |
