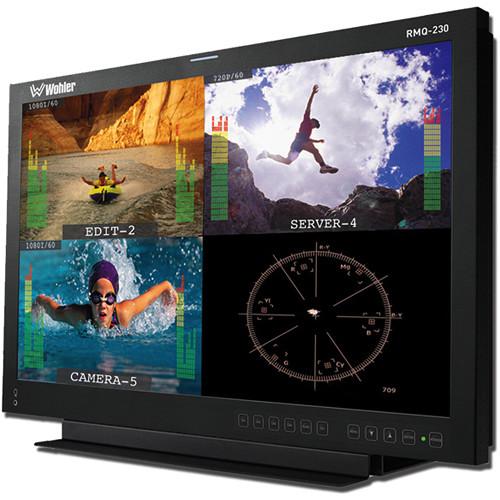

Product description The 20" LCD Video Monitor from Wohler supports advanced 10-bit digital processing technology. The monitor features 3D comb filter, de-interlace, accurate scaling engine, Gamma correction and color temperature adjustment. It can be configured as a quad-split display of four equal areas, as a large screen with three smaller views, or as a single large display screen. It is suitable for use in news and transmission control rooms, program production, channel branding, and any environment that requires intensive monitoring.The RMQ monitor accepts up to 4 channels of 3G/HD/SD-SDI/CVBS signals (3G models) and one HDMI/DVI input selectable for channel 1. Each individual display supports waveform, vectorscope, audio de-embedding, and metering of up to 16 channels, UMD, format display, and various markers. - Simultaneously monitor up to four display screens, each with independent controls and in-screen audio level meters, vectorscope and waveform
- User-defined hot key functionality for either H/V delay, underscan, on-screen display, and more
- On-screen level meters provide audio confidence monitoring
- Tally and on-screen labeling provide quick and easy signal identification
- CRT-style image controls allow video image enhancement for each screen individually
- Supports multi-format analog and digital audio signals
- Allows adjustment of the parameters for each screen
- Provides high-quality waveform or vector monitoring (for channel 1 & channel 3 in Quad view)
- Supports HDMI output duplicate of screen configuration
- User-adjustable color temperatures with presets
In the Box Wohler 20" LCD Video Monitor with 4 Auto-Sensing Inputs and Rackmount AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler 20" LCD Video Monitor with 4 Auto-Sensing Inputs and Rackmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler RMQ-200-3G4-RM Specs | Signal System | Not Specified by Manufacturer | | Monitor Type | Active color matrix amorphous LCD TFT with LED Backlight | | Screen Size | 20" (51 cm) diagonal | | Resolution | H x V: 1920 x 1080 | | Aspect Ratio | 16:9 | | Display Colors | 16.7 million | | Viewing Angle | 178° x 178° | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Pixel Pitch | 0.226 x 0.219 mm | | Response Time | Not Specified by Manufacturer | | Inputs | 4 x BNC: CVBS, 3G/HD/SD-SDI (supports embedded audio)
1 x DVI -D / HDMI: alternate IN1
Audio: 2 to 16 OSD meters, 16 channels SDI, 2 pairs analog
Select any embedded or analog pair to send to the speakers, headphones, and line out per menu for each video input | | Signal Formats | 1080p50, 1080p60/59.94, 720p24/23.97, 720p25, 720p30/29.97, 720p50, 720p60/59.94, 1080sf24/23.97, 1035i60/59.94, 1080i50, 1080i60/59.94, 1080p24/23.97, 1080p25, 1080p30/29.97, 480i60/59.94, 576i50, 480p60/59.94, 576p50
HDMI Only: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1400 x 1050, 1440 x 900, 1360 x 768, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 (HDCP not supported) | | Operating Temperature | Not Specified by Manufacturer | | Power Requirements | AC power adapter connects to mains power (100 to 240 VAC ± 10%, 50/60 Hz) | | Power Consumption | 50 W | | Dimensions (WxHxD) | 19 x 10.5 x 1.8" (48 x 27 x 4.5 cm) | | Weight | 14 lb (6.4 kg) |
