User Manual for Wohler 20" LCD Video Monitor with 4 Auto-Sensing Inputs and Tabletop Mount Click to enlarge the picture
Contents of the user manual for the Wohler 20" LCD Video Monitor with
- Product category: Production Monitors Wohler
- Brand: Wohler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Wohler Production Monitors
|
User manual for the Wohler 20" LCD Video Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Wohler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Wohler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Wohler product will considerably shorten its lifespan!
|

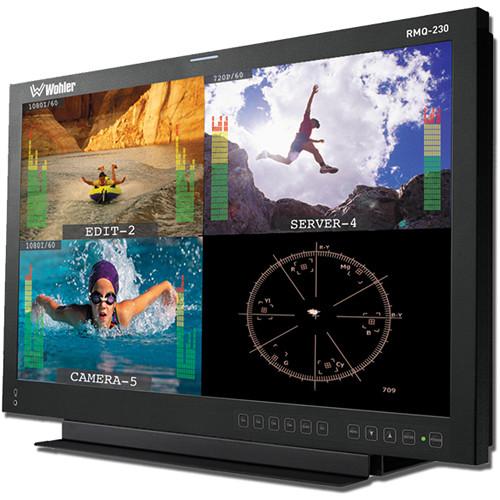

Product description The 20" LCD Video Monitor from Wohler supports advanced 10-bit digital processing technology. The monitor features 3D comb filter, de-interlace, accurate scaling engine, Gamma correction and color temperature adjustment. It can be configured as a quad split display of four equal areas, as a large screen with three smaller views, or as a single large display screen. It is suitable for use in news and transmission control rooms, program production, channel branding, and any environment that requires intensive monitoring.The RMQ monitor accepts up to 4 channels of 3G/HD/SD-SDI/CVBS signals (3G models) and one HDMI/DVI input selectable for channel 1. Each individual display supports waveform, vectorscope, audio de-embedding, and metering of up to 16 channels, UMD, format display, and various markers. - Simultaneously monitor up to four display screens, each with independent controls and in-screen audio level meters, vectorscope and waveform
- User-defined hot key functionality for either H/V delay, underscan, on-screen display, and more
- On-screen level meters provide audio confidence monitoring
- Tally and on-screen labeling provide quick and easy signal identification
- CRT-style image controls allow video image enhancement for each screen individually
- Supports multi-format analog and digital audio signals
- Allows adjustment of the parameters for each screen
- Provides high-quality waveform or vector monitoring (for channel 1 & channel 3 in Quad view)
- Supports HDMI output duplicate of screen configuration
- User-adjustable color temperatures with presets
In the Box Wohler 20" LCD Video Monitor with 4 Auto-Sensing Inputs and Tabletop Mount AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Wohler 20" LCD Video Monitor with 4 Auto-Sensing Inputs and Tabletop Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWohler RMQ-200-3G4-TT Specs | Signal System | Not Specified by Manufacturer | | Monitor Type | Active color matrix amorphous LCD TFT with LED Backlight | | Screen Size | 20" (51 cm) diagonal | | Resolution | H x V: 1920 x 1080 | | Aspect Ratio | 16:9 | | Display Colors | 16.7 million | | Viewing Angle | 178° x 178° | | Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Pixel Pitch | 0.226 x 0.219 mm | | Inputs/Outputs | 1 x HDMI In/Out
4 x 3G/HD/SD-SDI/CVBS In/Out
Audio: 2 to 16 OSD meters, 16 channels SDI, 2 pairs analog
Select any embedded or analog pair to send to the speakers, headphones, and line out per menu for each video input | | Signal Formats | Input
1080P50, 1080p 60/59.94, 720p 24/23.97, 720p 25, 720p 30/29.97, 720p 50, 720p 60/59.94, 1080SF24/23.97, 1035i60/59.94, 1080i50, 1080i60/59.94, 1080p 24/23.97, 1080p 25, 1080p 30/29.97, 480i60/59.94, 576i50, 480p 60/59.94, 576p 50
HDMI Only: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1400 x 1050, 1440 x 900, 1360 x 768, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 (HDCP not supported) | | Remote Control | Not Specified by Manufacturer | | Operating Temperature | Not Specified by Manufacturer | | Power Requirements | AC power adapter connects to mains power (100 to 240 VAC ± 10%, 50/60 Hz) | | Power Consumption | 50 W | | Dimensions (WxHxD) | 19 x 10.5 x 1.8" (48 x 27 x 4.5 cm) | | Weight | 14 lb (6.4 kg) |
